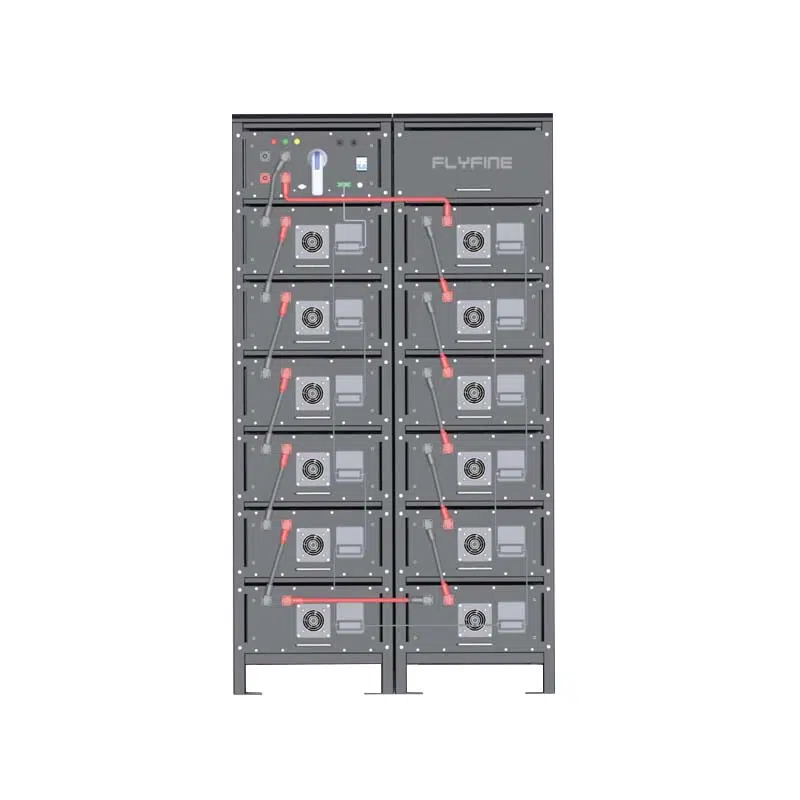

Lithium-Ion Battery Cluster 100~215kwh

(0 reviews)

(384) Views

(0) Contacts

A battery cluster is made up of multiple cells packaged in series and parallel to form a battery module. Different battery modules are then connected in the same way to form a whole, creating a large-capacity energy storage battery and a high-voltage output of the battery cluster.

Contact Company

Flyfine Digital Energy Co., Ltd

Guangdong, China

(1610) Views

(12) Contacts

PERFORMANCE SPECIFICATIONS
Model	FBC-107520	FBC-125440	FBC-143360	FBC-161280	FBC-179200	FBC-197120	FBC-215040
Nominal Voltage(V)	384V	448V	512V	576V	640V	704V	768V
Cell model/ Configuration	3.2V280Ah (EVE)/120S1P	3.2V280Ah (EVE)/140S1P	3.2V280Ah (EVE)/160S1P	3.2V280Ah (EVE)/180S1P	3.2V280Ah (EVE)/200S1P	3.2V280Ah (EVE)/220S1P	3.2V280Ah (EVE)/240S1P
Rated Energy (Kwh)	107.52Kwh	125.44Kwh	143.36Kwh	161.28Kwh	179.2Kwh	197.12Kwh	215.04Kwh
Weight (Approx)(kg)	820kg	960kg	1080kg	1200kg	1350kg	1500kg	1650kg
Dimension(W/D/H) (mm)	1992950550mm	2250950550mm	14759501100mm	14759501100mm	17329501100mm	17329501100mm	19929501100mm
Voltage Range (Vdc)	350-425V	410-495V	470-560V	520-640V	580-710V	640-770V	640-770V

                                                            Capacity (Ah)
                                                            280AH

                                                            Humidity
                                                            ≤95%(Non-condensing)

                                                            Max.Charge/Discharge Current(A)
                                                            140A /140A

                                                            Altitude(m)
                                                            ≤2000

                                                            Maximum number of parallel connections
                                                            Up to 10 parallel

                                                            Operating Temperature(℃)
                                                            Charge:-10°C~50C;Discharge:-20°C~50°C

                                                            Communication
                                                            RS485(B)-BAT RS485(A)-PCCanbus-Inverter

                                                            Protection
                                                            BMS, Breaker

                                                            Cycle Life
                                                            ≥6500 cycles@25℃,90%DOD,60%EOL

                                                            Design Life
                                                            ≥15 Years(25°C )

Applications of Energy Storage Battery Cluster

The battery cluster can also be customized to suit the voltage and storage capacity of different electricity scenes, such as those found in factories, shopping malls, farms, and cold storage facilities, among other small and medium-sized buildings.

Characteristics of 100~215kwh Lithium-Ion Battery Cluster

The battery is modular in design, allowing the capacity of the battery cluster to be easily increased, with a maximum extension capacity of 215 kWh.
Each battery has its own cooling fan, which not only reduces the temperature of the storm but also enhances energy conversion efficiency.
The double-layer BMS system protection mechanism ensures that each battery's voltage and current values remain within the safe range.
The battery module connection uses an advanced Amphenol terminal, which fulfils the output processing of high voltage and high current while also ensuring that the connection port is tight.
