Stack Mount Battery LY-5A Series

(0 reviews)

(368) Views

(0) Contacts

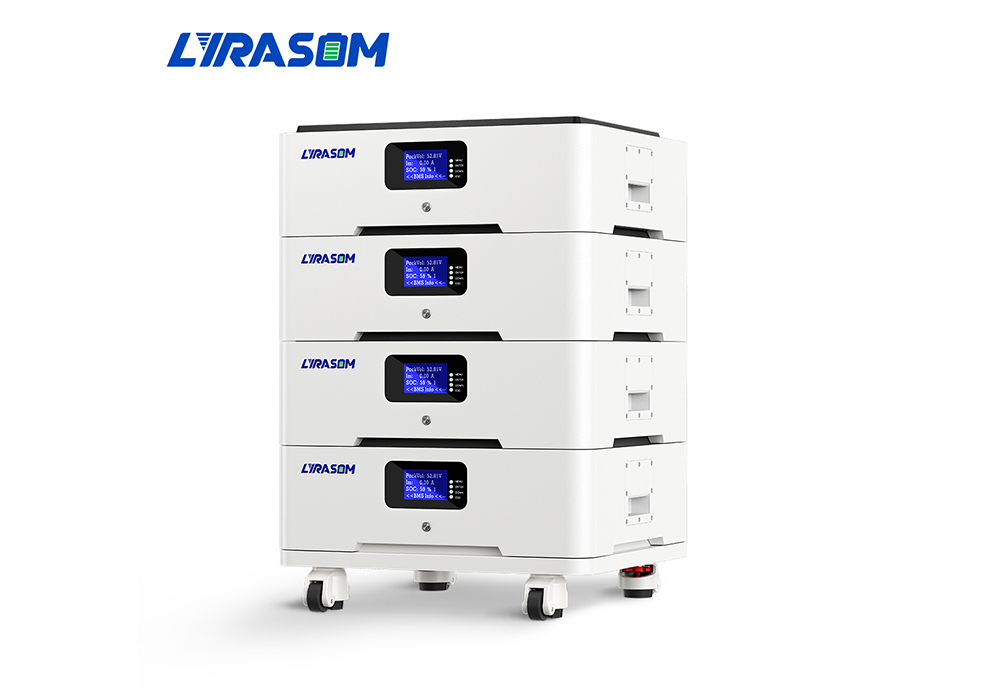

These are 48V/51.2V Stackable Modular Batteries. Ten KWH, twenty KWH, thirty KWH, forty KWH, and fifty KWH LiFePO4 Solar Home Energy Storage Batteries. Use automobile-grade an assembly method comparable to that of a cell or car. Allow for unrestricted expansion and support parallel systems. To extend the battery's cycle life, support multiple battery input.

Contact Company

Huizhou Liyuan New Energy Co., Ltd.

Guangdong, China

(1338) Views

(0) Contacts

Specifications Of LY-5A Series Stack Mount Battery

Product Model		LY-5A1	LY-5A2	LY-5A3	LY-5A4
Nominal Capacity		100AH	200AH	300AH	400AH
Nominal Power		5.12KWH	10.24KWH	15.36KWH	20.48KWH
Max Charge Current	Recommend	10A	20A	30A	40A
Max Charge Current	Maximum	20A	40A	60A	80A
Max Charge Current	Recommend	50A	100A	150A	200A
	Maximum	100A	200A	300A	400A
	Peak Value@15S	110A	210A	310A	410A
Dimensions(mm)		528590296	528590492	528590688	528590884
Weight		65KG	130KG	195KG	260KG

                                                            Humility
                                                            5%-95%

                                                            Protection Level
                                                            IP54

                                                            Charge Cut-off Voltage
                                                            58.4V

                                                            Shell Material
                                                            Matel

                                                            Communication Interface
                                                            485. 232. CAN

                                                            Discharge Cut-off Voltage
                                                            43.2V

                                                            Cycle Life
                                                            >6000 cycles

                                                            Monthly Self-discharge
                                                            ≤3%

                                                            Charge Temperature
                                                            0°C-60°C

                                                            Discharge Temperature
                                                            -20°C-60°C

                                                            Cell Type
                                                            LifePO4

                                                            Nominal Voltage
                                                            51.2V

Applications for Stack Mount Batteries in the LY-5A Series:

Electricity for homes.
Communities with either no electricity or insufficient electricity.
Upscale homes or clubhouses.
Users in the commercial and industrial sectors.

Stack Mount Battery's characteristics include:

Free of upkeep. For simple installation and capacity growth, use a modular architecture.
Extended life: over 6000 cycles
Built-in intelligent BMS with several communication and security features.
Broad operating temperature range and excellent dependability.
It is possible to link many battery packs in parallel for various energy storage applications.
Suitable with a range of inverters and charge controllers.
Extensively utilized for central data centres, telecom backup, off-grid solar energy storage, etc.
