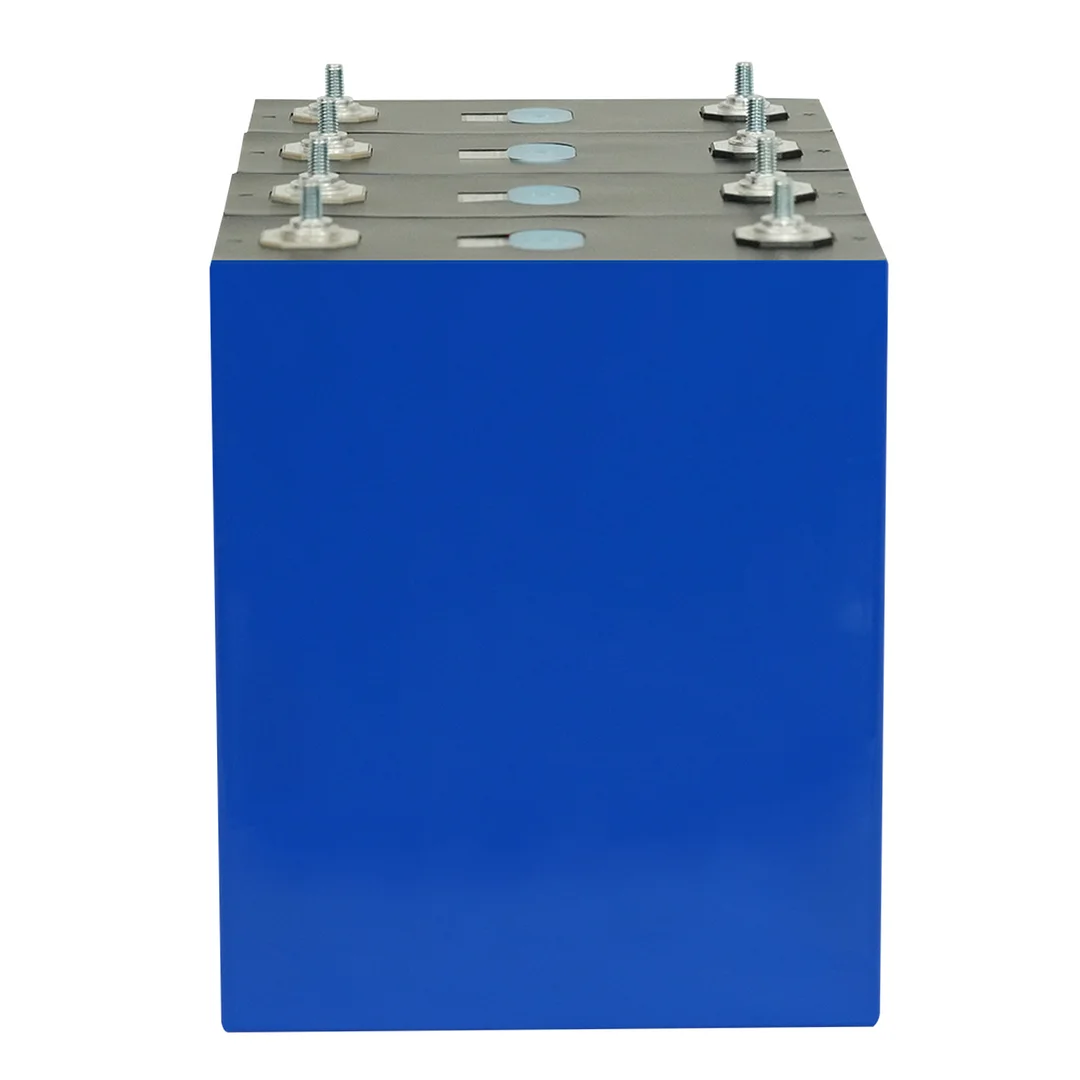

NEW-EVE LF280K LiFePO4 Battery Cell

OFF - 130 $

NEW-EVE LF280K LiFePO4 Battery Cell

(0 reviews)

699 USD - 569 USD

(417) Views

(0) Contacts

$659.00/1 Piece

Contact Company

SOEC Energy Co., Ltd.

Guangdong, China

(1610) Views

(2) Contacts

NOTE!
1. One cell will include two screw caps, two shims, and one busbar for free. (For example, four pieces of cells will arrive with four busbars, eight screw caps, and eight shims.)
2. Every cell must be employed under the BMS's rigorous supervision, guidance, and protection.
3. Always charge the cells to full voltage before using them for the first time.
4. Prior to delivery, we will match every cell in terms of capacity, voltage, and resistance.
5. Experienced do-it-yourselfers can use the battery.

                                                            Battery brand
                                                            EVE

                                                            Battery model
                                                            LF280K

                                                            Chemistry
                                                            Lithium Iron Phosphate(LiFePO4 or LFP)

                                                            Nominal voltage
                                                            3.2V

                                                            Operational voltage
                                                            2.5 V – 3.65 V

                                                            Nominal capacity
                                                            280Ah

                                                            AC impedance resistance
                                                            ≤0.25mΩ

                                                            Weight
                                                            5.49±0.3kg

                                                            Dimensions (mm)
                                                            207.5*72*173.7±0.5

                                                            Terminal
                                                            M6

                                                            Cycle life
                                                            ≥6000 cycles (0.5C/0.5C,  25±2℃, SOC≥80%)

                                                            Standard charge/discharge current
                                                            0.5C/0.5C

                                                            Standard charge/discharge cut-off Voltage
                                                            3.65V/2.5V

                                                            Max Continuous charge/discharge current
                                                            1C/1C

                                                            Max Pulse charge/discharge current(60s)
                                                            2C/2C

                                                            Recommended SOC window
                                                            10%～90%

                                                            Residual Capacity loss
                                                            Per month≤3.0%

                                                            Charging temperature
                                                            0℃~60℃

                                                            Discharging temperature
                                                            -30℃~60℃
