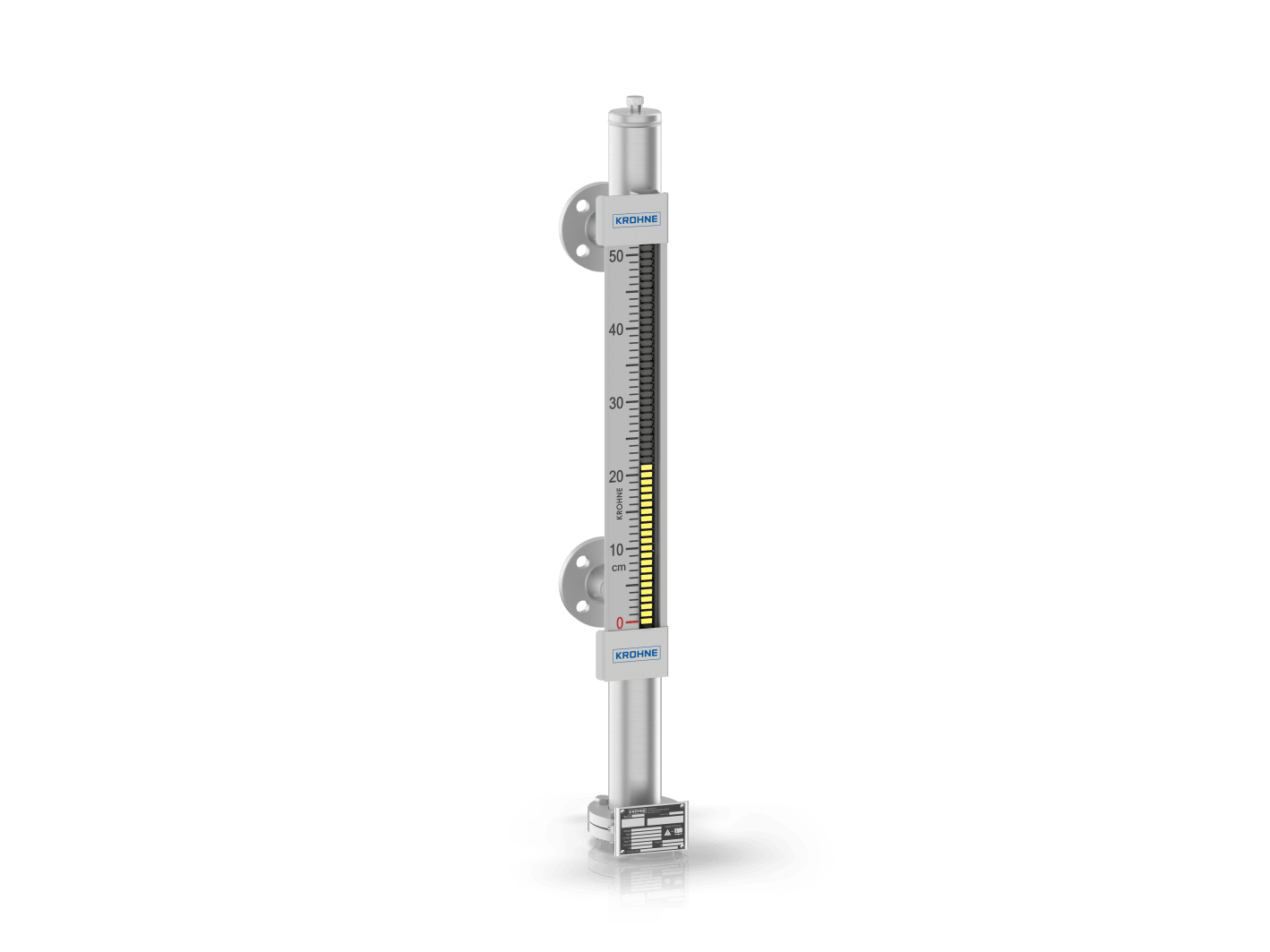

KROHNE BM26 Magnetic Level Indicator
(0 reviews)
Get Price
(257) Views
(0) Contacts


Contact Company





Pioneer Dalian Automation Instrument Co.,Ltd
Liaoning, China
(230) Views
(1) Contacts

The BM26A-1000 magnetic level indicator (MLI) is designed for basic liquid applications. This low-cost level indicator is ideal for continuous level measurement in water storage tanks, condensate receiver tanks, and wash and surge tanks for fuels, lubricants, additives, and related chemicals. The sturdy metallic level indicator with magnetic flaps enclosed in an IP68 certified, hermetically sealed glass tube. It provides a clear indicator of the local level. There is no requirement for a power supply. MLI, on the other hand, can be simply equipped with optional reed switches or a reed-chain level transmitter delivering analogue or digital output signals in applications requiring more advanced signal output requirements.

Type Level indicator
Accuracy (liquids) ±10 mm/ 0.39 in (optional: ±5 mm / 0.2 in with LT40)
Analogue outputs 4…20 mA
Discrete outputs Limit switches
Digital outputs FOUNDATION™ fieldbus, HART®, Profibus-PA
Family name BM
Positioning For basic liquid applications
Measurement principle Float in bypass
Level measurement type Continuous measurement
Contact to measured medium Yes
Interface measurement No
Redundancy No
Measured media Liquids
Measuring range (liquids) 0.3…5.5 m/ 1...18 ft (other on request)
Certificates/Approvals Ex ATEX, IECEx
Ingress protection IP68
Certificates/Approvals Others NACE, PED/EN 13445
Flange connections EN (1092-1): DN15…50 ASME (B 16.5): ½...2″
Weld-in connections ½", ¾"
Gaskets Material Aramid, Graphite, Polytetrafluoroethylene (PTFE)
Wetted parts Material Austenitic stainless steel (1.4404/316L), Titanium
Thread connections Male: G½, G¾ ½ NPT, ¾ NPT
Process pressure -1…40 barg/ -14.5…580 psig
Process temperature -70…+200°C/ -94…+392°F

The following features and settings are dependent on the device configuration: Please contact us to ensure that your desired functionality can be incorporated in a single device.

  1. The best price-to-performance ratio.
  2. A tough metallic design.
  3. Simple to install, safe, and requires no commissioning.
  4. Flaps are contained within a hermetically sealed glass tube (IP68).
  5. The highly visible level indicator operates without a power supply.
  6. Plexiglas® anti-icing indicator is optional.
  7. Optional reed switches (3-wire, NAMUR) or reed-chain level transmitter (4...20 mA/HART®7, FF, PA output) are available.
