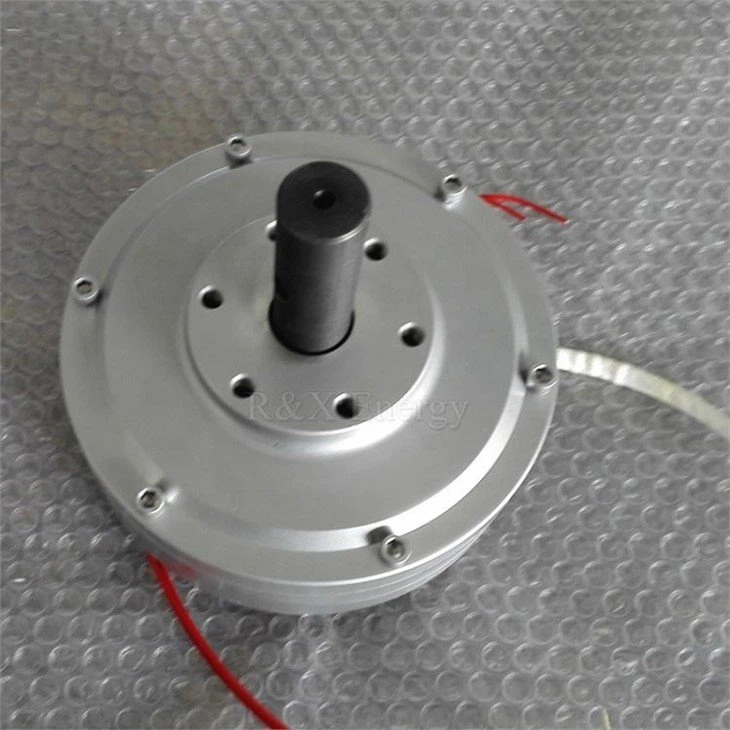

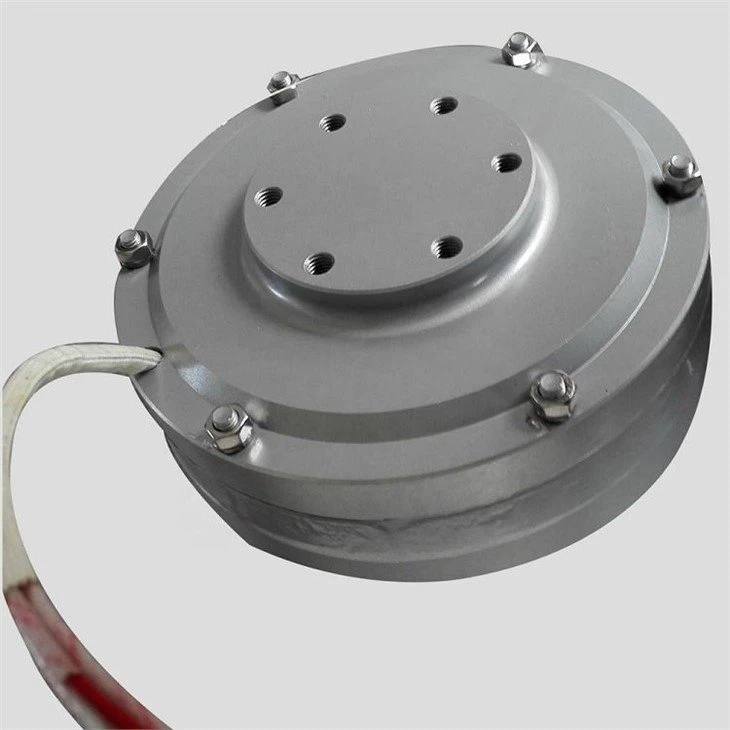

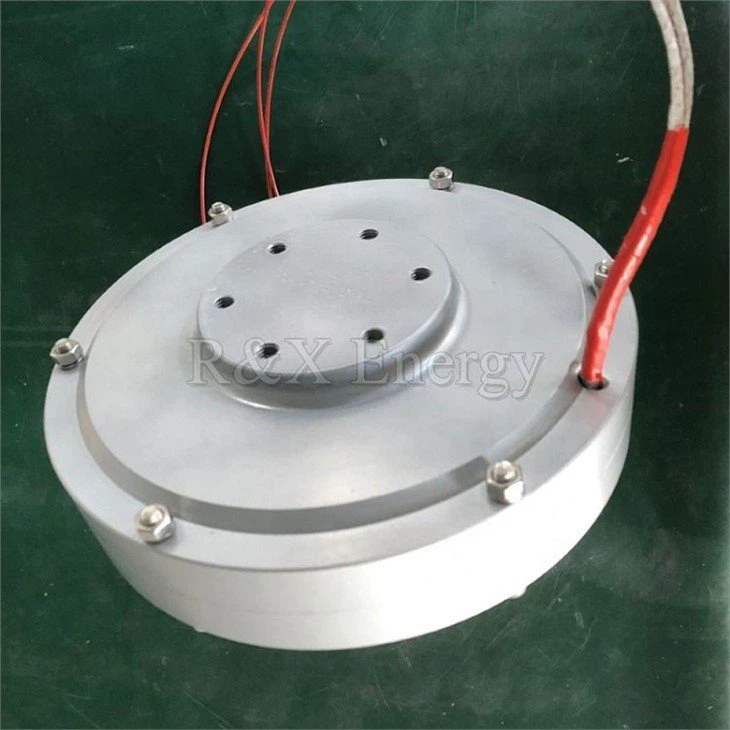

200W Permanent Magnet Generators

(0 reviews)

Get Price

(136) Views

(0) Contacts

Contact Company

Nantong R&X Energy Technology Co.,Ltd.

Jiangsu, China

(381) Views

(1) Contacts

                                                            Rated Power
                                                            200W

                                                            Rated RPM
                                                            300

                                                            Rated Voltage
                                                            24V

                                                            Note
                                                            We can customize any voltage and any rpm according to customers' requirement

                                                            Rated Current
                                                            14.4A

                                                            Shaft Material
                                                            Steel

                                                            Efficiency
                                                            >95%

                                                            Winding type
                                                            Y

                                                            Insulation Resistance
                                                            100Mohm Min(500V DC)

                                                            Leakage level
                                                            <5 ma

                                                            Start torque
                                                            <0.1NM

                                                            Phase
                                                            Three Phase

                                                            Structure
                                                            Inner rotor

                                                            Stator
                                                            Coreless

                                                            Rotor
                                                            Permanent magnet type (outer rotor)

                                                            Gen.
                                                            Diameter	210mm

                                                            Gen. Length
                                                            114mm

                                                            Gen. Weight
                                                            7.5kg

                                                            Shaft. Diameter
                                                            30mm

                                                            Housing Material
                                                            Aluminum ( Alloy )

Characteristics OF Permanent Magnet Generators
Coreless Axial Flux Permanent Magnet Generator for VAWT Inner Rotor 200W 300RPM 12V 24V.

The beginning torque is minimal for coreless, anhysteresis, and slotless components.
With no iron loss and good effectiveness.
adopting special coreless winding technique to create precision coils.
Use a permanent magnet made of rare earth, which has a large mean gap, a high power density, and a high output power.
Direct driving at low speeds with constant torque.
High power-to-volume ratio, compact construction.
Low calorific value, little temperature increase, and no iron loss.
Simple design; simple to install.
Brushless construction requires no maintenance.
Applications for gasoline generators, vertical axis wind turbines, and hydroelectric generators

The advantages of our disc coreless PMG are

Low rated speed
Low starting wind speed
Small capacity
Energy Small
Lightweight
Compact
Very effective are some examples.
