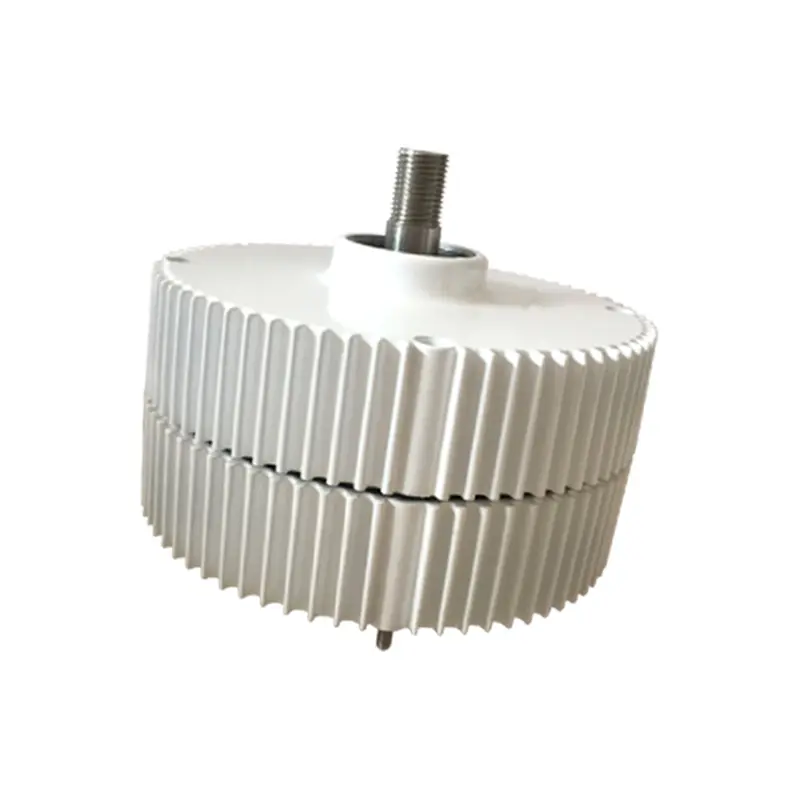

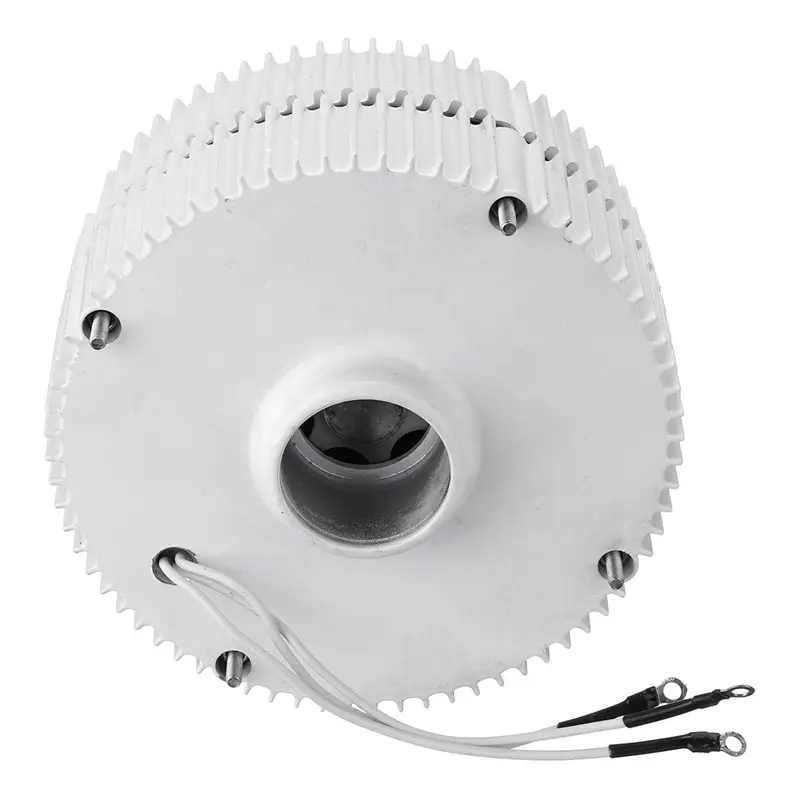

Permanent Magnet Generators 300w 400w 12v 24v 48v For Wind Turbine

(0 reviews)

Get Price

(439) Views

(0) Contacts

Contact Company

Wuxi Flyt New Energy Technology Co., Ltd.

Jiangsu, China

(1608) Views

(6) Contacts

                                                            Model
                                                            G-400M

                                                            Rated Power(w)
                                                            400w

                                                            Max Power(w)
                                                            420w

                                                            Rated VoltagE(v)
                                                            24v

                                                            Rated rotated speed(r/m)
                                                            650r/m

                                                            Top net weight(kg)
                                                            3.5kg

                                                            Output Current
                                                            AC

                                                            Generator
                                                            3 phase permanent magnet synchronous generator

                                                            Insulation Class
                                                            F

                                                            Service Life
                                                            More Than 20 years

                                                            Start Torque(<N*M)
                                                            0.4Nm

                                                            Working temperature
                                                            -40- 80 centigrade

                                                            Bearing
                                                            HRB or for your order

                                                            Shaft Material
                                                            stainless steel

                                                            Shell Material
                                                            aluminium alloy

                                                            Lubrication
                                                            Lubrication Grease

                                                            Permanent Magnet Material
                                                            Rare Earth NdFeB

                                                            Protection Grade
                                                            IP54

The characteristics of a Permanent Magnet Generator
1. Direct-drive, gearless generator with low RPM
2. Small size and low weight: Compared to traditional generators, it is 30% smaller and lighter.
3. Outstanding heat dissipation because of the unique internal construction and aluminum alloy outer frame.
4. The unit operates dependably and allows for additional wind turbines because of the permanent magnet generator rotor's proprietary alternator and unique stator design, which effectively reduces the generation of resistance torque.
