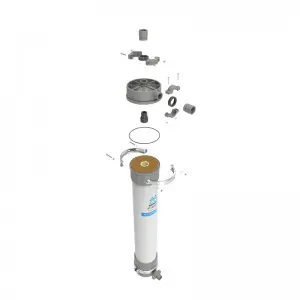

UFf250 Homogeneous PVDF Hollow Fiber Ultrafiltration Membrane

(0 reviews)

Get Price

(95) Views

(0) Contacts

Contact Company

Zhuhai Bangmo Technology Co., Ltd

Guangdong, China

(448) Views

(1) Contacts

PVDF series pressurized UF membrane modules use imported Arkema PVDF raw material, filtering precision is 0.1 micron, ultrafiltrate turbidity ≤1NTU. Outside-in the structure is applicable for raw water with high turbidity and SS. The external surface area of outside-in membranes is large and feasible to air washing or air-water backwashing, which greatly increases the anti-fouling ability of membrane modules. TMP of PVDF outside-in membrane modules are low, which greatly reduces energy consumption.

                                                            Membrane Material & ID / OD
                                                            PVDF（0.8/1.3mm）

                                                            Operating Pressure
                                                            ≤0.2MPa

                                                            Filter Type
                                                            Outside-in

                                                            CIP
                                                            When it comes to Maximum TMP

                                                            Pore Size
                                                            0.1μm

                                                            CEB
                                                            1~4 (Times/day)

                                                            Membrane Area, m2
                                                            78

                                                            Size, mm Connector
                                                            Ø250x1710

                                                            Backwashing Frequency
                                                            30~60min

                                                            Size, mm
                                                            Ø50

                                                            Backwashing Pressure
                                                            ≤0.15MPa

                                                            Shell Material
                                                            UPVC

                                                            Sealing Material
                                                            Epoxy Resin+PU

                                                            TMP
                                                            ≤0.15MPa

                                                            SDI15 / Ultrafiltrate SDI15 2
                                                            ≤1NTU

                                                            PH
                                                            5~9 (Washing2~12)

                                                            Ultrafiltrate Turbidity
                                                            ≤3

                                                            Turbidity
                                                            ≤25NTU

                                                            Temperature
                                                            5~45℃

                                                            Operating Flux
                                                            40~100L/m .h .

                                                            Backwashing Flux
                                                            100~150L/m .h

Applications of PVDF Hollow Fiber Ultrafiltration Membrane

Treatment of surface water & groundwater
Municipal drinking water treatment
Reuse of industrial wastewater
RO
RO pretreatment

Features of PVDF Hollow Fiber Ultrafiltration Membrane

SS≤1mg/L、≤1NTU、SDI≤3.
Ultrafiltrate SS≤1mg/L, turbidity≤1NTU, SDI≤3.
Use imported PVDF raw material, which has good chemical resistance, good hydrophilicity, anti-aging ability, and long service life.
PVDF's 30% Strength is 30% higher than other NIPS PVDF in the market.
3~5 years service life under normal use.
