Ultrafiltration UF Membrane 4046

(0 reviews)

Get Price

(730) Views

(0) Contacts

100 - 999 pieces 1000 - 4999 pieces >= 5000 pieces
$25.80 $24.80 $23.80

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(4206) Views

(174) Contacts

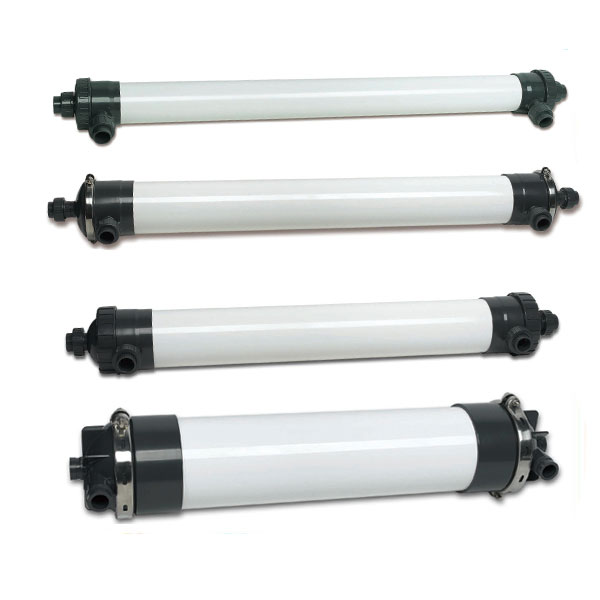

UF-4046 is an Ultra Filtration membrane unit made of PAN material hollow fiber tubes, and a PVC shell. These UF membranes are characterized by Antibacterial function. (especially good for removing particulate, virus, colloid, albumin protein, gelatin, carbon black, organic compound

Model	UF-4040	UF-4046	UF-6060	UF-8060	UF-1060
Type	Inside-out	Inside-out	Inside-out	Inside-out	Inside-out
Shell	PVC	PVC	PVC	PVC	PVC
seal materials	epoxy resins	epoxy resins	epoxy resins	epoxy resins	epoxy resins
Membrane material	PAN/PVC/PVDF	PAN/PVC/PVDF	PAN/PVCPVDF	PAN/PVC/PVDF	PAN/PVC/PVDF
Molecular weight cut off(Dalton)	50.000	50.000	100.000	100.000	100.000
Size(mm)	90x1016	90x1155	160x1352	200x1415	250x1713
Effective membrane area	4㎡	4.8㎡	15㎡	25㎡	52㎡
Hollow fiber id/od size	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm
Max operating pressure	0.3Mpa	0.3Mpa	0.3Mpa	0.3Mpa	0.3Mpa
Suggest operating pressure	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa
Max transmembrane pressure	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa
Backwash pressure	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa
Produced water pollution index(SDI25)	≤3	≤3	≤1	≤3	≤3
Initial flux	0.8m3/h	1m3/h	4.5m3/h	5m3/h	9m3/h
Design flux	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h
Operating mode	Cross flow or dead-end flow	Cross flow or dead-end flow	Cross flow or dead-end flow	Cross flow or dead-end flow	Cross flow or dead-end flow
Bacteria removal rate	≥4log	≥4log	≥6log	≥6log	≥6log
Permeate turbidity	≤0.1NTU	≤0.1NTU	≤0.1NTU	≤0.1NTU	≤0.1NTU
Operating temperature	5-40℃	5-40℃	5-40℃	5-40℃	5-40℃
PH range	2-10	2-10	2-10	2-10	2-10

                                                            Module Type
                                                            Inside-Out

                                                            Permeate Water SDI15
                                                            < 3

                                                            Max. Working Pressure
                                                            43 psi (0.3MPa)

                                                            Feed Water SDI15
                                                            < 25

                                                            Suggested Working Pressure
                                                            30 psi (0.2MPa)

                                                            Feed Water Residual Chlorine
                                                            < 70 ppm

                                                            Max. Trans-membrane Pressure Drop
                                                            30 psi (0.2MPa)

                                                            Permeate Water Turbidity
                                                            < 1 NTU

                                                            Max. Feed Water Temperature
                                                            5~40℃

                                                            Feed Water Turbidity
                                                            < 70 NTU

                                                            Active Membrane Area
                                                            4.8 m2

                                                            Initial Permeate Flow
                                                            1 m3

                                                            Designing Permeate Water Flow
                                                            40~150 L/m2/H

                                                            Cut-Off Molecular
                                                            50,000 Dalton

                                                            Hollow Fiber Tubes In/Out Diameter
                                                            1.0/1.6mm

                                                            pH Range of Feed Water During Continuous Operation
                                                            2~10

                                                            Hollow Fiber Tubes Quantity
                                                            1,500 pcs
