Ultrafiltration UF Membrane 8060

(0 reviews)

Get Price

(619) Views

(0) Contacts

100 - 999 pieces 1000 - 4999 pieces >= 5000 pieces
$128.00 $118.00 $115.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(4206) Views

(174) Contacts

Description
Product Reviews

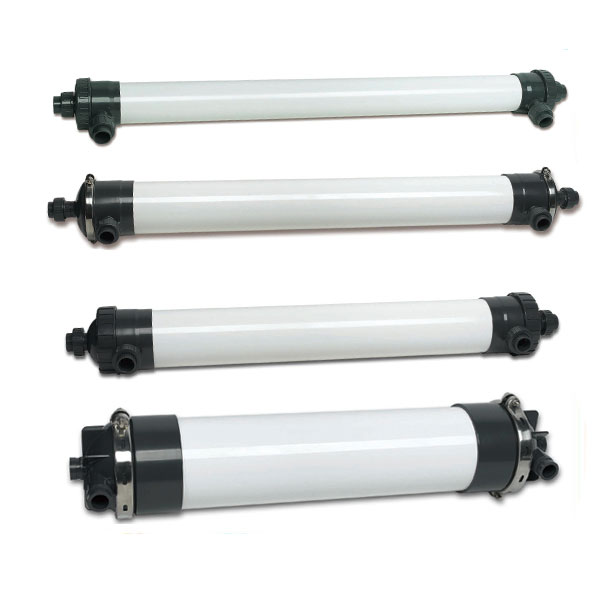

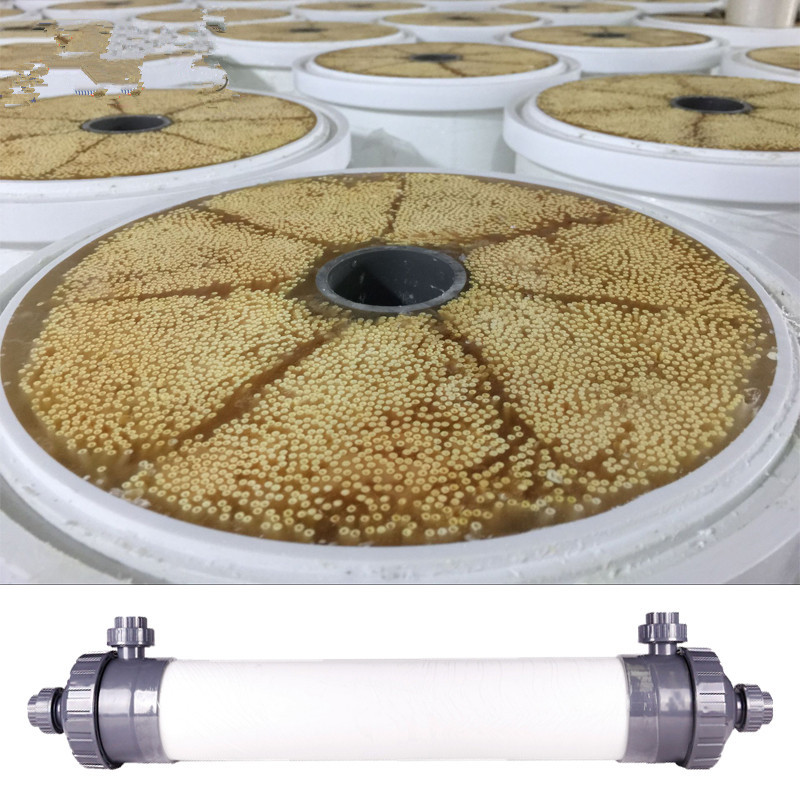

UF-8060 is an Ultra Filtration membrane unit made of PAN material hollow fiber tubes, and a PVC shell. These UF membranes are characterized by Antibacterial function. (especially good for removing particulate, virus, colloid, albumin protein, gelatin, carbon black, and organic compound)

Model	UF-4040	UF-4046	UF-6060	UF-8060	UF-1060
Type	Inside-out	Inside-out	Inside-out	Inside-out	Inside-out
Shell	PVC	PVC	PVC	PVC	PVC
seal materials	epoxy resins	epoxy resins	epoxy resins	epoxy resins	epoxy resins
Membrane material	PAN/PVC/PVDF	PAN/PVC/PVDF	PAN/PVCPVDF	PAN/PVC/PVDF	PAN/PVC/PVDF
Molecular weight cut off(Dalton)	50.000	50.000	100.000	100.000	100.000
Size(mm)	90x1016	90x1155	160x1352	200x1415	250x1713
Effective membrane area	4㎡	4.8㎡	15㎡	25㎡	52㎡
Hollow fiber id/od size	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm	1.0mm/1.6mm
Max operating pressure	0.3Mpa	0.3Mpa	0.3Mpa	0.3Mpa	0.3Mpa
Suggest operating pressure	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa
Max transmembrane pressure	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa	≤0.2Mpa
Backwash pressure	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa	0.05-0.1Mpa
Produced water pollution index(SDI25)	≤3	≤3	≤1	≤3	≤3
Initial flux	0.8m3/h	1m3/h	4.5m3/h	5m3/h	9m3/h
Design flux	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h	40-150L/㎡/h
Operating mode	Cross-flow or dead-end flow	Cross-flow or dead-end flow	Cross-flow or dead-end flow	Cross-flow or dead-end flow	Cross-flow or dead-end flow
Bacteria removal rate	≥4log	≥4log	≥6log	≥6log	≥6log
Permeate turbidity	≤0.1NTU	≤0.1NTU	≤0.1NTU	≤0.1NTU	≤0.1NTU
Operating temperature	5-40℃	5-40℃	5-40℃	5-40℃	5-40℃
PH range	2-10	2-10	2-10	2-10	2-10

UF-8060	Module Type	Inside-Out
	Max. Working Pressure	43 psi (0.3MPa)
	Suggested Working Pressure	30 psi (0.2MPa)
	Max. Trans-membrane Pressure Drop	30 psi (0.2MPa)
	Max. Feed Water Temperature	5~40℃
	Active Membrane Area	25 m2
	Designing Permeate Water Flow	40~150 L/m2/H
	Cut-Off Molecular	100,000 Dalton
	Hollow Fiber Tubes In/Out Diameter	1.0/1.6mm
	Hollow Fiber Tubes Quantity	7,300 pcs
	pH Range of Feed Water During Continuous Operation	2~10
	Initial Permeate Flow	5 m3
	Feed Water Turbidity	< 70 NTU
	Permeate Water Turbidity	< 1 NTU
	Feed Water Residual Chlorine	< 70 ppm
	Feed Water SDI15	< 25
	Permeate Water SDI15	< 3
