CONTROL UNIT With flow control and adjustment system

(0 reviews)

Get Price

(136) Views

(0) Contacts

Contact Company

ETATRON D.S. S.P.A.

Rome, Italy

(1138) Views

(4) Contacts

Control and regulating system for free chlorine, made of the eSELECT-M1 controller, block valves, connection for tube 10x14 mm, water filter with washable net cartridge 150 microns, methacrylate probe holder with proximity switch and adjustment flow system, manual sampling, free inorganic and organic chlorine probe, (0 – 20) ppm measuring range, probe shows low pH dependence (pH working range 4- 12 pH), chlorine measuring is not affected by isocyanuric acid, surfactants/flocculants presence, the probe is automatic temperature- compensated, 0,7 mt probe cable, 1 manual pump wiring connection available in the central box trunking. The unit required a constant flow rate between 30 and 40 l/h and does not exceed the maximum operating pressure of 1 bar (free discharge at probe holder outlet) while water temperature cannot overcome 45°C. The probe has integrated temperature compensation. Suitable for software EtaCloud connection; optional accessory: connectivity kit. Panel dimensions 400 x 600 x 0.80 mm

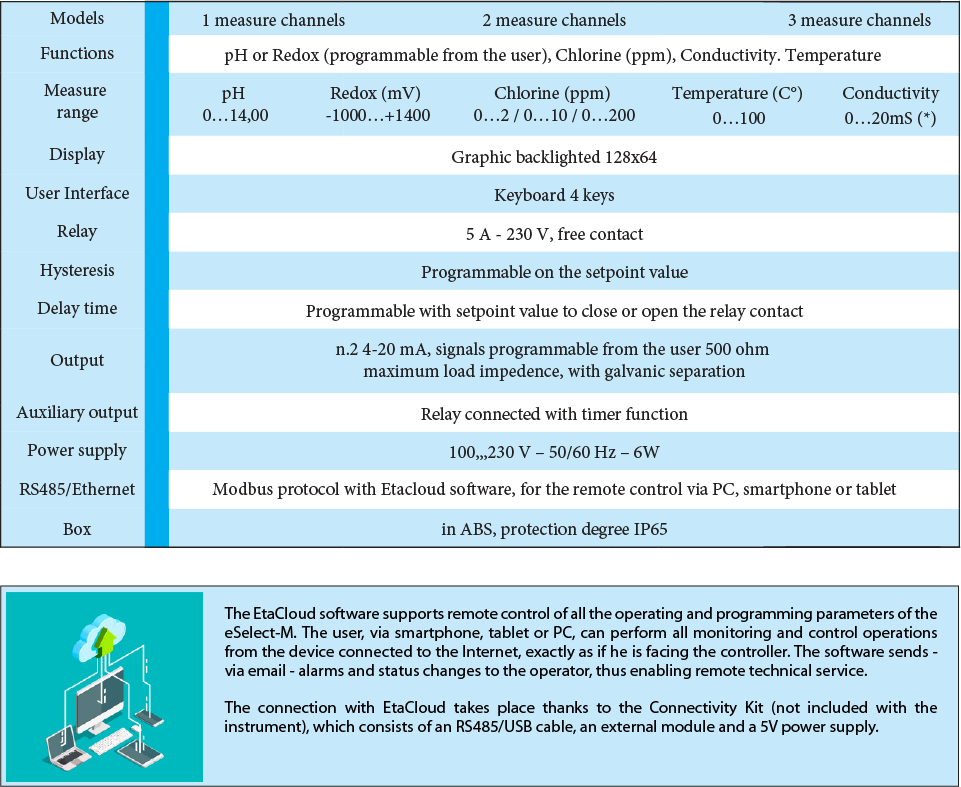

eSelect-M1 series is a family of controllers with one channel measure (+ temperature). The wide graphic display and user-friendly navigation make it a very simple product for the end user. Predisposed for Eatcloud connection, thanks to the “Connection Kit” (not included with the controller) the select-M1 can be managed in a remote way

ETACLOUD

The EtaCloud software supports remote control of all the operating and programming parameters of the eSelect-M. The user, via smartphone, tablet, or PC, can perform all monitoring and control operations from the device connected to the Internet, exactly as if he is facing the controller. The software sends - via email - alarms and status changes to the operator, thus enabling remote technical service. The connection with EtaCloud takes place thanks to the Connectivity Kit (not included with the instrument), which consists of an RS485/USB cable, an external module, and a 5V power supply.

Model P CL-F

Available measures: pH, Redox (mV), Free Chlorine (ppm), Total Chlorine (ppm), Conductivity, and temperature (C° or F°)
Version pH or Redox, selectable from the user
Timer mode, connected to auxiliary realy
N.2 4-20mA outputs, programmable from the user
Temperature compensation, automatic (PT100 or NTC sensor) or manual
Chlorine measure (ppm) by selective membrane sensor or amperometric cell Platinum-Copper
2 setpoint, ON/OFF mode or PWM (Pulse Width Modulation);
Adjustable hysteresis on setpoint value; delay time on activation relay
Alarm MAX and MIN modes on the measure value
Overdosing Alarm (excessive dosing time)
Alarm relay, NO or NC programmable from the user
Graphic display backlighted (128x64)
Timer built-in to manage the start/stop of the controller
Start-up delay
Input for level sensor or flow sensor (delay selectable)
Available boxes: wall mounting (IP65); DIN 43700 (96x96mm)
