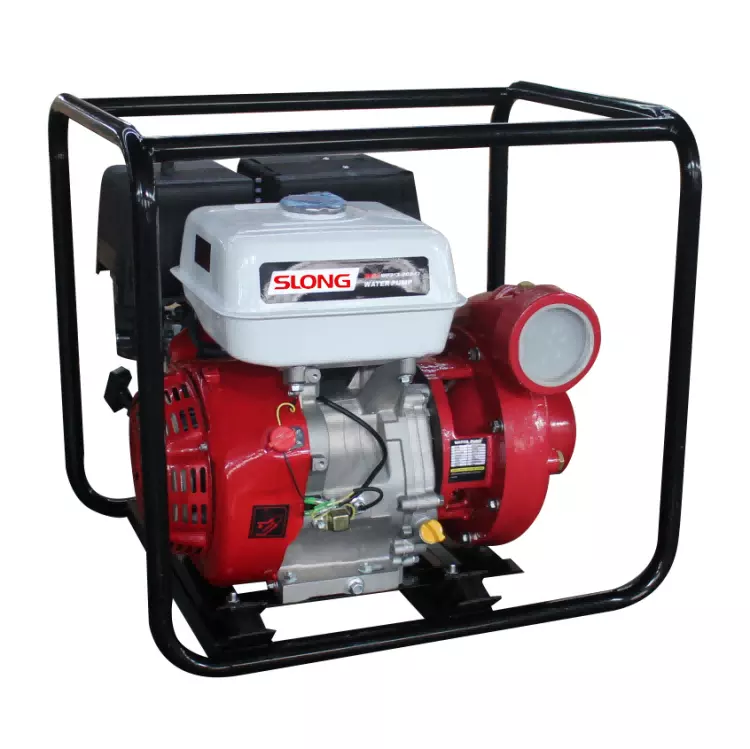

WP3X3-208-CI High Lift Water Pump

(0 reviews)

Get Price

(189) Views

(0) Contacts

$80.00 - $130.00/ 10 set/sets

Contact Company

Yancheng Slong Machinery & Electric Co., Ltd.

Jiangsu, China

(1468) Views

(1) Contacts

                                                            Model
                                                            WP3X3-208-CI

                                                            Solids Handling
                                                            N/A

                                                            Fuel Tank Capacity
                                                            6.5L

                                                            Outlet diameter
                                                            80 mm

                                                            Inlet diameter
                                                            80 mm

                                                            Lift Head
                                                            66 m

                                                            Suction Head
                                                            7 m

                                                            Height
                                                            575 mm

                                                            Width
                                                            485 mm

                                                            Length
                                                            625 mm

                                                            Engine Model
                                                            SL420

                                                            Starting Model
                                                            Recoil Start

                                                            Impeller & Volute
                                                            Cast Iron

                                                            Gross Weight
                                                            62KG

                                                            Net weight
                                                            57Kg

                                                            Mechanical Seal
                                                            Silicon Carbide

                                                            Pump Type
                                                            Centrifugal, Self Priming

                                                            Displacement
                                                            420CC

                                                            Discharge Capacity
                                                            50 m3/hr

                                                            Net Power
                                                            9.7 KW/3600 rpm

                                                            Impeller Diameter
                                                            208mm
