1WZB45 Self-priming vortex pump

(0 reviews)

Get Price

(483) Views

(0) Contacts

50 - 499 pieces >= 500 pieces
$38.00 $23.00

Contact Company

Taizhou Qianniu Mechanical And Electrical Co., Ltd.

Zhejiang, China

(1799) Views

(9) Contacts

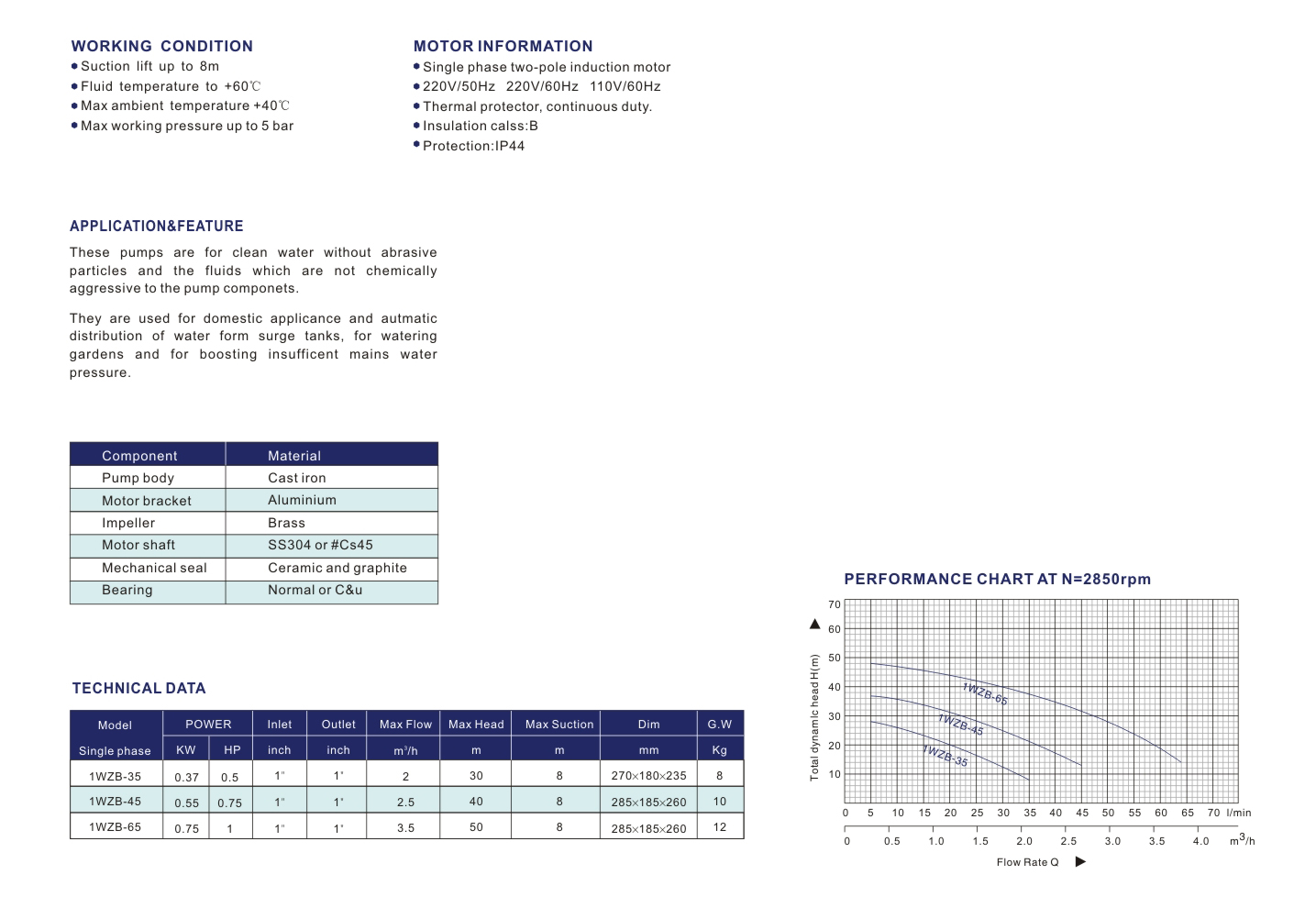

WORKING CONDITION

Suction lift up to 8m
Fluid temperature to +60°C
Max ambient temperature +40°C
Max working pressure up to 5 bar

MOTOR INFORMATION

Single phase two-pole induction motor
220V/50Hz 220V/60Hz 110V/60Hz
Thermal protector, continuous duty.
Insulation class: B
Protection: IP44

                                                            Warranty
                                                            1 year

                                                            Customized support
                                                            OEM

                                                            Brand Name
                                                            Kingnew

                                                            Model Number
                                                            1WZB-45

                                                            Place of Origin
                                                            Zhejiang,China

                                                            Horsepower
                                                            0.75hp

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            4bar

                                                            Structure
                                                            Single-stage Pump

                                                            Outlet Size
                                                            1"*1"

                                                            Voltage
                                                            220v

                                                            Power
                                                            0.55kw

                                                            Material
                                                            Cast Iron

                                                            Color
                                                            Customized Color

                                                            Impeller
                                                            Brass Impeller

                                                            Weight
                                                            10kg

                                                            Pump body
                                                            Cast Iron Pump

                                                            OEM
                                                            OEM Services Provided

                                                            Flow
                                                            2.5m3/h

Irrigation
Agriculture
Water Distribution
Water-supply
Domestic appliances
Automatic distribution of water from surge tanks for watering gardens and for boosting insufficient mains water pressure.

These pumps are for clean water without abrasive particles and fluids which are not chemically aggressive to the pump components.
They are used for domestic appliances and the automatic distribution of water from surge tanks for watering gardens and for boosting insufficient mains water pressure.
