RDO-406 integrated online fluorescence dissolved oxygen sensor is designed and fabricated based on the quenching principle of exciting fluorescence by specific substances in physics. When the excitation light is shone on the fluorescent material on the surface of the fluorescent film head, the fluorescent material is excited and emits fluorescence. The quenching time of fluorescence is affected by the concentration of oxygen molecules on the surface of the fluorescent film head. By detecting the phase difference between fluorescence and excitation light and comparing it with the internal calibration curve, the concentration of oxygen molecules can be calculated, and the final value can be output after temperature and salinity compensation.

No electrolyte is required and will not be polarized.
No oxygen consumption, not affected by flow rate.
Built-in temperature sensor, automatic temperature compensation.
Free from interference by chemicals such as sulfides
Small drift, rapid reaction, more accurate measurement.
Long service cycle, lower cost of use.

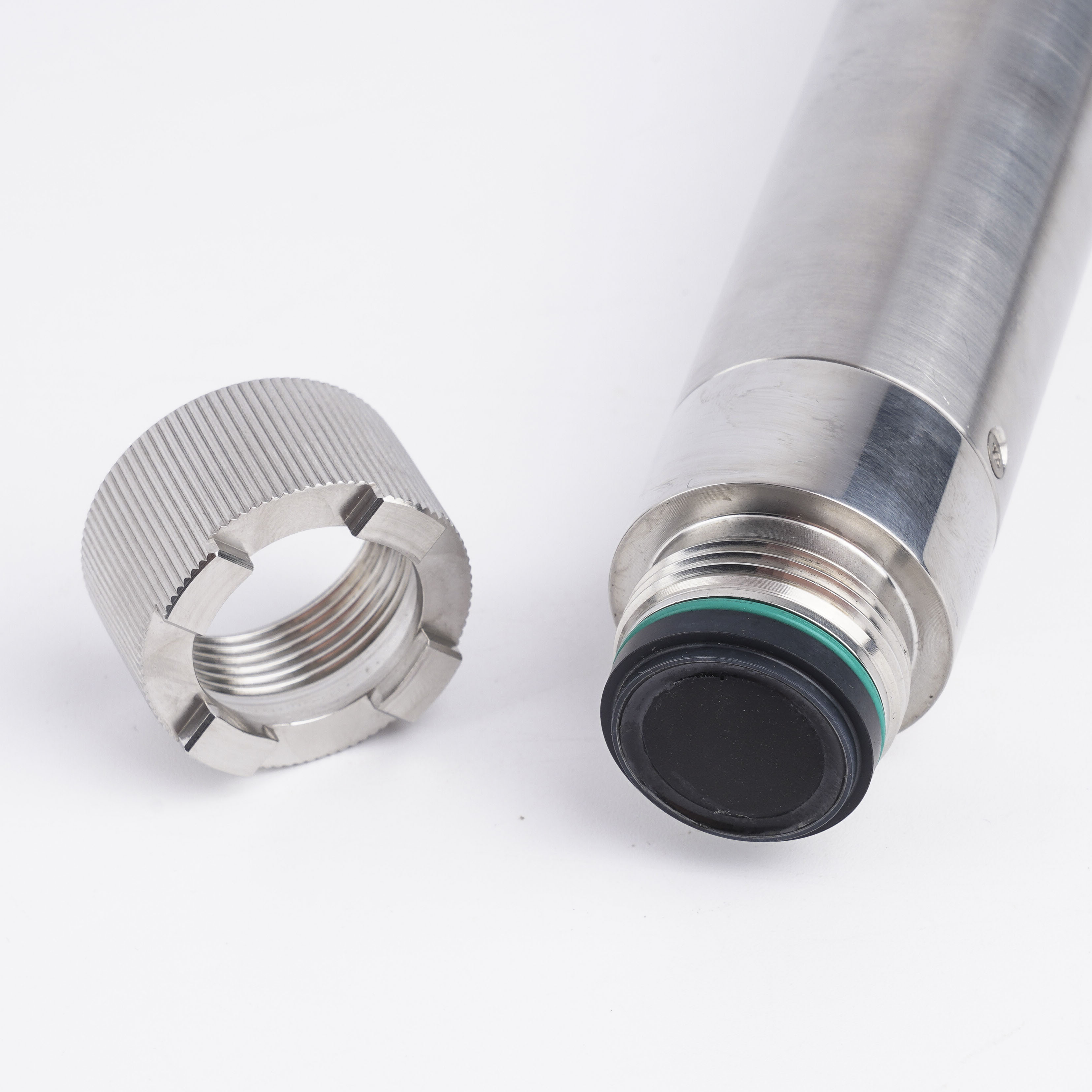

Simple replacement of fluorescent cap.
Rs-485 interface, Modbus/RTU protocol.
Low power consumption，anti-interference.

                                                            Model
                                                            RDO-406

                                                            Sensor shell material
                                                            ABS and 316L stainless steel

                                                            Measuring principle
                                                            Fluorescence method

                                                            Range ability
                                                            0~20.00mg/L (0 ≤ 200% saturation,25℃)

                                                            Resolution ratio
                                                            0.01mg/L，0.1℃

                                                            Calibration
                                                            Two-point calibration

                                                            Precision
                                                            ±2%F.S.，±0.3℃

                                                            Fluorescent cap life
                                                            Guaranteed use for one year (under normal use)

                                                            Temperature compensation
                                                            Automatic temperature compensation（Pt1000）

                                                            levels of protection
                                                            IP68

                                                            Output mode
                                                            RS-485Modbus-RTU and 4-20mA

                                                            Source
                                                            12～24VDC

                                                            Working conditions
                                                            0～45℃、<0.2MPa

                                                            Power dissipation
                                                            0.2W@12V

                                                            Storage temperature
                                                            -5～65℃

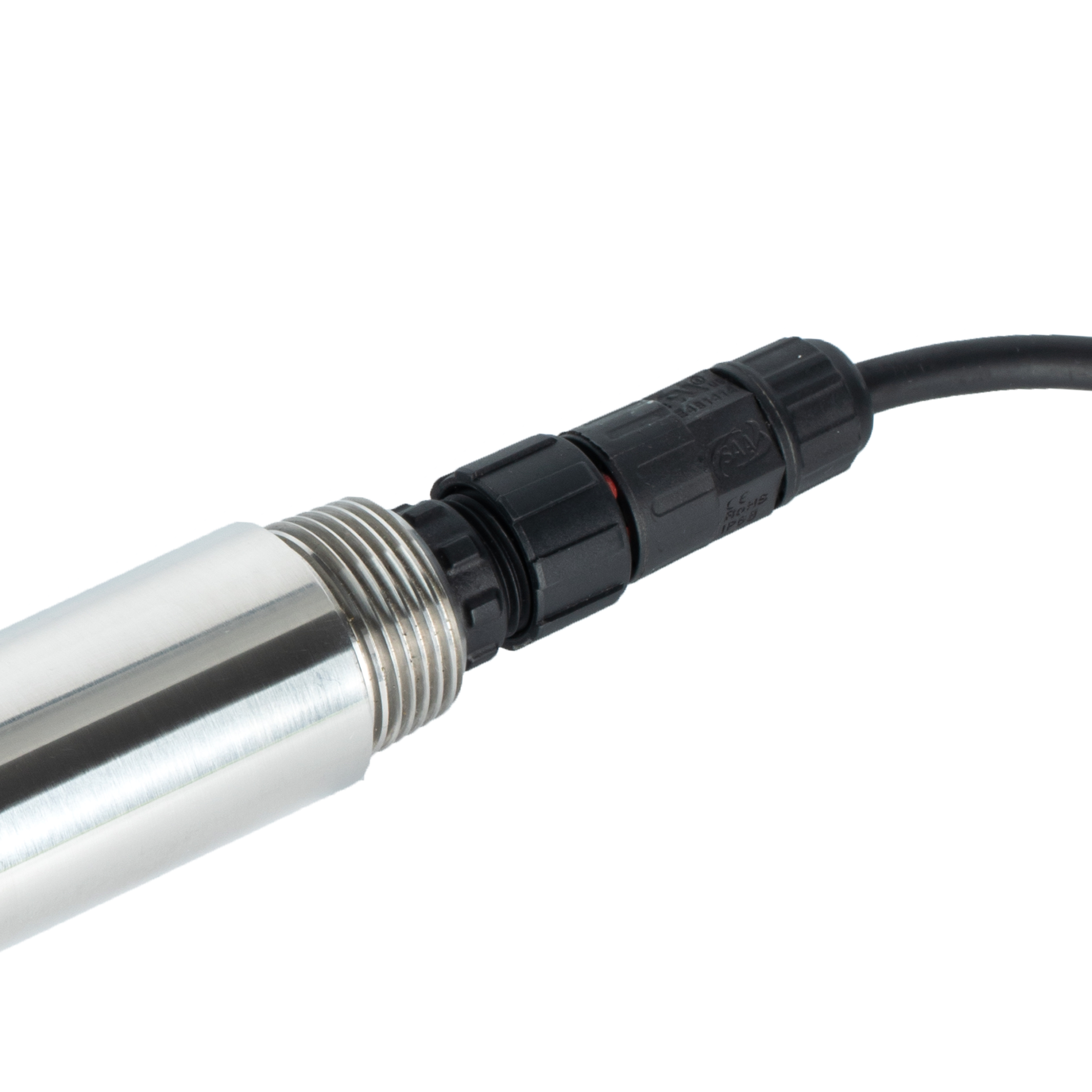

                                                            Cable length
                                                            5 meters, other lengths customizable

                                                            Installation mode
                                                            Immersion mounting, 3/4"NPT Thread
