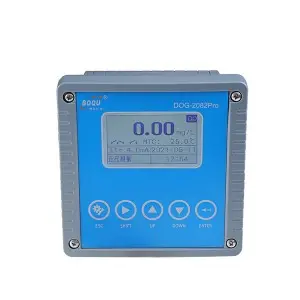

New Industrial Dissolved Oxygen Meter

(0 reviews)

Get Price

(135) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(1086) Views

(11) Contacts

                                                            Model No
                                                            DOG-2082Pro

                                                            Protocol
                                                            Modbus RTU RS485 or 4-20mA

                                                            Measure Parameters
                                                            Dissolved Oxygen,Temperature

                                                            Features
                                                            IP65 protection grade, 90-260VAC wide power supply

                                                            Measuring range
                                                            0.0~200.0%	0.00 to 20.00ppm

                                                            Resolution
                                                            0.1	 0.1

                                                            Accuracy
                                                            ±1%FS	±1%FS

                                                            Temp. compensation
                                                            Pt 1000/NTC22K

                                                            Temp. range
                                                            -10.0 to +130.0℃

                                                            Display
                                                            Back light, dot matrix

                                                            Temp. compensation range
                                                            -10.0 to +130.0℃

                                                            Polarization
                                                            -0.675V

                                                            Accuracy of electrode current
                                                            ±0.005nA

                                                            Current range of electrode
                                                            -2.0 to +400 nA

                                                            Temp. accuracy
                                                            ±0.5℃

                                                            DO current output1
                                                            Isolated, 4 to 20mA output , max. load 500Ω

                                                            Installation
                                                            panel/wall/pipe installation

                                                            Weight
                                                            0.9Kg

                                                            Temp. current output 2
                                                            Isolated, 4 to 20mA output , max. load 500Ω

                                                            Power supply
                                                            From 90 to 260 VAC, power consumption < 4 watts, 50/60Hz

                                                            Current output accuracy
                                                            ±0.05 mA

                                                            Language selection
                                                            English/Chinese

                                                            Waterproof grade
                                                            IP65

                                                            RS485
                                                            Mod bus RTU protocol

                                                            One multi function relay
                                                            clean/period alarm/error alarm

                                                            Maximum relay contacts capacity
                                                            5A/250VAC,5A/30VDC

                                                            Cleaning setting
                                                            ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours

Online dissolved oxygen meters are used in effluent treatment, pure water, boiler water, surface water, electroplate, electron, chemical industry, pharmacy, food production process, environmental monitoring, brewery, fermentation, etc.
The power plant, fermentation, tap water, industrial water
