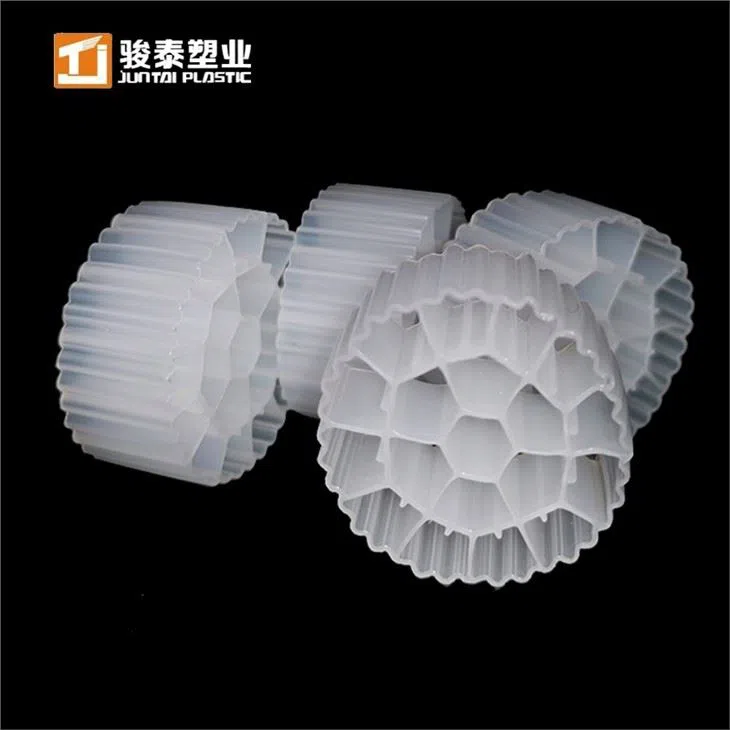

Bio Filter Media

(0 reviews)

Get Price

(159) Views

(0) Contacts

1 - 99 cubic meters
$265.00
100 - 299 cubic meters
$170.00
>= 300 cubic meters
$155.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(981) Views

(5) Contacts

Post-Anoxic Denitrification Process Design Calculations Process design of a post-anoxic denitrification MBBR system requires sizing an MBBR tank for BOD removal, one for nitrification, and one for denitrification. For all three of these reactors, the key design parameter for sizing the MBBR tank is the surface area loading rate (SALR), typically with units of g/m2/day, that is g/day (of the parameter being removed in that reactor) coming into the MBBR tank per m2 of carrier surface area in the reactor. Using design values for wastewater flow rate and concentration of the removed parameter entering the MBBR tank, the loading rate in g/day can be calculated. Then dividing the loading rate in g/day by the SALR in g/m2/day gives the required carrier surface area in m2. The carrier fill %, carrier-specific surface area, and carrier % void space can then be used to calculate the required carrier volume, tank volume, and the volume of liquid in the reactor. A typical flow diagram for a post-anoxic denitrification MBBR process is shown in the figure on the next page
1. MBBR-SBR SLUDGE PROCESS

2. ANAEROBIC-ANOXIC-OXIC PROCESS

3. OXIDATION DITCH-MBBR PROCESS

                                                            Size
                                                            Φ25*12mm

                                                            Applicable Temperature
                                                            5-60℃  ·

                                                            Life-Span
                                                            >15year

                                                            Hole Numbers
                                                            19  ·

                                                            Material
                                                            100% White Virgin HDPE

                                                            Weight
                                                            95KG/CBM  ·

                                                            Densilty
                                                            0.96-0.98g/cm3

                                                            Surface Area
                                                            >650m2/m3

                                                            Packing Numbers
                                                            >118000pcs/m3

                                                            Porosity
                                                            >85%

                                                            Dosing Ratio
                                                            15-65%

                                                            Membrane-Forming Time
                                                            3-15days

                                                            COD5 Efficiency
                                                            2000-15000 gCOD5/M3.d

                                                            Nitrification Efficiency
                                                            400-1200gNH4 N/M3.d

                                                            BOD5 Efficiency
                                                            2000-10000g BOD5/M3.d
