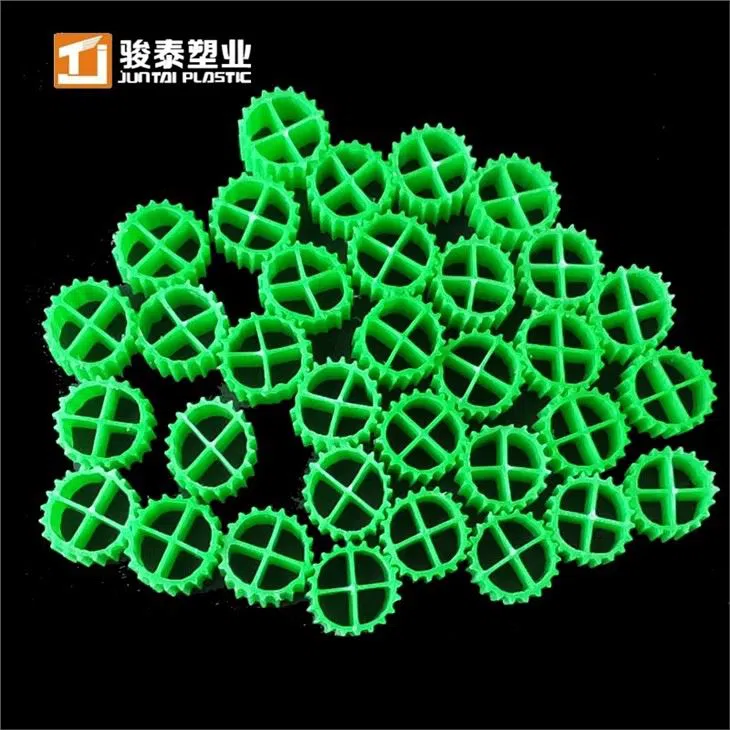

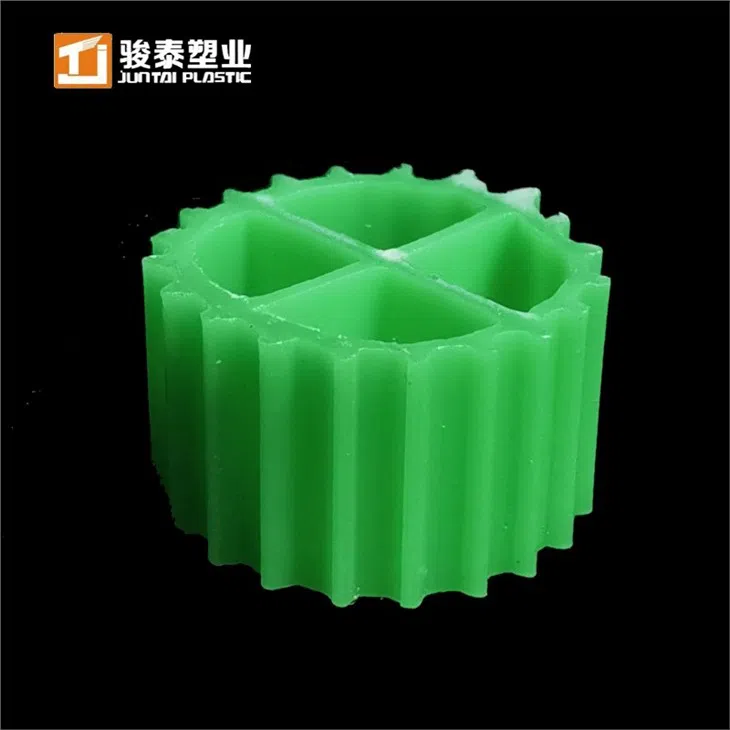

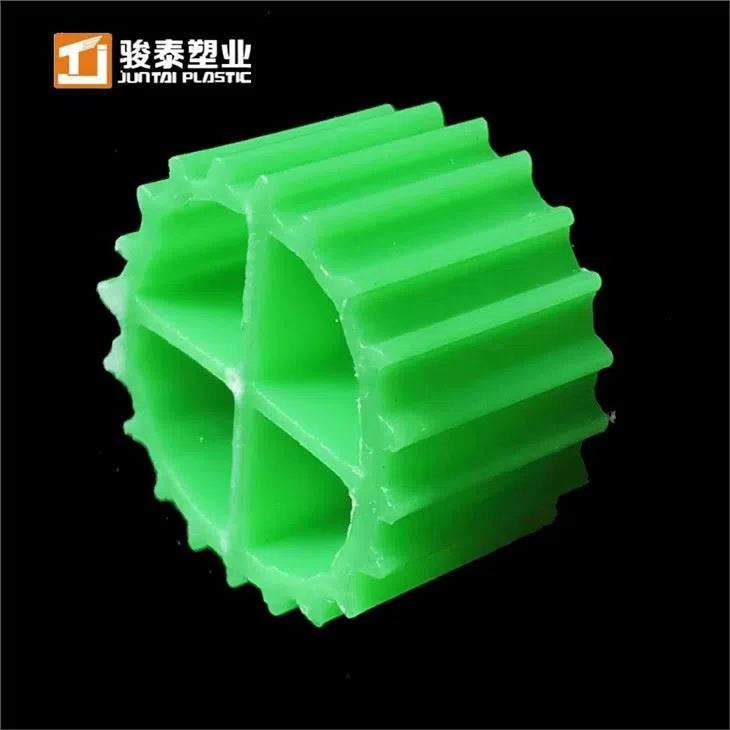

MBBR Bio Carrier Media K1 K3 MBBR Bio Filter Media

(0 reviews)

Get Price

(166) Views

(0) Contacts

1 - 99 cubic meters
$275.00
100 - 299 cubic meters
$175.00
>= 300 cubic meters
$155.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(967) Views

(5) Contacts

MBBR design (moving bed biofilm reactor design)
For you to get the best out of the MBBR process, using the best model is paramount. However, with the right procedure to follow, you do not need an expert to help you in the design process of the MBBR.
The first step when it comes to MBBR design should understand the discharge charges in your state. This is especially when you are designing the MBBR water treatment plant to meet the regulatory norm.
You can get these from the various MBBR design parameters or books that you may decide to use.
Additionally, in case you intend to reuse the water after waste treatment, you need to familiarize yourself with the standards required for one to reuse treated sewage water. For instance, for chores such as irrigation, you may not expect a high standard is reusing.
However, other tasks such as automobile or toilet flushing will require high standards.
In case you need a water treatment plant to help prevent lousy smells and do not intend to reuse the water, then a central water treatment plant would be enough. However, you also need to follow the right standards in this one too to ensure that you get the best results from your investment.
When thinking about the MBBR design criteria, one of the main things that you should have in mind is the MBBR design calculations. Different plants will have different design calculations since sewage characteristics differ depending on the source of the sewage.
This means that you need to consider several factors to ensure that you make the right design calculations. For instance, educational institutions do not have as much BOD waste as compared to BOD sewage in IT buildings or commercial places.
Additionally, the norm for sewage from homes is about BOD 300 PPM.
When making the MBBR design calculations, you should also remember the three MBBR functions or calculations.

These include:
Single-stage BOD removal
Two-stage BOD removal
Separate stage nitrification
These MBBR functions will help you calculate the best tank volume for the process, and the air or oxygen requirement for there to be a coarse bubble aerations system.
However, this should all be based on carrier characteristics, aeration system characteristics, and wastewater characteristics.
Ideally, the MBBR process is known to improve reliability and simplify the operation and process not to mention the fact that it requires a smaller storage space compared to traditional sewage treatment plants. For this reason, there is a well-managed technology behind the MBBR process to help ensure this become possible. The technology involved during the MBBR process uses thousands of polyethylene biofilm carriers. These carriers operate within an aerated mixed wastewater treatment basin in a combined motion. Each carrier provides a protected carrier which helps in the help in the growth of autotrophic and heterotrophic bacteria within the cells. This technology helps increase the productivity and effectiveness of the process. The high population of bacteria helps achieve a high rate of biodegradation within the system and also provides ease of operation, not to mention the reliability of the process. The MBBR process also has an optimum level of productive biofilm which makes the process and the technology cost-effective and easy to maintain. There is also the biofilm which is attached to the mobile carriers found within the system which automatically responds to load fluctuations. Like in any other situation, the MBBR technology has both its bright sides and dark sides too. For instance, one of the most significant advantages of MBBR technology is that it can be used in already existing tanks. This means that you do not need new tanks when you intend to plan to introduce the MBBR process in your home or institution. All you have to do is to call us when you need the MBBR system, and we shall help you achieve your goal with what you already have. However, the MBBR technology also has its negative side. For instance, you will need to have basic sewage plants for you to be in a position to operate and coordinate MBBR sewage water treatment.

                                                            Type
                                                            MBBR04

                                                            Weight
                                                            125kg

                                                            Size
                                                            Φ11*7mm

                                                            Hole(Room)
                                                            4rooms

                                                            Surface Area
                                                            >900m2m3

                                                            Porosity
                                                            85%

                                                            Material
                                                            HDPE

                                                            Packing Number
                                                            830000pcs/m3
