BW-4040 Brackish Water RO membrane

(0 reviews)

380 USD

(182) Views

(0) Contacts

1 - 49 pieces 50 - 99 pieces >= 100 pieces
$380.00 $280.00 $90.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(4294) Views

(174) Contacts

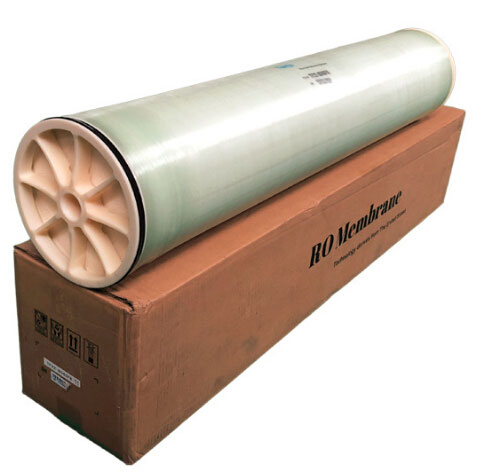

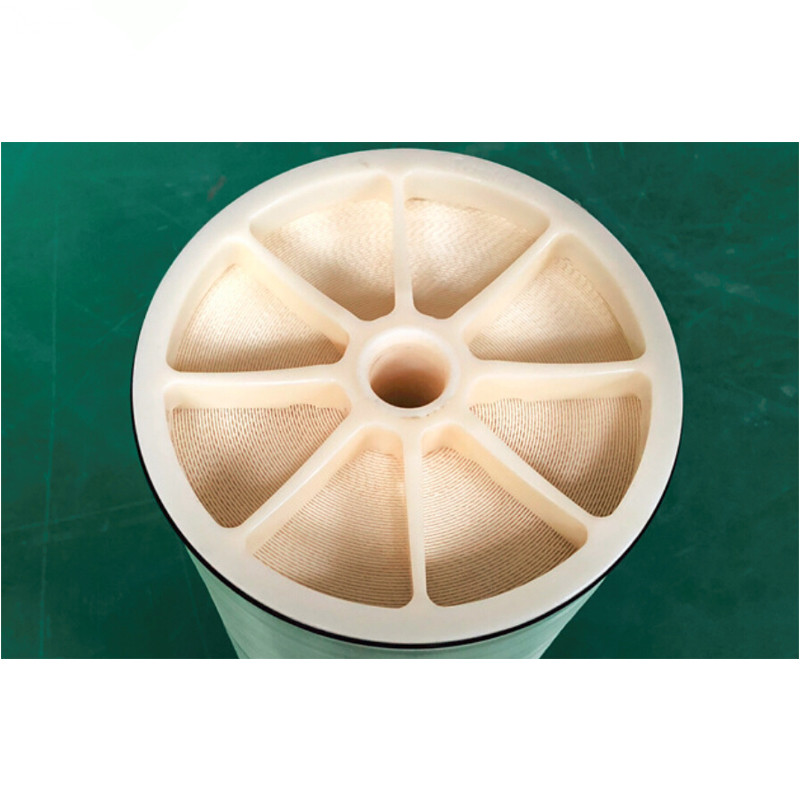

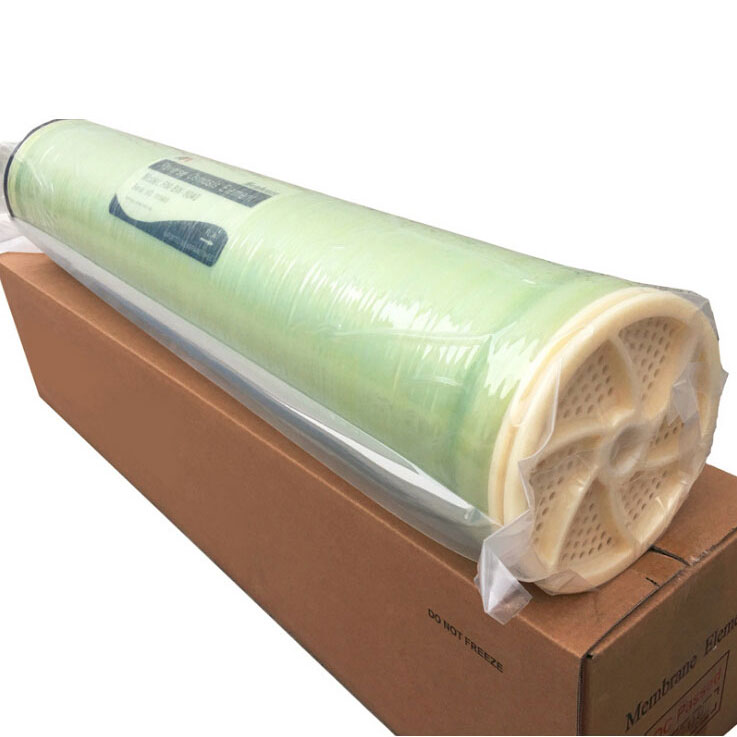

BW-4040 membrane elements are spiral wound, composite polyamide membrane elements for Brackish Water treatment. These membranes are characterized by high operating feed pressure, normally 225psi(1.55MPa), and result in a higher salt rejection rate(especially good for removing TOC, SiO2, etc.), above 99.5%.

Testing Conditions	Testing Pressure	225psi (1.55MPa)	The temperature of Testing Solution	25℃
	The concentration of Testing Solution (NaCl)	2,000ppm	pH Value of Testing Solution	7.5
	Recovery Rate of Single Element	15%

Operation Limits & conditions	Max. Feed Water Flow	16gpm (3.6m3/h)
	Max. Working Pressure	600psi (4.14MPa)
	Max. Feed Water Temperature	45℃
	Max. Feed Water SDI15	<5
	pH Range of Feed Water During Continuous Operation	2~11
	pH Range of Feed Water During Chemical Cleaning	1~13
	Residual Chlorine Concentration of Feed Water	<0.1 ppm
	Max. Pressure Drop of Single Element	10psi (0.07MPa)
	Max.Turbidity NTU	1.0

                                                            Model
                                                            BW-4040

                                                            Active Membrane
                                                            78ft2 (7.2m2)

                                                            Average Permeate
                                                            2,500gpd (9.5m3/d)

                                                            Stable Rejection
                                                            99.5%

                                                            Min. Rejection
                                                            99.3%

                                                            Spacer Net Thickness
                                                            29mil (0.73mm)

These membranes are designed for industrial water treatment applications(NaCl≤10,000ppm, Salt content≤6000us/cm), such as the treatment of brackish and high salinity waters for Electronic factories, Electric Power plants, the Petrochemical industry, Coal chemical industry.
