BW-8040 Brackish Water RO membrane

(0 reviews)

400 USD

(184) Views

(0) Contacts

1 - 49 boxes 50 - 99 boxes >= 100 boxes
$400.00 $250.00 $50.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(4285) Views

(174) Contacts

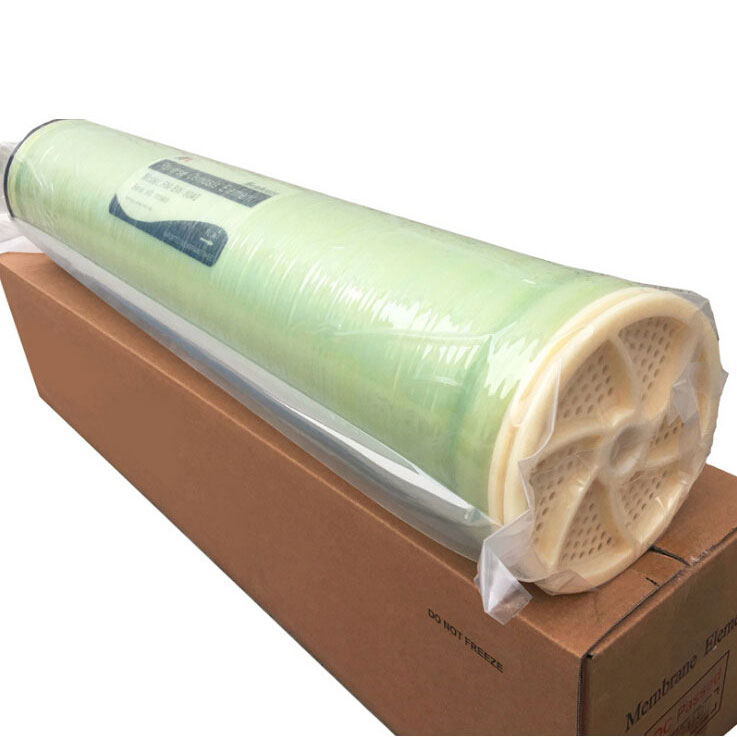

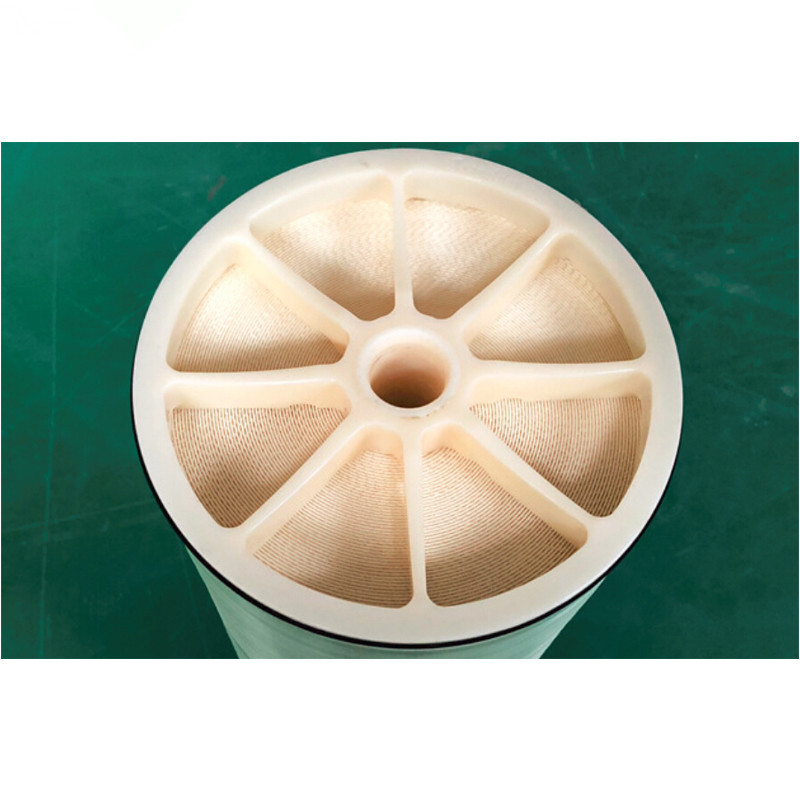

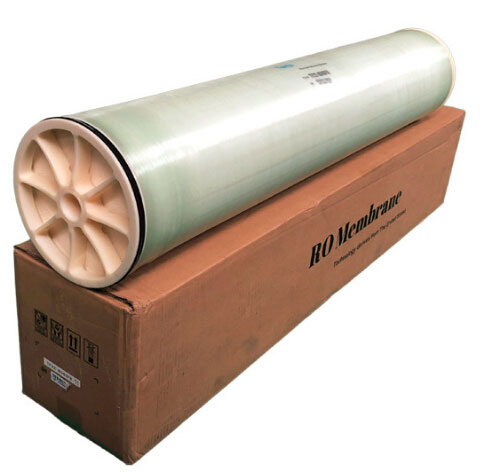

BW-8040 membrane elements are spiral wound, composite polyamide membrane elements for Brackish Water treatment. These membranes are characterized by high operating feed pressure, normally 225psi(1.55MPa), and result in a higher salt rejection rate(especially good for removing TOC, SiO2, etc.), above 96.5%.

Model	Active Membrane	Average Permeate	Stable Rejection	Min. Rejection	Spacer Net Thickness
BW-8040	400ft2 (37.2m2)	10,500gpd (40m3/d)	99.5%	99.3%	31mil (0.79mm)

Testing Conditions	Testing Pressure	225psi (1.55MPa)	The temperature of Testing Solution	25℃
	The concentration of Testing Solution (NaCl)	2,000ppm	pH Value of Testing Solution	7.5
	Recovery Rate of Single Element	15%

Operation Limits & conditions	Max. Feed Water Flow	75gpm (17m3/h)
	Max. Working Pressure	600psi (4.14MPa)
	Max. Feed Water Temperature	45℃
	Max. Feed Water SDI15	<5
	pH Range of Feed Water During Continuous Operation	2~11
	pH Range of Feed Water During Chemical Cleaning	1~13
	Residual Chlorine Concentration of Feed Water	<0.1 ppm
	Max. Pressure Drop of Single Element	10psi (0.07MPa)
	Max.Turbidity NTU	1.0

These membranes are designed for industrial water treatment applications(NaCl≤10,000ppm, Salt content≤6000us/cm), such as the treatment of brackish and high salinity waters for the Electronic factories, Electric Power plants, Petrochemical industry, Coal chemical industry.
