Pneumatic Membrane Ccut Off Valve

(0 reviews)

210.9 USD

(259) Views

(0) Contacts

Category: Pneumatic Valves

1 piece

$210.90

Contact Company

Xi'an Liangjing Valve Co., Ltd.

Shaanxi, China

(668) Views

(8) Contacts

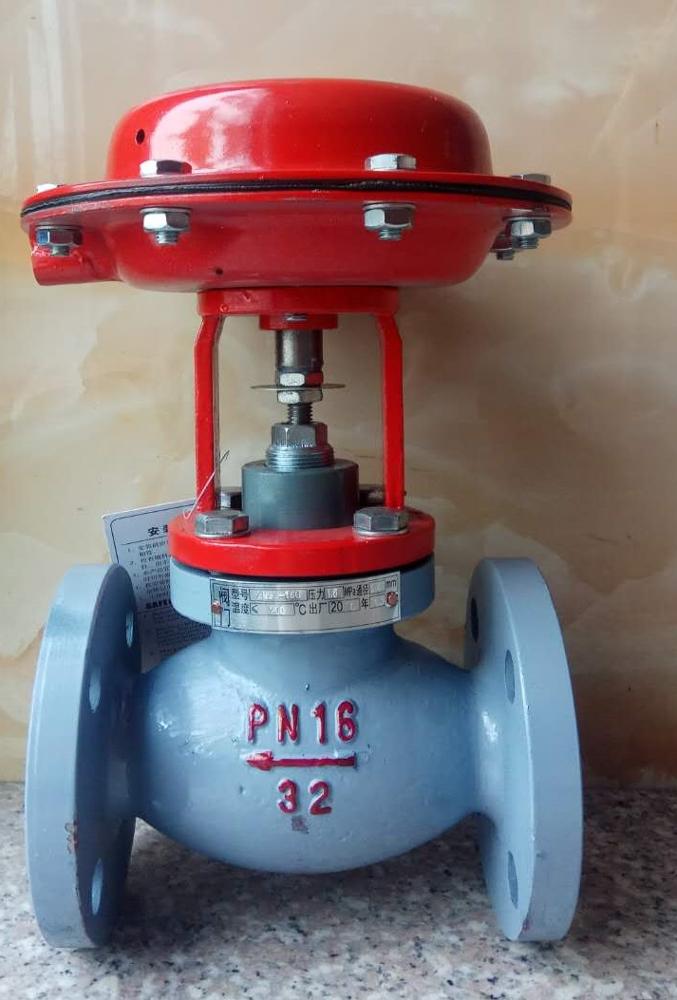

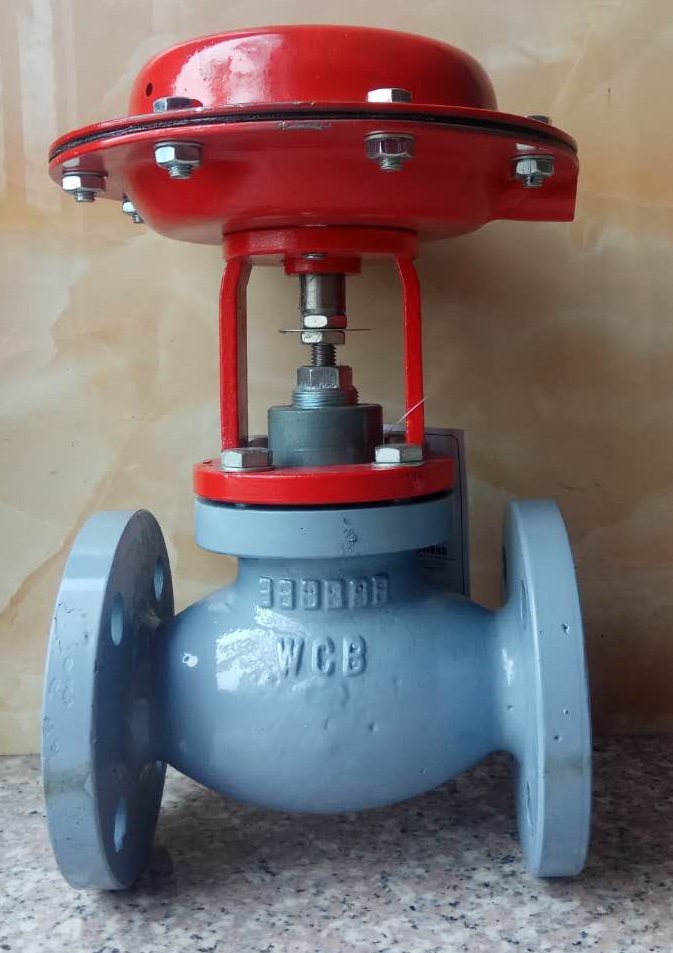

Pneumatic cut-off valve features:
1. This valve with a multi-spring actuator reduces the height of the valve and enhances the stability of the valve.
2. Smart design of valve body flow passage, which reduces the eddy current and flows resistance, so as to increase the flow capacity of the valve.
3. The sealing surface of the valve core adopts PTFE packing, with reliable sealing performance.
4. The use of a balanced sleeve valve can greatly improve the allowable pressure difference.
Our Advantages
1) 10 years of experience in valve R&D, manufacturing, and sales.
2) Consistent product quality and reduction of defective productivity.
3) Significant cost reduction versus competitors.
4) 12 months of warranty time.
5) OEM & ODM service available.

                                                            Type
                                                            Gate Valves, Emergency Shut-Off Valves, shut off valve

                                                            Power
                                                            Pneumatic

                                                            Port Size
                                                            DN15-DN200

                                                            Body material
                                                            ASTM216-WCB

                                                            Temperature
                                                            Medium Temperature

                                                            Pressure
                                                            1.6-6.4MPa

                                                            Connection
                                                            Flange Ends

                                                            Structure
                                                            Globe, two position, two ways

                                                            Media
                                                            Water, steam and oil

                                                            Temperature of Media
                                                            Normal temperature

 The cut-off valve is the actuator in the pneumatic unit combination instrument and is one of the important links in the production process automatic regulation system. It can cut off or open the valve according to the signal from the control system.
A cut-off valve can control pipeline parameters (pressure, temperature, flow, or liquid level with the advantages of simple structure, quick opening and closing, no leakage, convenient maintenance, waterproof, explosion-proof, and so on.
Currently, the cut-off valve is widely used in the automatic adjustment and remote control of the production process of chemical, petroleum, metallurgy, pharmaceutical, paper, and light textile industries.
