QBXXXHT Peripheral Pump With Cast Iron Pump Head

(0 reviews)

Get Price

(198) Views

(0) Contacts

Contact Company

Junhe Pumps Holding Co., Ltd.

Zhejiang, China

(609) Views

(1) Contacts

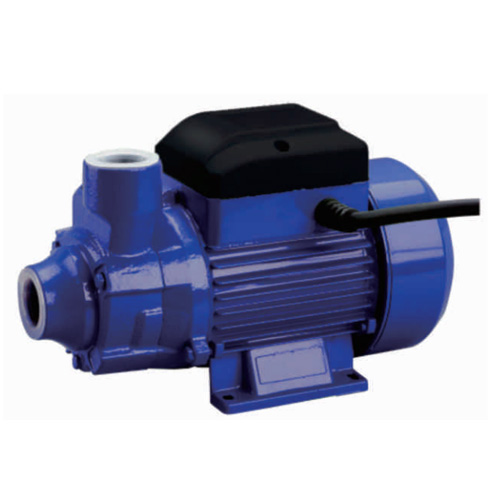

Peripheral pump with cast iron pump head and aluminum motor housing and iron fan cover for clean water application.

It is the best entry basic level product worldwide.

Model No.	QB370HT	QB550HT	QB750HT
Rated Power	350W	550W	750W
Vol&Fre	220V/60Hz	220V/60Hz	220V/60Hz
Max.Head	30m	45m	50m
Max.flow rate	1900l/h	2200l/h	2800l/h
Max. suction height	8m	8m	8m
Max. pressure	3bar	4.5bar	5bar
Max. grain size	1mm	1mm	1mm
Max.Noise(dB)	85	85	85
Dia of connecting pipe.	G1"	G1"	G1"
Cable specification	HO7RN-F3G0.75mm²	HO7RN-F3G1.0mm²	HO7RN-F3G1.0mm²
Length of cable	1m	1m	1m
Max. medium temperature	35℃	35℃	35℃
Qty of Impeller	1PC	1PC	1PC
Single gift box size	27x21x20cm	32x21x20cm	27x21x20cm
Single gross weight	5.5kg	7kg	7.5kg
Qty/20’GP	2468pcs	2083pcs	1348pcs

Clean water
