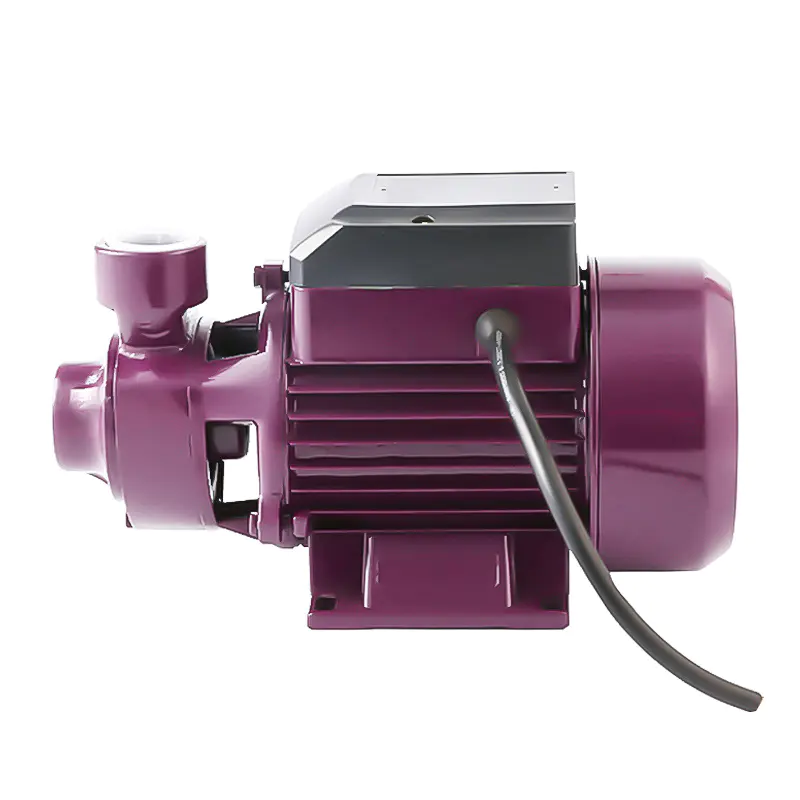

Electric Motor 0.5hp QB60 Peripheral Water Pump

(0 reviews)

Get Price

(123) Views

(0) Contacts

Contact Company

Zhejiang Zheli New Material Co., Ltd

Zhejiang, China

(2223) Views

(0) Contacts

The primary purpose of QB series peripheral pumps is to move pure water or other liquids having properties comparable to those of water. It works well with tiny air conditioners, automatic water sprinkler systems, home water supplies, and other accessories.

Model	Power (kw)	Power (HP)	Inlet/outiet (Inch)	Max Suction (M)	Max Head (M)	Max Flow (M3/h)	Pack dimension (MM)
QB60	0.37KW	0 5HP	1'x 1'	9	35	35	265x130x160
QB70	0.55KW	0.75HP	1'x 1'	9	50	45	325x160x200
QB80	0.75KW	1HP	1'x 1'	9	60	50	325x160x200

NO.	DESCRIPTION	NO.	DESCRIPTION	NO.	DESCRIPTION	NO.	DESCRIPTION
1	pump body	9	"O" ring	17	Rotor	25	Screw
2	"O" ring	10	Blot	18	Split ring	26	Terminal board
3	Charge plug	11	Pump support	19	Back cover	27	Capacitor
4	Impeller	12	Drops guard	20	Fan	28	Terminal box cover
5	Key	13	Bearing	21	Fan cover	29	Screw
6	Snap ring	14	Snap ring	22	Housing
7	Washer	15	Blot	23	Fairlead
8	Mechanical Seal	16	Wound stator	24	Cable presser

                                                            Housing
                                                            Aluminum Alloy

                                                            Shaft
                                                            Carbon Steel/Stainless Steel

                                                            Insulation
                                                            Class b/Class F

                                                            Protection
                                                            IP44/IP54

                                                            Cooling
                                                            External Ventilation

                                                            Pump Body
                                                            Cast Iron(with Brass Insert if required)

                                                            Impeller
                                                            Brass/Stainless Steel

                                                            Mechanical Seal
                                                            SIC/Ceramic/Graphite

Characteristics of Peripheral Water Pump:

Point of Sale
Simple to use
Affordable
Popular in various markets
Quiet
