MSPXXXAM02T Deep Well Pump

(0 reviews)

Get Price

(243) Views

(0) Contacts

100 - 500 pieces 501 - 999 pieces >= 1000 pieces
$120.00 $110.00 $100.00

Contact Company

Junhe Pumps Holding Co., Ltd.

Zhejiang, China

(674) Views

(1) Contacts

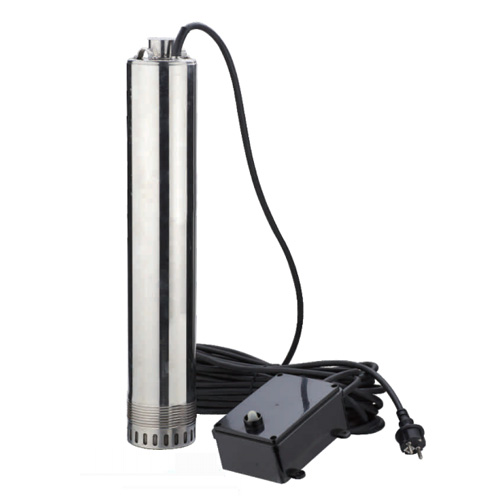

Deep well pump with stainless pump body and multi-stage plastic impellers for clean water only. 20m long cable with plug, 20m nylon rope for lifting the pump up in a well. The control switch box has included an overload protector and capacitor and an on/off waterproof switch. It is one of the best-selling deep well pumps in the European DIY market.

Model No.	MSP750X6AM02T	MSP900X9AM02T	MSP1000X8AM02T
Rated Power	750W	900W	1000W
Vol&Fre	230V/50Hz	230V/50Hz	230V/50Hz
Max. pump height	40m	60m	55m
Max. pump rate	4500l/h	4500l/h	5200l/h
Max.submersible depth	16m	16m	16m
Max. grain size	1.5mm	1.5mm	1.5mm
Max. pressure	4bar	6bar	5.5bar
Dia of connecting pipe	G1"	G1"	G1"
Cable specification	HO7RN-F4G1.0mm²	HO7RN-F4G1.0mm²	HO7RN-F4G1.0mm²
Length of cable	20m	20m	20m
Lowest pump starting level	241mm	321mm	327mm
Lowest pump sucking level	26mm	26mm	26mm
Max. medium temperature	35℃	35℃	35℃
Qty in carton box size	6pcs	9pcs	8pcs
Master carton box size	58.5x37x24.5cm/2pcs	64.5x37x24.5cm/2pcs	65.5x37x24.5cm/2pcs
Master carton box gross weight	25kg	25.5kg	27kg
Qty/20’GP	1058pcs	965pcs	950pcs
