Home / Pumps / Deep well pumps / High Quality Deep Well Submersible Pump

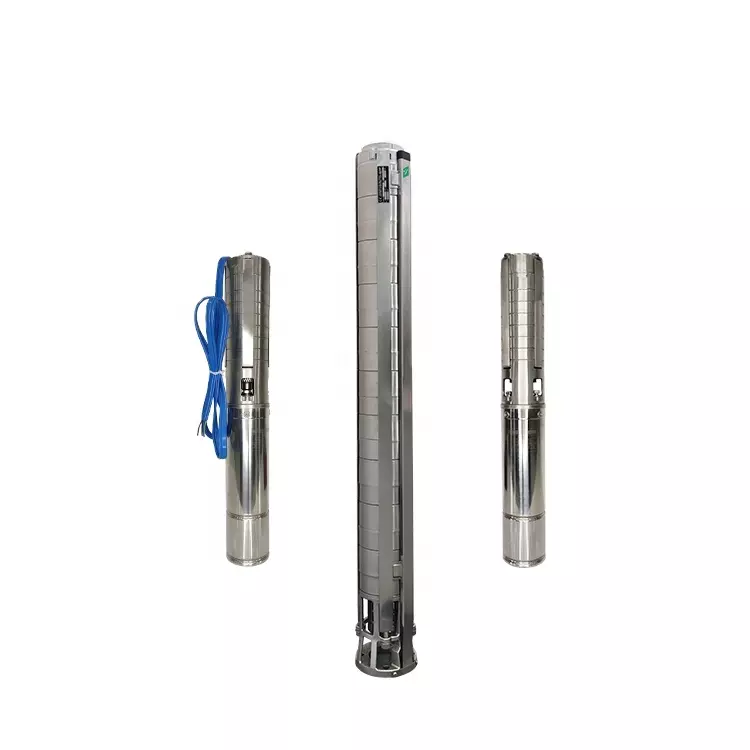

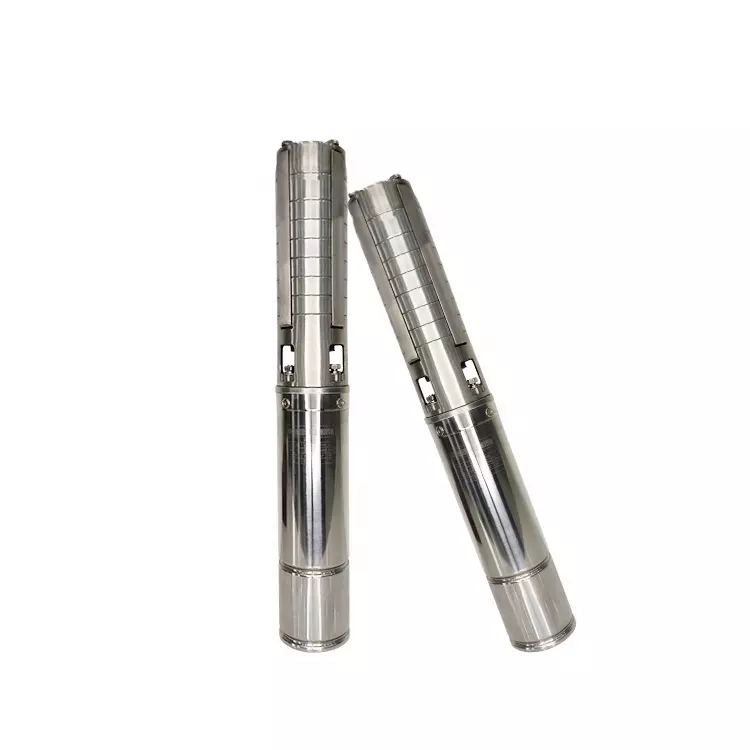

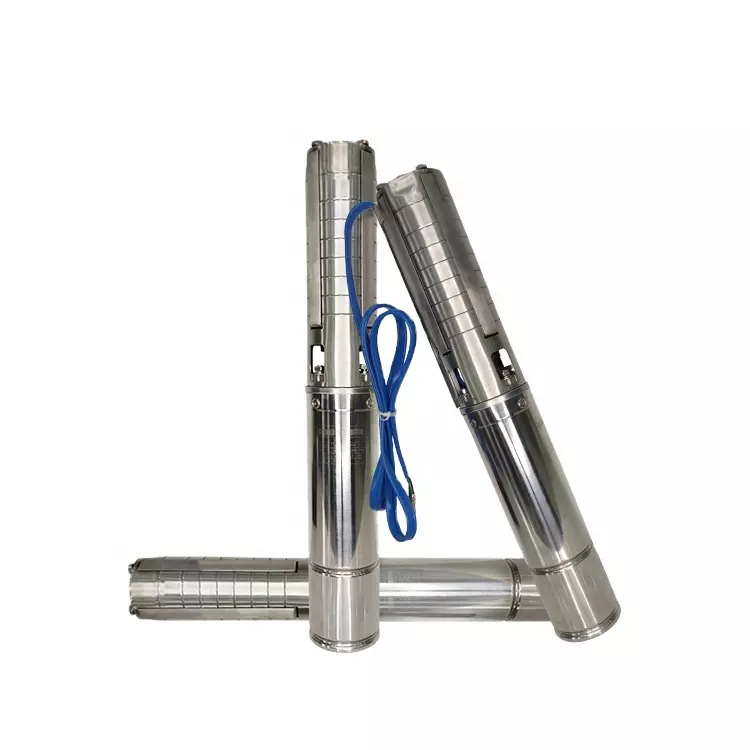

High Quality Deep Well Submersible Pump
(0 reviews)
2257.49 USD
(278) Views
(0) Contacts

2 piece/pieces
$2,257.49 - $6,253.71

Contact Company





Tiger (Hangzhou) Flow Systems Co., Ltd.
Zhejiang, China
(431) Views
(0) Contacts

Operation conditions
Clean, thin, non-corrosive liquid without grain or fiber.
Maximum liquid temperature: 25℃
Maximum working pressure: 38bar
pH: 6.5~8.5
Maximum diving depth: ≤70m
For the sake of the pump running safely and reliably, the user shall install the correct motor protector.
 NEMA Motor
4” Motor Stainless steel(there is a bronze flange or ss flange), oil-filled motor(transformer oil is standard configuration)
Single phase: 0.37kW~2.2kW
Three phases: 0.37kW~7.5kW
6” Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three-phase: 4kW-37kW
8” Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase 5.5kW~110kW
 Curve conditions
Curve tolerance in conformity to ISO9906: 2012Grade3B.
All curves are based on the measured values of 60Hz: constant motor speed 3440r/minor 3500r/min.
All measurements are carried out with gas-free water of temperature 20℃. The curve is applicable to kinematical viscosity 1mm-/s.
In case the density of the liquid conveyed by the pump is higher than that of water, it is necessary to use a corresponding motor of higher output power.
The bold part of the curve means the recommended performance scope.
The performance curve includes loss caused by check valves etc.

Warranty 1 year
Customized support OEM, ODM, OBM
Brand Name CNP
Model Number SJ150
Place of Origin Zhejiang, China
IP Class IP 55
Horsepower 20~150hp
Power Source Electric
Pressure 0~18bar
Structure Multistage Pump
Cable Length 15-30 Feet
Outlet Size 6"
Voltage 220-240V/380-415V, 220-240V/380-415V
Power 15~110KW
Material Stainless Steel
Frequency 60HZ
Weight 103-421KG
Motor TEFC Motor
Feature High Efficiency
Impeller Stainless Steel Material

  • Family Homes
  • Irrigation and Agriculture
  • Water Distribution
  • Water Treatment Solutions
