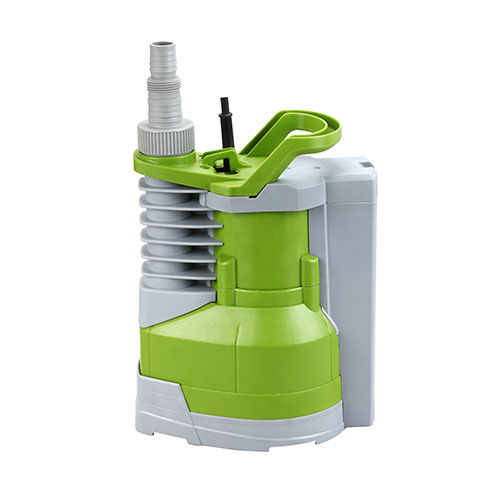

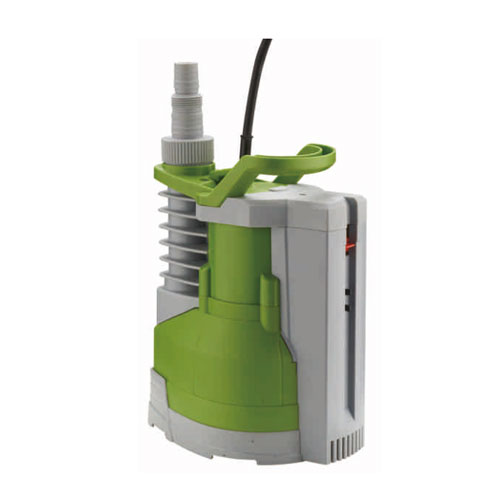

QXXX122 Plastic Submersible Pump With Built-In Float Switch

(0 reviews)

Get Price

(197) Views

(0) Contacts

100 - 500 pieces 501 - 999 pieces >= 1000 pieces
$31. 0 $28. 0 $25. 0

Contact Company

Junhe Pumps Holding Co., Ltd.

Zhejiang, China

(674) Views

(1) Contacts

Plastic submersible pump with built-in float switch for clean water application only.

This pump is equipped with both automatic control mode and manual control mode, you may adjust the switch in which mode you want before using this pump.

Pump

Protection class:IPX8

Max.medium temperature:95℉

Plastic pump body Dia of connecting pipe: G3/4"

Lowest pump starting level: 85mm

Lowest pump sucking level: 28mm

Motor

Insulation class: E AISI 410 shaft

Model No.	Q250122	Q400122	Q550122	Q750122	Q900122
Rated Power	250W	400W	550W	750W	900W
Max.pump height	6.0m	8.0m	8.5m	8.5m	9.5m
Max.pump rate	6000l/h	9000l/h	11000l/h	13000l/h	15000l/h
Max.pressure	0.6bar	0.8bar	0.85bar	0.85bar	0.95bar
Dia of connecting pipe	1"G1-1/4"G-1/2"	1"G1-1/4"G-1/2"	1"G1-1/4"G-1/2"	1"G1-1/4"G-1/2"	1"G1-1/4"G-1/2"
Cable specification	HO5RN-F3G0.75mm²	HO5RN-F3G0.75mm²	HO5RN-F3G0.75mm²	HO5RN-F3G0.75mm²	HO7RN-F3G1.0mm²
Manua control lowest pump starting level	600mm	600mm	600mm	600mm	600mm
Manua control lowest pump sucking level	5mm	5mm	5mm	5mm	5mm
Automatic control start water level	100-180mm	100-180mm	100-180mm	100-180mm	100-180mm
Automatic control close water level	60mm	60mm	60mm	60mm	60mm
Qty in carton box	4pcs	4pcs	4pcs	4pcs	4pcs
Master carton box size	50x38x33cm	50x38x33cm	50x38x33cm	50x38x33cm	50x38x33cm
Master carton box gross weight	18.7kg	19.2kg	22kg	22.2kg	26kg
Qty/20'GP	1788pcs	1788pcs	1788pcs	1788pcs	1788pcs

                                                            Warranty
                                                            1 years

                                                            Cable specification
                                                            HO5RN-F3G0.75mm2

                                                            Brand Name
                                                            OEM

                                                            Certification
                                                            RoHS/Reach/GS

                                                            Customized support
                                                            OEM, ODM

                                                            Pressure
                                                            0.7bar

                                                            Model Number
                                                            Q550B124

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Power Source
                                                            Electric

                                                            Liquid Temperature
                                                            Up to 35 ℃

                                                            Structure
                                                            Single-stage centrifugal

                                                            Pump body
                                                            Plastic

                                                            Cable Length
                                                            10m

                                                            Color
                                                            Green/Accept customization

                                                            Outlet Size
                                                            1"G1"1-1/4"G1-1/2"

                                                            Voltage
                                                            230V~50Hz

                                                            Power
                                                            250W(250/400/550/750/900W)

                                                            Manua Control Lowest pump starting level
                                                            60mm

                                                            Automatic control start water level
                                                            100-180mm

                                                            Manua Control Lowest pump sucking level
                                                            5mm

                                                            Automatic control close water level
                                                            60mm
