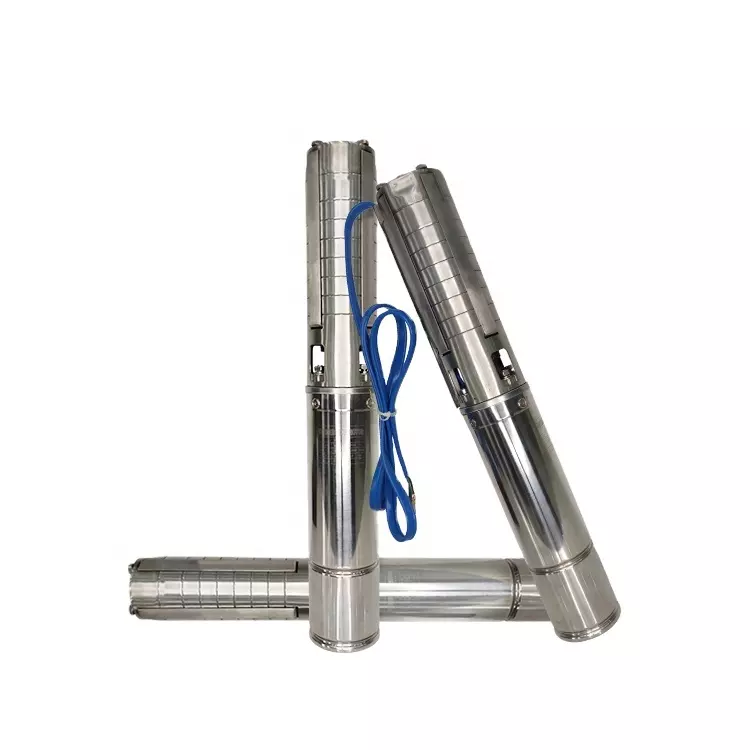

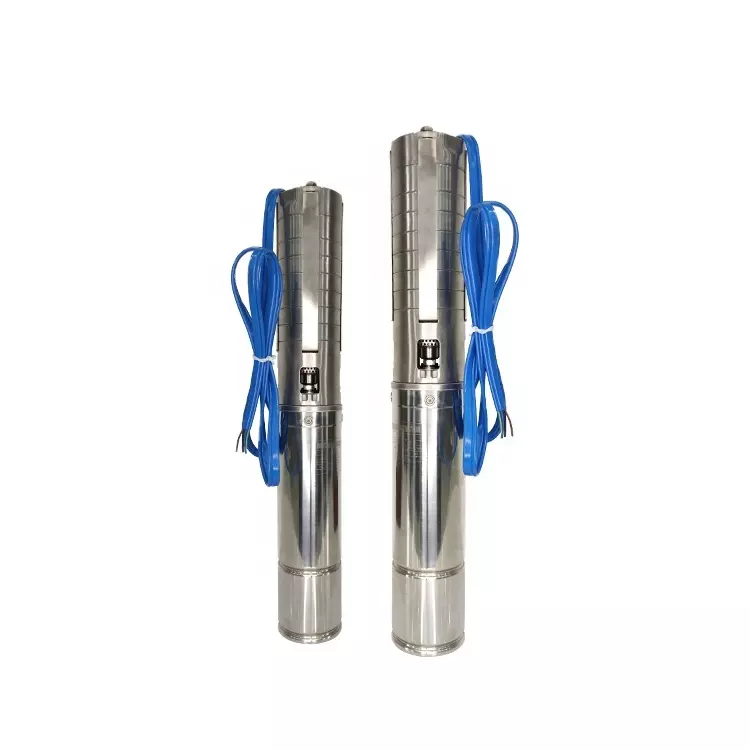

Multistage Deep Well Submersible Water Pumps

(0 reviews)

277.94 USD

(248) Views

(0) Contacts

2 piece/pieces

$277.94 - $581.21

Contact Company

Tiger (Hangzhou) Flow Systems Co., Ltd.

Zhejiang, China

(461) Views

(0) Contacts

Operation conditions
Clean, thin, non-corrosive liquid without grain or fiber.
Maximum liquid temperature: 25℃
Maximum working pressure: 38bar
pH: 6.5~8.5
Maximum diving depth: ≤70m
For the sake of the pump running safely and reliably, the user shall install the correct motor protector.
NEMA Motor
4” Motor Stainless steel(there is a bronze flange or ss flange), oil-filled motor(transformer oil is standard configuration)
Single phase: 0.37kW~2.2kW
Three phases: 0.37kW~7.5kW
6” Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three-phase: 4kW-37kW
8” Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase 5.5kW~110kW
Curve conditions
Curve tolerance in conformity to ISO9906: 2012Grade3B.
All curves are based on the measured values of 60Hz: constant motor speed 3440r/minor 3500r/min.
All measurements are carried out with gas-free water of temperature 20℃. The curve is applicable to kinematical viscosity 1mm-/s.
In case the density of the liquid conveyed by the pump is higher than that of water, it is necessary to use a corresponding motor of higher output power.
The bold part of the curve means the recommended performance scope.
The performance curve includes loss caused by check valves etc.

                                                            Warranty
                                                            1 year

                                                            Customized support
                                                            OEM, ODM, OBM

                                                            Brand Name
                                                            CNP

                                                            Model Number
                                                            SJ3

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Horsepower
                                                            0.5HP-5.5HP

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            25bar

                                                            Structure
                                                            Single-stage Pump

                                                            Cable Length
                                                            15-30 Feet

                                                            Outlet Size
                                                            DN100

                                                            Voltage
                                                            220V/380V

                                                            Power
                                                            0.37KW-4KW

                                                            Material
                                                            stainless steel

                                                            Flow Rate
                                                            0.6m3/h-4.6m3/h

                                                            Supply Capacity
                                                            10000 pcs/year

                                                            Weight
                                                            12KG-32KG

                                                            IP Class
                                                            IP 55

                                                            Impeller
                                                            Stainless Steel Material

                                                            Motor
                                                            TEFC Motor

                                                            Certification
                                                            CE
