Membrane Bioreactor (membrane Bioreactor, MBR) is a Membrane technology combining wastewater treatment with biochemical technology, also known as the Membrane separation activated sludge process.
Is a kind of biochemical processing technology by membrane filter instead of the traditional secondary sedimentation tank and sand filter in water treatment technology.
Compared with the traditional active sludge process,

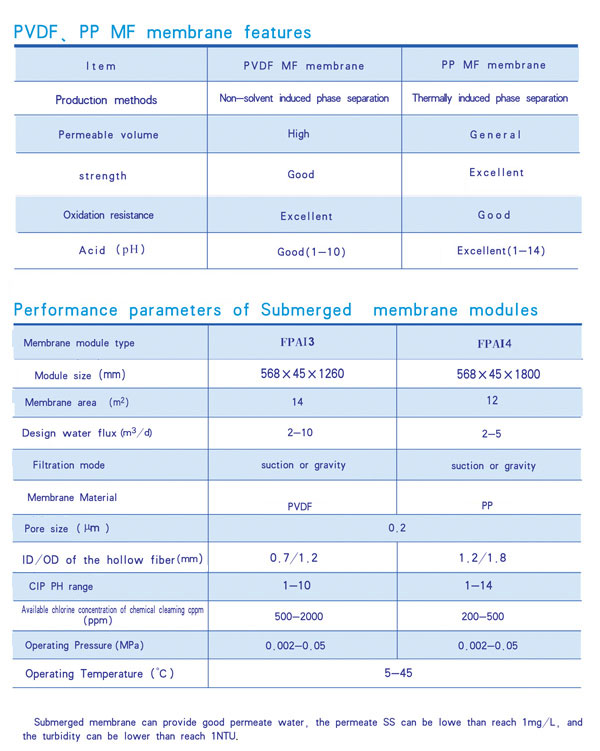

                                                            Membrane Model
                                                            FPA2000

                                                            Skid
                                                            ABS

                                                            Dimension(mm)
                                                            568×45×2000

                                                            Operating Temperature (°C)
                                                            5-45

                                                            Membrane Area (m2)
                                                            18

                                                            Operating Pressure(Mpa)
                                                            0.01-0.05

                                                            Pure water flux( L/h·m2·0.1MPa)
                                                            300

                                                            Tensile strength
                                                            ≥200N

                                                            Design Flux( L/h·m2·0.1MPa)
                                                            10-30

                                                            Chemical cleaning PH range
                                                            2-12

                                                            Inside and outside diameters of hollow fiber(mm)
                                                            1.0/2.3

                                                            Filtration Mode
                                                            Suction

                                                            Membrane Material
                                                            Modified PVDF(polymer/PET braid)

                                                            Filter precision (um)
                                                            0.2

The traditional sewage treatment upgrading and reconstruction
Urban wastewater
Sewage treatment
Industrial wastewater treatment
Garbage penetrating fluid processing
Water reuse

MBR wastewater treatment has the following advantages:
1, outlet water quality is good
2, less quantity of sludge
3, the equipment is compact and covers an area of less
The core is a membrane in a membrane bioreactor, needed while maintaining the high flux membrane with high strength.
