MBR Film membrane

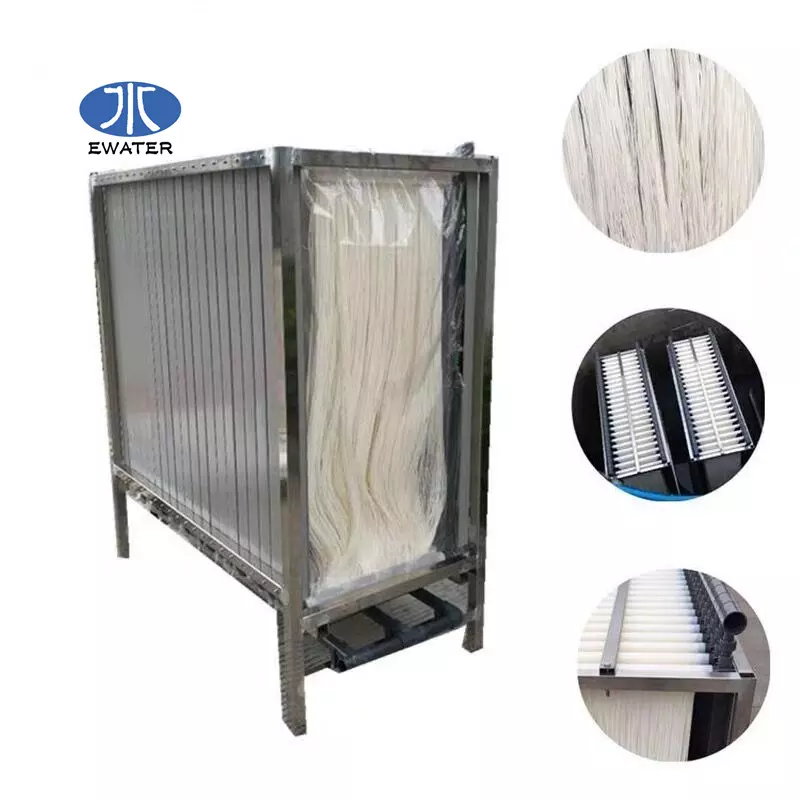

The membrane assembly is composed of a membrane unit, a central production pipe, a tight sealing piece, two end plates, a tight-sealing cover, a lock nut, and an O-type sealing ring.
Membrane  module specifications: common specifications for two kinds of
6.25 M2 and 12.5MT
6.25 M2 size: 707X256X256
12.5 M2 size: 1221X256X256
Note: special specifications, can be customized according to customer requirements.

                                                            Core Components
                                                            PLC

                                                            Membrane aera
                                                            12.5 square meters

                                                            Place of Origin
                                                            Jiangsu, China

                                                            Membrane Model
                                                            1X1

                                                            Brand Name
                                                            EWT

                                                            Material
                                                            carton box, PVDF PTFE

                                                            Weight
                                                            30kg

                                                            Size
                                                            customize

                                                            Productivity
                                                            500L/Hour

                                                            Weight (KG)
                                                            30 kg

                                                            Precision
                                                            0.1-0.4um

                                                            Welding type
                                                            Ultrasonic welding seal

                                                            Central water producing hole
                                                            Dia 50

                                                            Shape
                                                            Square

                                                            Running type
                                                            Suction type

                                                            Combine
                                                            Layer guide cloth +2 layers of film cloth + film
