Flanged Globe Valve

(0 reviews)

(571) Views

(0) Contacts

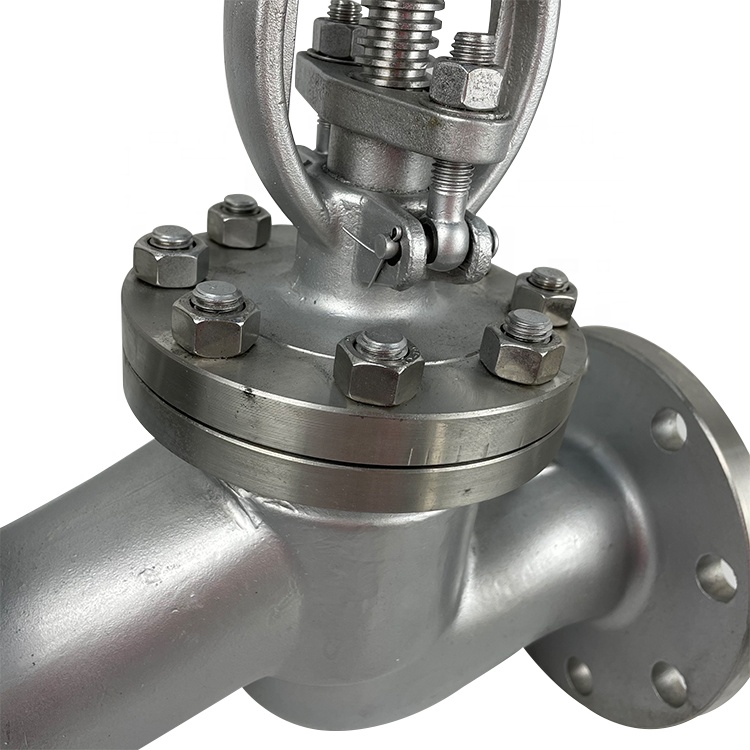

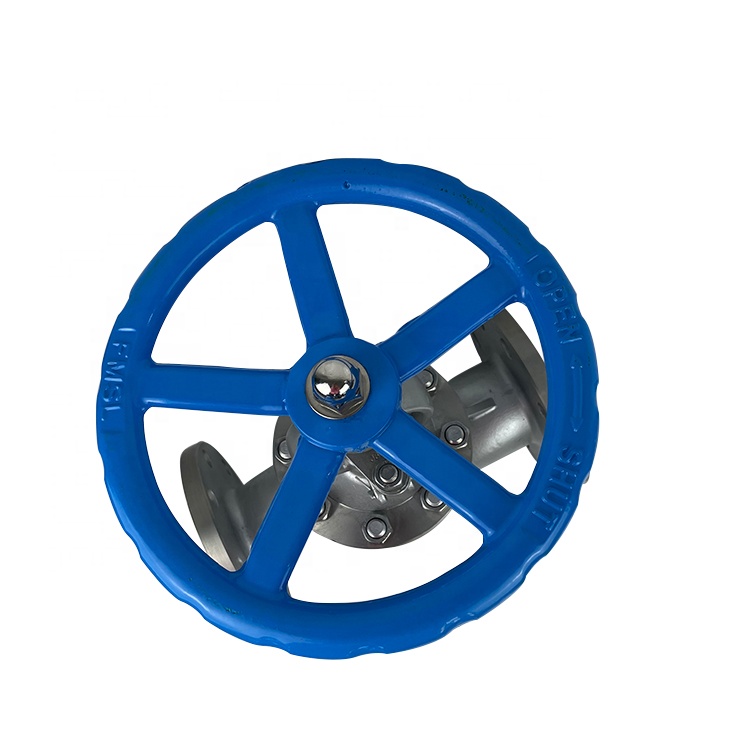

Stainless steel globe valve belongs to a kind of globe valve, because it is made of stainless steel material, so it is called stainless steel globe valve. It is mainly composed of valve body, disc, cover, stem etc.

$30.00 - $150.00/ case|1 case/cases(Min. Order)

Contact Company

Gongyi Runda Pipeline Manufacturing Co., Ltd.

Henan, China

(2285) Views

(4) Contacts

                                                            Type
                                                            Globe Valves

                                                            Origin
                                                            Henan, China

                                                            Brand Name
                                                            RUNTAIDA

                                                            Working pressure
                                                            Stainless steel 301,304,316, WCB.

                                                            Working pressure
                                                            PN16 - 160

                                                            Working Temperature
                                                            -29 - 550°C

Stainless steel globe valve series products, mainly used to cut off (or connect) pipeline medium.
It is suitable for nitric acid and acetic acid in chemical industry

① The tensile strength of the valve body is 450MPa, the elongation is more than 10%, and it is not easy to crack ② The inside and outside of the valve body are electrostatic coated with powder epoxy resin, and the thickness of spray paint is 250um to prevent corrosion and rust of the valve body ③ The valve plate is wrapped with EPDM rubber, and the rubber is firmly connected with the valve plate ④ The valve stem is made of 2Cr13 material and is designed with three "O" rings to reduce the friction resistance and avoid leakage ⑤ The valve stem nut and positioning device are made of brass material, which makes the switch smooth and avoids jamming during operation
