Hybrid Solar Energy Storage Inverter

(0 reviews)

Get Price

(155) Views

(0) Contacts

3 Phase 8kw Hybrid Inverter 100kw Hybrid Solar Energy Storage Containers deye Inverter 100kw for System

Contact Company

Yongkang Haoyu Solar Energy Co., Ltd.

Zhejiang, China

(636) Views

(5) Contacts

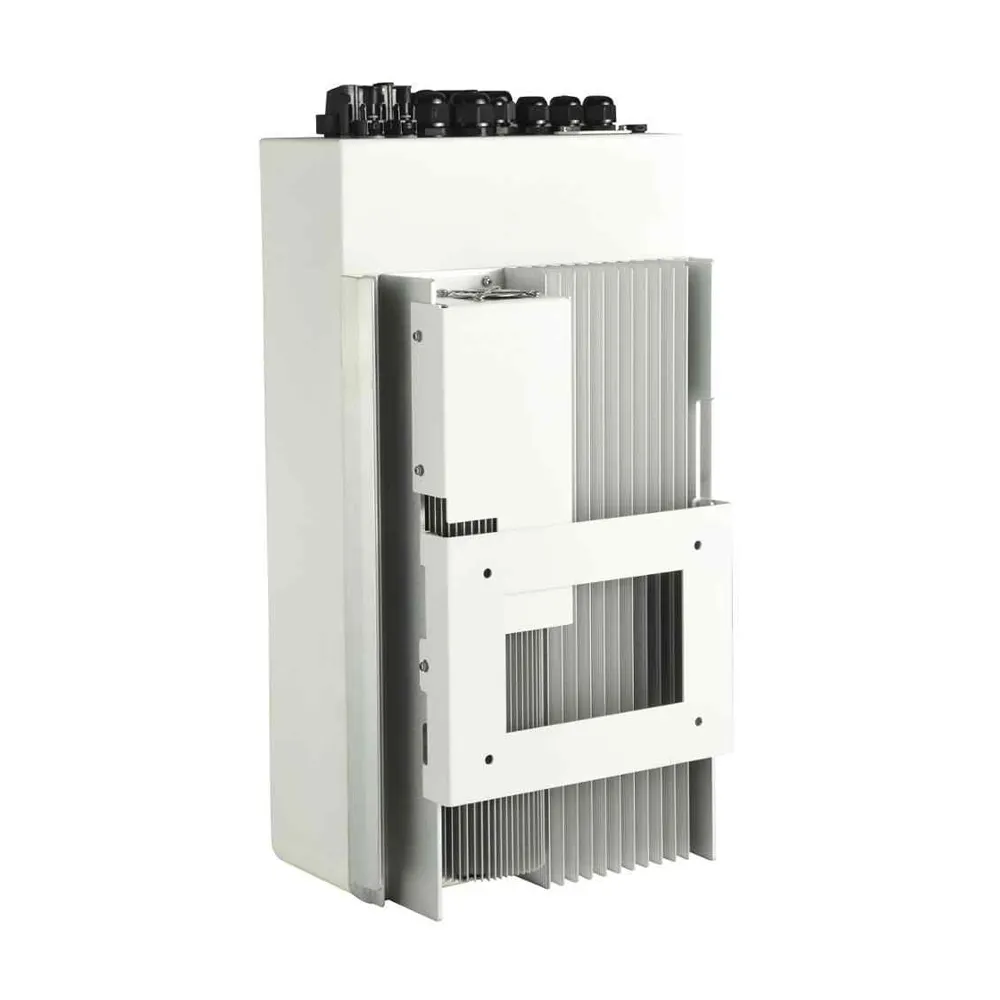

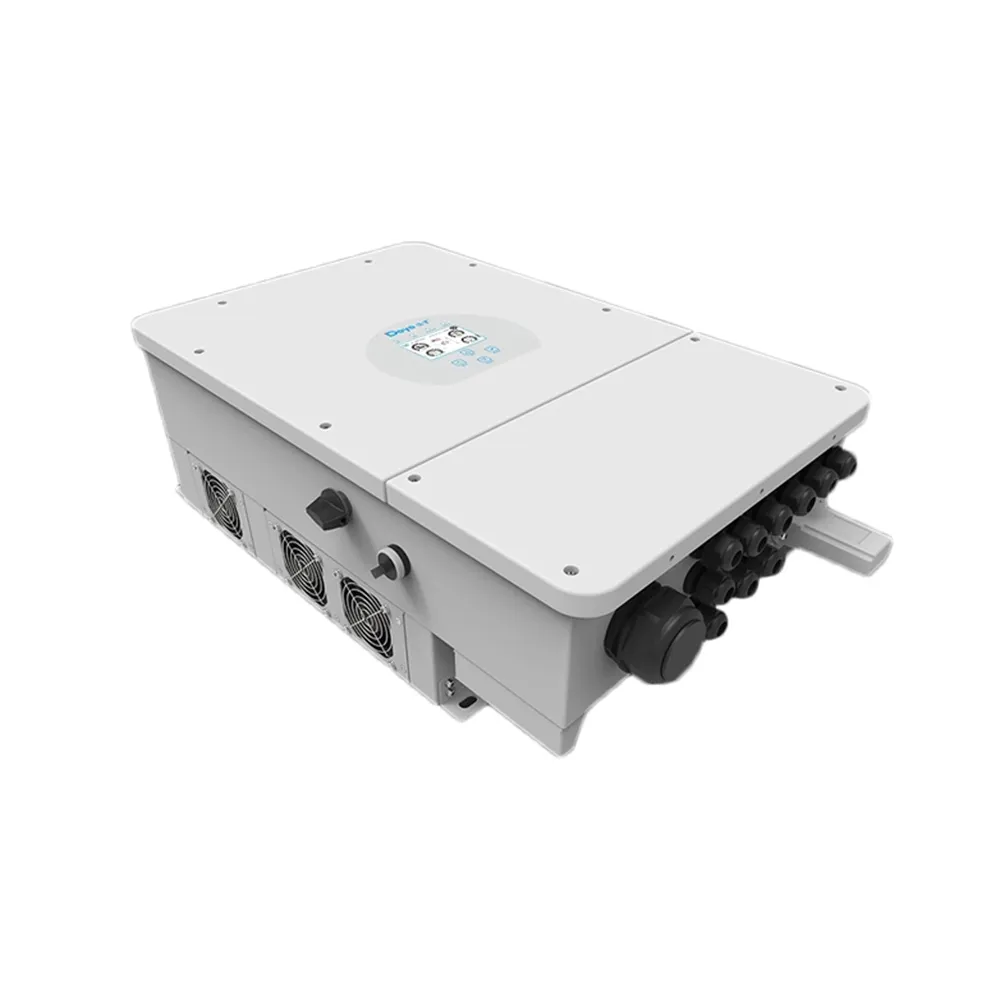

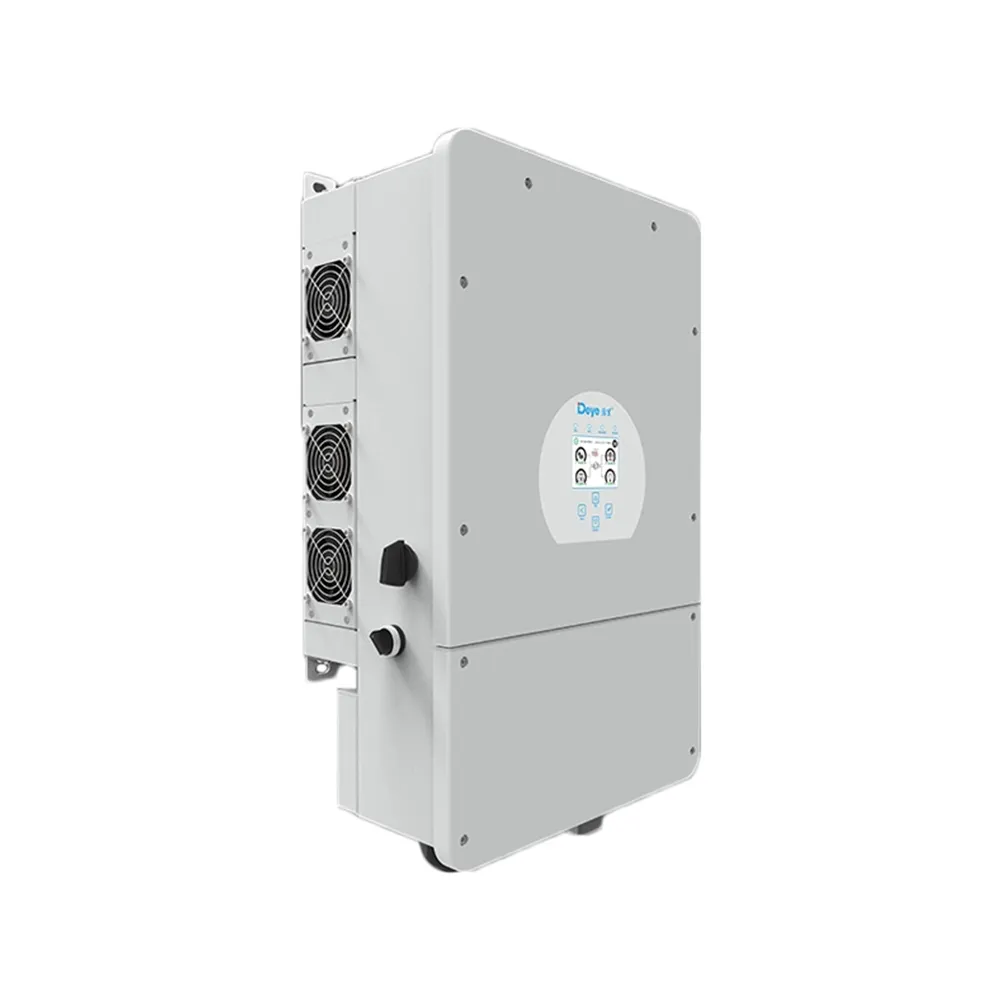

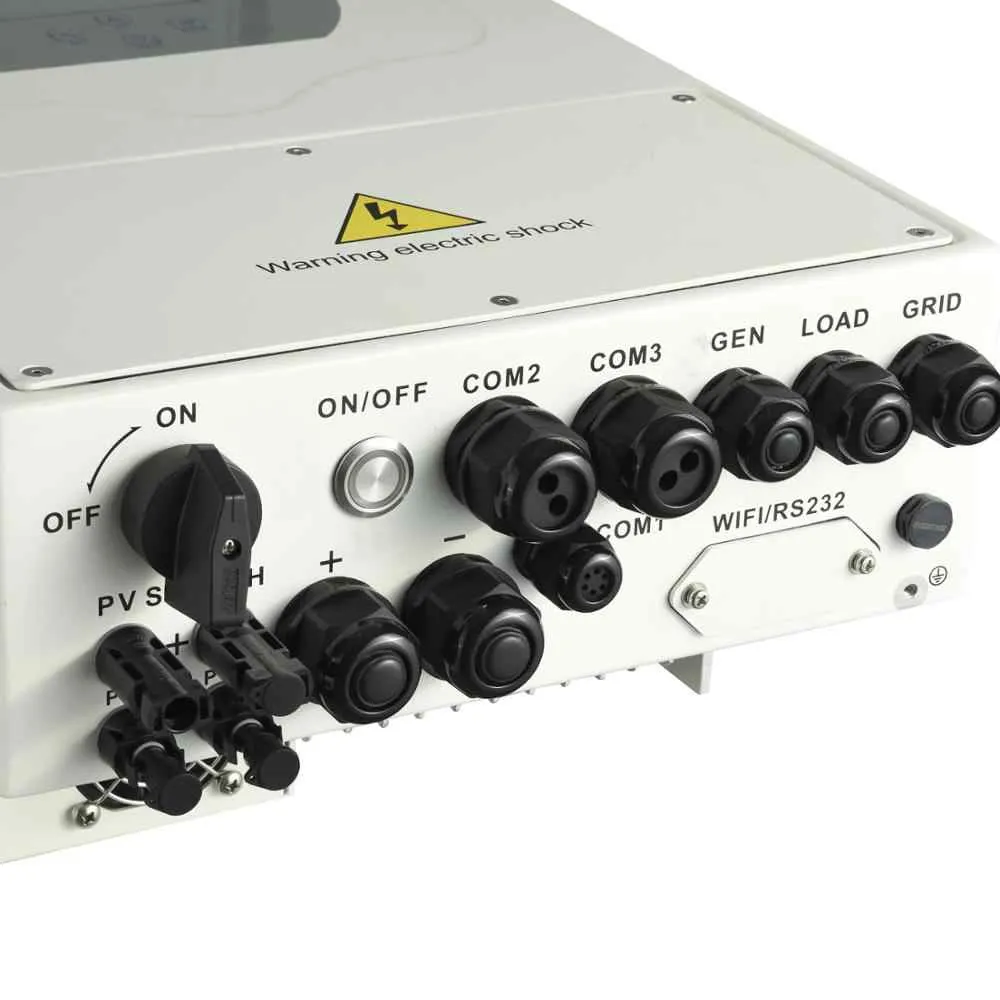

The multipurpose Deye hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU combines the capabilities of an inverter, solar charger, and battery charger to provide an uninterruptible power supply in a portable package. Battery charging, AC/solar charging, and an appropriate input voltage based on various uses are just a few of the user-configurable and easily accessible buttons on its extensive LCD display.

Technical Datasheet

Model	SUN-7.6K-SG01LP1-EU	SUN-8K-SG01LP1-EU
Battery Input Data
Max. Charging Current (A)	190A		190A
Max. Discharging Current (A)	190A		190A
PV Strings Input Data
Max. DC Input Power (W)	9880W	10400W
AC Output Data
Rated AC Output and UPS Power (W)	7600W		8000W
Max AC Output Power (W)	8360W		8800W
Max. AC Current (A)	38A	40A

                                                            Operating Temperature Range (℃)
                                                            -25~60℃, >45℃ Derating

                                                            Warranty
                                                            5 years

                                                            Cooling
                                                            Fan

                                                            Noise (dB)
                                                            <30

                                                            Communication with BMS
                                                            RS485; CAN

                                                            Weight (kg)
                                                            32

                                                            Installation
                                                            Style Wall-mounted

                                                            Size (Length*Width*Height mm)
                                                            670×420×233mm

                                                            Protection Degree
                                                            IP65

                                                            Grid Regulation
                                                            VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727

                                                            EMC
                                                            EN61000-6-1, EN61000-6-3

                                                            Safety Regulation
                                                            IEC62109-1, IEC62109-2

                                                            Max.Efficiency
                                                            97.60%

                                                            MPPT Efficiency
                                                            99.90%

                                                            Euro Efficiency
                                                            97.00%

                                                            Grid Type
                                                            Single Phase

                                                            Current Harmonic Distortion
                                                            THD<3%(Linear load<1.5%)

                                                            Max Continuous AC Passthrough(A)
                                                            50A

                                                            Power Factor
                                                            0.8 leading to 0.8 lagging.

                                                            Peak Power (off-grid)
                                                            2 times of rated power,10S

                                                            PV Input Voltage (V)
                                                            370V(100V~500V)

                                                            MPPT Range (V)
                                                            125-425V

                                                            Full Load DC Voltage Range
                                                            240-425V

                                                            No.of Strings Per MPPT Tracker
                                                            2+2

                                                            No.of MPPT Trackers
                                                            2

                                                            Start-up Voltage (V)
                                                            150V

                                                            PV Input Current (A)
                                                            18A+18A

                                                            Charging Curve
                                                            3 Stages/Equalization

                                                            External Temperature Sensor
                                                            Optional

                                                            Charging Strategy for Li-Ion Battery
                                                            Self- adaptation to BMS

                                                            Battery Type
                                                            Lead-acid or Lithium-iron

                                                            Battery Voltage Range (V)
                                                            40-60V

                                                            AC Output Rated Current (A)
                                                            33A

Characteristics of Hybrid Solar Inverter :

Supports a single-phase solar system with 220, 230, and 240 VAC.
Self-consumption and grid feedback.
The AC will automatically restart when it recovers.
A programmable grid or battery supply priority.
Multiple programmable modes of operation include UPS, off-grid, and on-grid.
Battery charging voltage and current can be adjusted by LCD setting according to applications.
Priority of AC, solar, and generator chargers can be adjusted via an LCD setting.
Both generator power and mains voltage are compatible.
Protection against overload, overheating, and short circuits.
An intelligent battery charger that maximizes battery performance.
Prevent excessive power overflow to the grid by using the limit function.
WIFI monitoring is supported, and two strings of MPP trackers are built in.
Three-stage smart settable MPPT charging for the best possible battery performance.
The function of time of use.
An intelligent load function.
