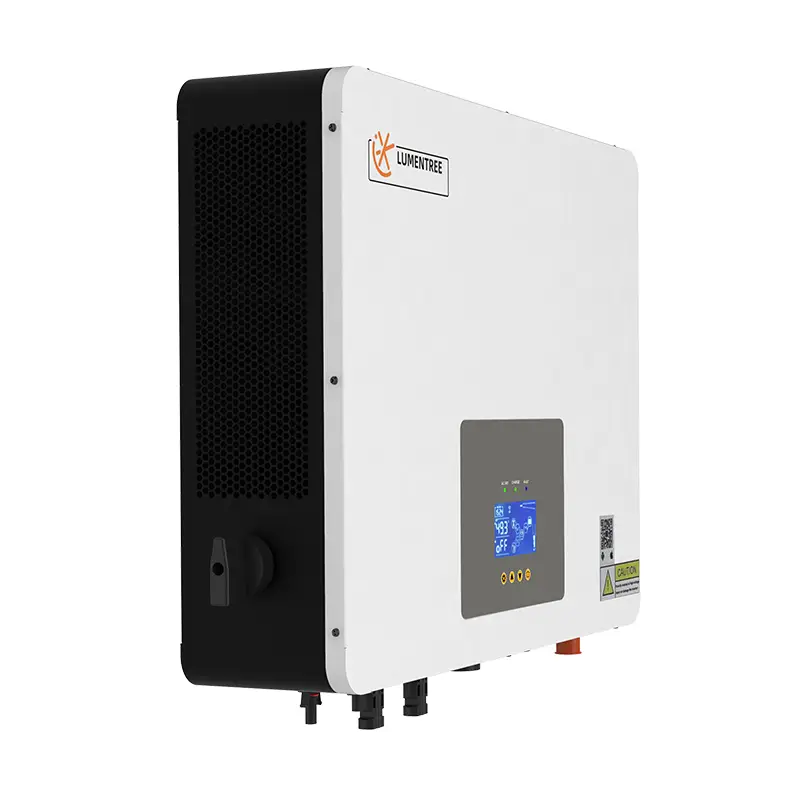

LUMENTREE 5.5KW Single Phase Inverter, featuring 1 MPPT (Power Point Tracking), is characterized by its efficient and precise power optimization capabilities. With high voltage and current capabilities reaching up to 120A, the inverter is well-suited for a range of applications. The inclusion of a single MPPT controller allows the inverter to dynamically adjust the operating point of the solar panels to maximize power output. Operating in a DC-coupled system, the Hybrid Inverter boasts a rapid 4ms switching time, providing uninterrupted power supply (UPS) functionality. Its efficiency of up to 97.6% ensures the utilization of energy resources.

                                                            Model
                                                            SUNT-5.5KW-T

                                                            Max Power
                                                            5500W

                                                            Rated output voltage
                                                            220V

                                                            Battery Input Range
                                                            40-60V MPPT

                                                            Voltage Range
                                                            120-450V

                                                            Max. Output Current
                                                            24A

                                                            Output type
                                                            Single phase

                                                            Operating Temperature
                                                            -20°C-45°C

Advantages of Hybrid Inverter

Built-in WIFI and bluetooth

Connect to a specially designed 'LightEarth' APP via a built-in WIFI logger or Bluetooth connection to perform easy remote monitoring and controlling of the unit.
