The ZW700B/X-UF-10600 preservation of the environment X brand (suez), a pioneer in membrane technology, offers the most cutting-edge ultrafiltration technology available by utilizing decades of research, development, and operational experience.With decades of research, development, and operational expertise, X brand (suez), a pioneer in membrane technology, provides the most cutting-edge ultrafiltration technology available.

                                                            Filtrate Flow
                                                            3-6m3/h

                                                            Filtrate Turbidity
                                                            ≤0.1NTU

                                                            Filtrate SDI15
                                                            ≤3

                                                            Type Configuration
                                                            Capillary Ultra filtration Module

                                                            Size
                                                            φ250*1687

                                                            Membrane Polymer
                                                            PES

                                                            Nominal Membrane Area
                                                            60m2

                                                            Nominal pore size
                                                            ≤0.02μm

                                                            Fiber Dimensions
                                                            ID 1.0mm

                                                            Typical Filtrate Flux Range
                                                            60-120L/m/h

                                                            Maximum Applied Feed Pressure
                                                            0.5Mpa

                                                            Maximum Tranmembrane Pressure
                                                            0.25Mpa

                                                            Maximum Backwash Pressure
                                                            0.25Mpa

                                                            Operating Temperature Range
                                                            5-40℃

                                                            Sodium Hypochlorite
                                                            MAX: 200 ppm, 200000ppm hours cumulative

                                                            Ph Operating Range
                                                            2-11 (During Chemical Washing 1-13)

                                                            Operating Module
                                                            Inside to Outside Filtration

                                                            Backwash Frequency
                                                            20-60 minutes

                                                            Backwash Flux
                                                            200-250 L/m2/h

                                                            Backwash Duration
                                                            30-60 seconds

Benefits of Ultrafiltration Membrane

UF membrane: best for eliminating germs, viruses, and particulates
Seven-bore PES membrane fibers: these fibers offer superior mechanical strength (more than ten times that of single fibers) and chemical resistance.

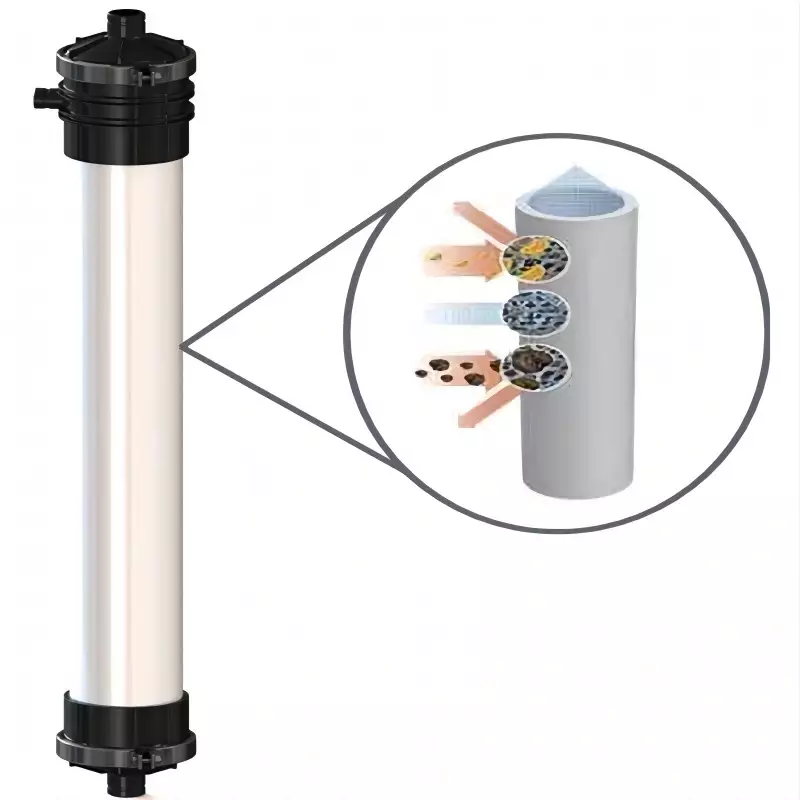

Inside-Out filtering – gets rid of the air scouring step and other necessary machinery.
