Winder High Flow FRP Cartridge Filter Housing 8" 150 PSI, End Port/Side Port – 20/40/60 Inch

Contact Company

Hebei ChengDa Water Technology Co., Ltd.

Hebei, China

(806) Views

(20) Contacts

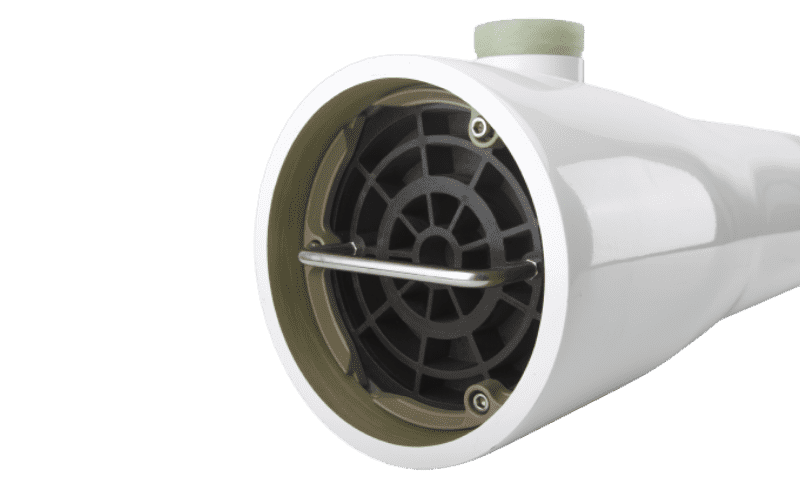

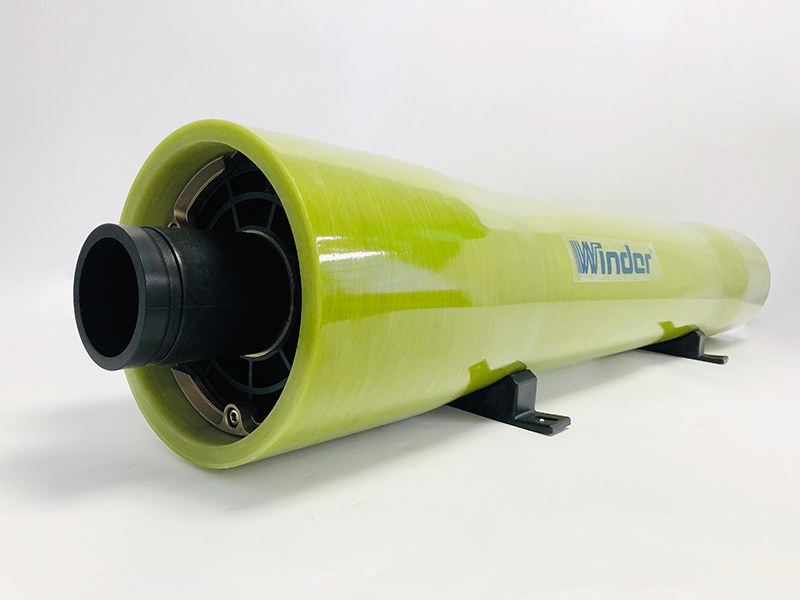

High-flow FRP filter housing is designed for cartridge filters used in the RO water treatment systems. Our products are capable of building in high-flow cartridge filters with sizes of 20", 40", and 60". Featured by easy installation and low maintenance cost, it has become the most popular design in the reverse osmosis system at home and abroad. Compared with stainless steel filter housing, it is more resistant to a strong-acid, strong base, bath solution, chlorine alkali, concentrate, landfill leachate, and other special medium environments.

Winder 8" 150psi FRP high flow cartridge filter housing data

Model	Weight (kg)	Dimension (m)	CBM	Output flow rate (T/H)
W80E150-20 housing	18	0.250.250.789	0.057	15-25
W80E150-40 housing	21	0.250.251.297	0.088	30-50
W80E150-60 housing	25	0.250.251.805	0.119	50-70

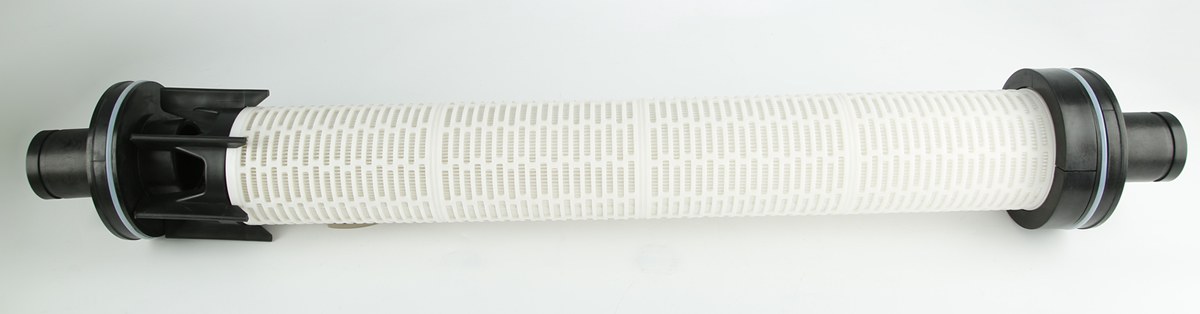

High-flow cartridge filter element data

Model	Weight (kg)	Dimension (m)	CBM
20-inch element	1.2	0.160.160.508	0.013
40-inch element	2.4	0.160.161.016	0.026
60-inch element	3.6	0.160.161.524	0.039

                                                            Warranty
                                                            two years warranty for housing body against industry defects, one year warranty for spare parts.

                                                            Filter material
                                                            polypropylene.

                                                            Support material
                                                            Polypropylene

                                                            End cap material
                                                            reinforced polypropylene.

                                                            Filtration accuracy
                                                            1, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100 um.

                                                            Life time
                                                            depends on the water quality. Usually around 3 months.
