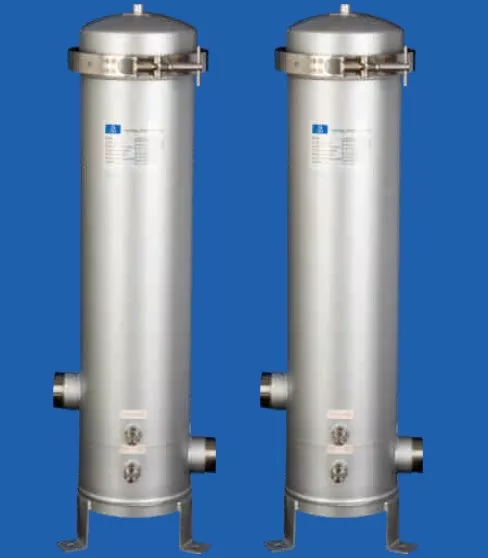

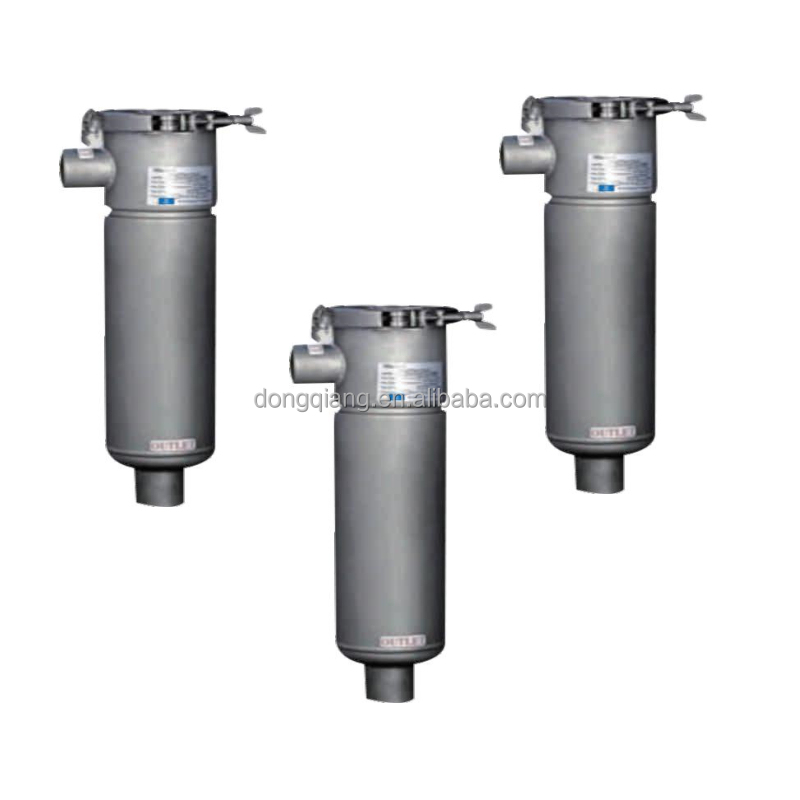

Stainless Steel Cartridge Filter Housing

(0 reviews)

Get Price

(809) Views

(0) Contacts

1 piece/pieces

$100.00 - $800.00

Contact Company

Zibo Dongqiang Membrane Technology Co., Ltd.

Shandong, China

(4030) Views

(52) Contacts

Specification
Max. Operating pressure: 150 psi(10 bar) at 250 ℉(120 ℃).
Max. Operating temperature: 250 ℉(120 ℃).
Sealing material: standard Buna-N ( EPDM/Viton/Teflon is available).
Finishing: standard poly coat ( glass bead blasting/ electropolishing is available).
Connection: standard MNPT (MBSP/Victaulic coupling/RF flange is available).
Cartridge length: 10”/20”/30”/40”
Quantity of cartridges: 3,4,5 and 7 rounds.
Cartridge type: 10” to 40” melt-blown and string wound type.

                                                            Productivity
                                                            1000L/Hour

                                                            Filter Media
                                                            melt blown,string woun

                                                            Warranty
                                                            1 Year

                                                            Warranty of core components
                                                            1 Year

V-Band clamp top closure to allow quick filter cartridge changing.
Side inlet and outlet.
Designed for commercial and industrial applications. Different connections such as NPT, flange, and Victaulic coupling are available.
Built-in 1/2” air vent,1/2” gauge ports, and 1/2” drain.
The construction material of SUS304 and SUS316L is available.
Cups and springs are supplied as standard to eliminate by-pass filtration.
Standard housing accepts 2.5” DOE filter cartridges.
