UVC RO Water Purifier

(0 reviews)

Get Price

(82) Views

(0) Contacts

Contact Company

Shenzhen Hechuang Hitech CO., LTD.

Shenzhen, China

(287) Views

(0) Contacts

99.999% disinfection rate

Long carbon filtration time ensures the safety of drinking water and overcomes the problem of excessive bacteria.
The filtration precision is 0.0001m, and the wastewater ratio is low, allowing for a higher drinking water demand.
The snap-type filter core is simple to install.
The sterilizing module has a long service life and is inexpensive.

                                                            Module No.
                                                            HC-JS-75A

                                                            Sterilization Mode
                                                            UVC-LED

                                                            Sterilization Module
                                                            40mW, SS304

                                                            Burst Pressure
                                                            ≥2.76MPa or 4 times of the highest working pressure

                                                            Filtration System
                                                            CSM RO-75G , Integrated Composite Filter Core, Integrated Rear Carbon Filter Core

                                                            Machine Pressure Resistance  (excluding pressure barrel)
                                                            1.2MPa

                                                            Power
                                                            Input: 100~240VAC Output: 24VDC 1.50A

                                                            Water Source
                                                            Municipal Water

                                                            Solenoid Valve Washing
                                                            24VDC 200mA 250 Insert Fin

                                                            Working Pressure
                                                            0.4--0.7MPa

                                                            Size
                                                            435*125*390mm

                                                            Solenoid Valve Water Inlet
                                                            24VDC 200mA 250 Insert Fin

                                                            PH Value
                                                            No less than 8.0

                                                            Adaptable Ambient Temperature
                                                            4--38℃

                                                            Sterilization Rate
                                                            99.999%

                                                            High Pressure Switch
                                                            Quick Connect Interface 1/4O.D. 187 Insert Fin

                                                            Purified Water Volume
                                                            260mL/min

                                                            Desalination Rate
                                                            More than 96%

                                                            Adaptable Water Temperature
                                                            5--38℃

                                                            Rated Total Purified Water Volume
                                                            2m³

                                                            Booster Pump
                                                            Booster Pump (24V/2.5A) L6.2-2Y

                                                            Relative Humidity
                                                            No more than 90%(25℃)

                                                            TDS Value(PPM)
                                                            The ratio of raw water to purified water is about 100：5 (for reference)

                                                            Touch Spring
                                                            Dia. 0.5mm; ￠11 Height 15~17mm

                                                            Low Pressure Switch
                                                            Null

                                                            Residual Chlorine(PPM)
                                                            < 0.01

                                                            Display Panel (with TDS water quality display)
                                                            80*46*1.2mm XHB-8PIN

                                                            Water Hammer Test
                                                            No water leakage with repeating 100000 times Under the working pressure of 0 ~ 1.04MPa

Functions:
The built-in UVC-LED Sterilization Module of the Reverse Osmosis Water Purifier disinfects drinking water. Ultraviolet disinfection employs high-intensity short-wavelength (250-280nm) light to inactivate germs by damaging nucleic acid and DNA, rendering them incapable of playing a key role in cell function. As a result, ultraviolet has become one of the most rapidly expanding disinfection technologies.(Cocci, Bacilli, Vibrio, Spirillum, and other organisms are eliminated.)

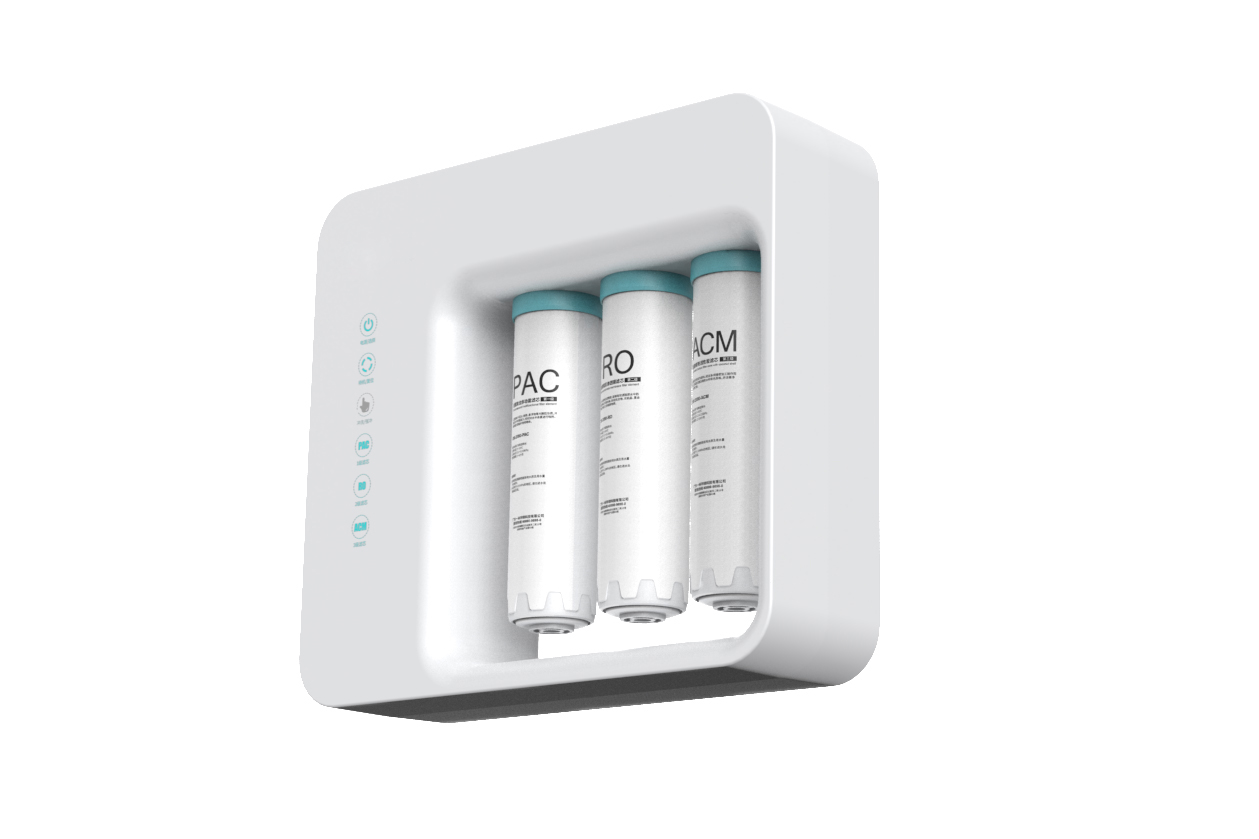

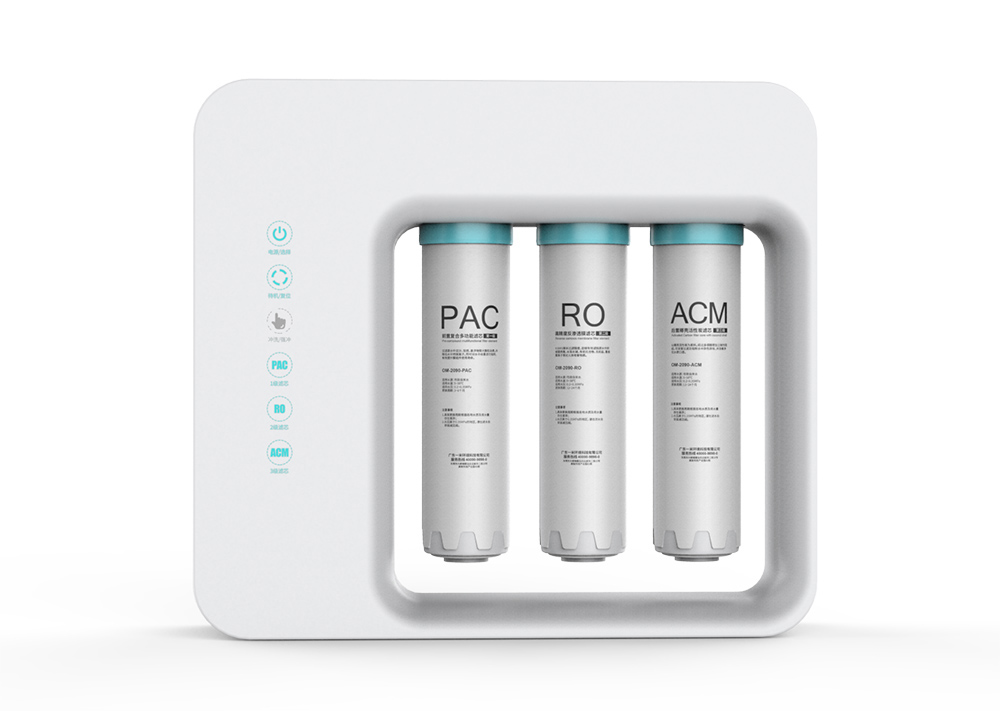

The Reverse Osmosis Water Purifier features a three-stage filtration system:
1. Composite scale inhibition filter Core
2. membrane for RO
3. The core of the post-carbon filter
