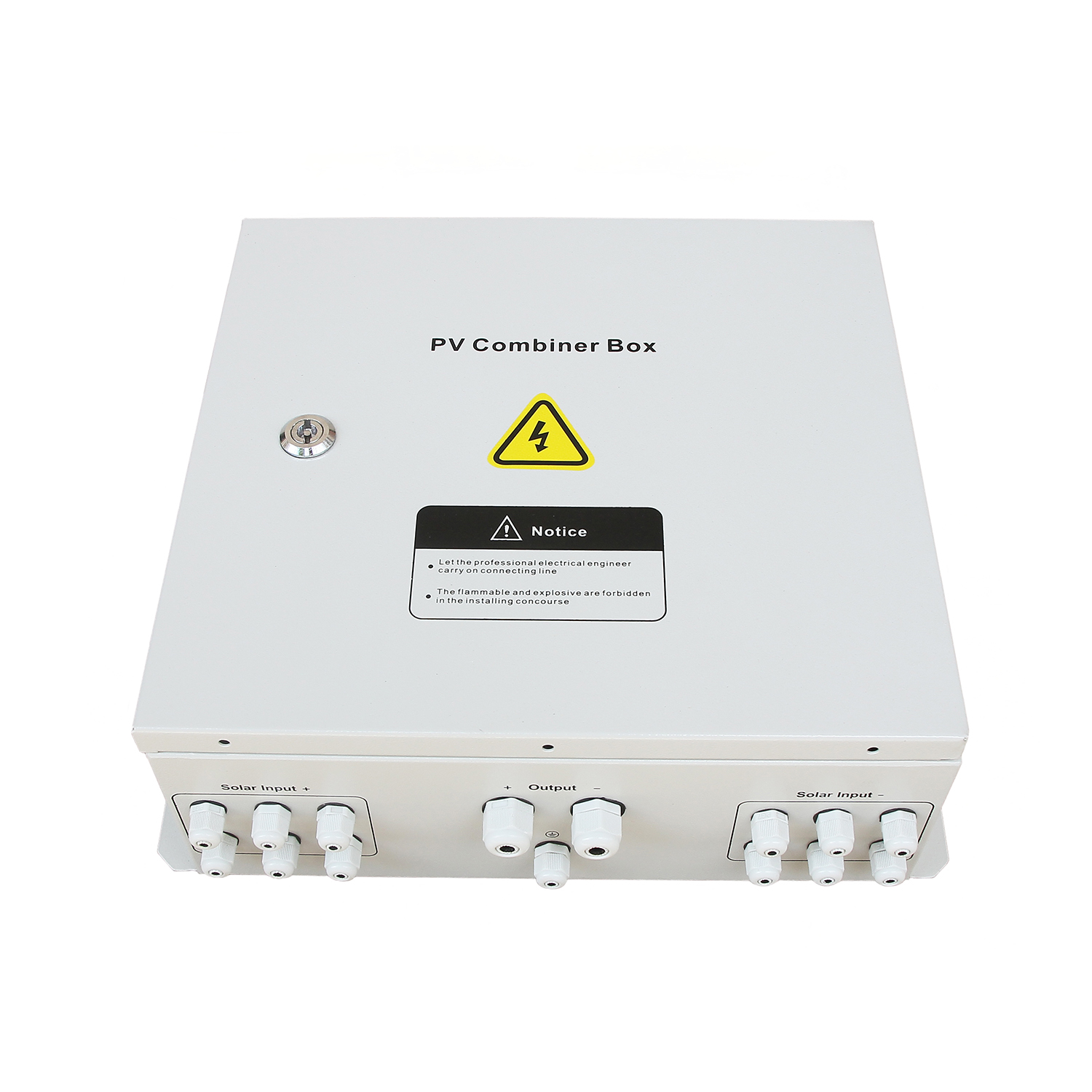

6 Input 1 Output PV Combiner Box

(0 reviews)

Get Price

(80) Views

(0) Contacts

Contact Company

Foshan Nanhai Senhu Optoelectronics Technology Co., Ltd

Guangdong, China

(271) Views

(2) Contacts

                                                            Model
                                                            SHH6T

                                                            Numbers of Input String
                                                            6

                                                            Ground Wire Size
                                                            ≥ 4 mm2

                                                            Maximum Input Current of Each String
                                                            15A

                                                            Cooling Method
                                                            Natural cooling

                                                            Fuse of Each String
                                                            20A

                                                            Packing Size
                                                            460×440×240mm

                                                            Wire Size of Each String
                                                            PG 7.4mm2

                                                            Product Size
                                                            406×340×145mm

                                                            Numbers of Output String
                                                            1 or 2

                                                            Net Weight
                                                            7.8KG

                                                            Gross Weight
                                                            8.8KG

                                                            Maximum Output Current
                                                            90A / 45A each for 2 strings

                                                            Temperature Range
                                                            －30℃ ~ ＋60℃

                                                            Wire Size of Output String
                                                            PG11, 16mm2

                                                            Waterproof Level
                                                            IP65

                                                            Lightning Protector
                                                            Yes

                                                            Maximum Output Voltage
                                                            DC500V / DC1000V(Optional)

                                                            DC Output Circuit Breaker
                                                            Yes

Characteristics of PV Combiner Box

Multiple PV string input, each string having high-voltage DC fuse protection, and each string with a maximum current of 15A;
Single or two outputs: Single output, fitted with a high-voltage lightning protection device, a high-voltage photovoltaic dedicated DC circuit breaker, and the ability to customize two separate photovoltaic array outputs and adapt to various connecting schemes.
Watertight Level: The case is thick and watertight in design, with an IP65 waterproof rating. The surface has been treated with outdoor standard spraying, which is both durable and appropriate for outdoor installation.
