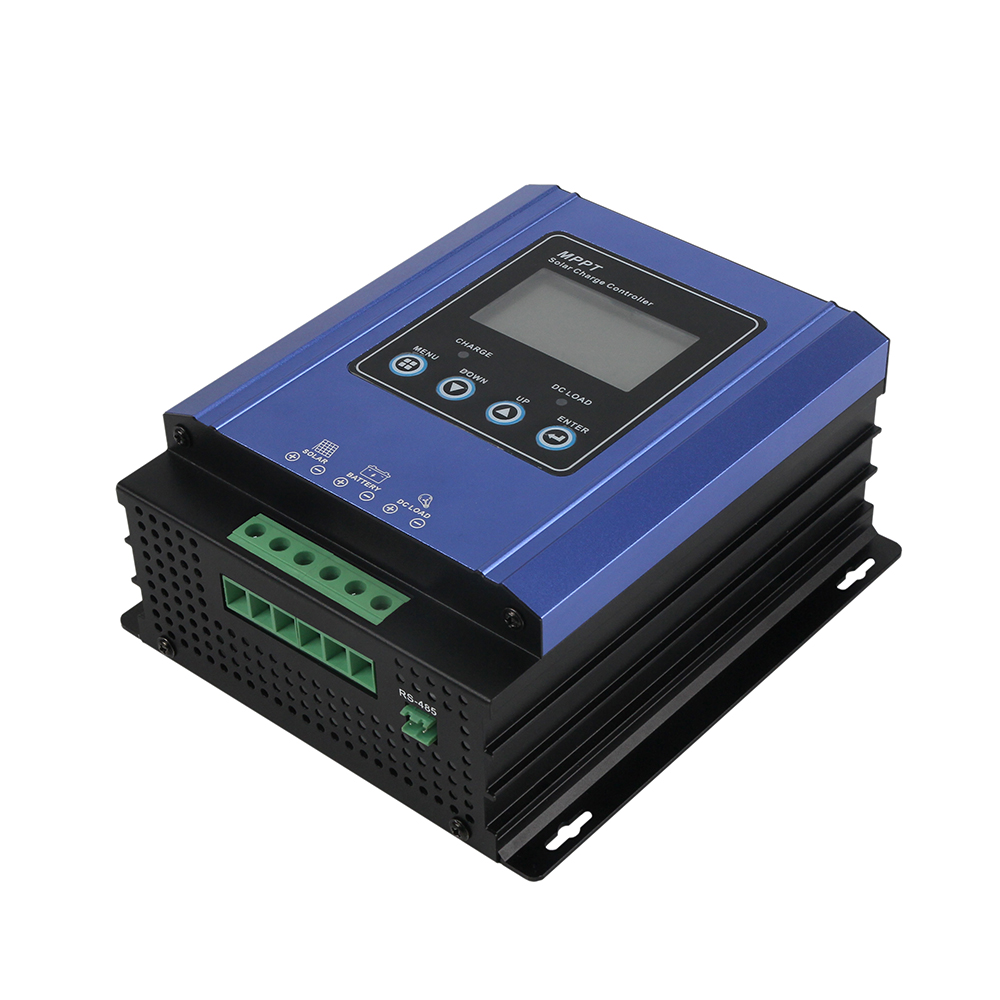

60A/48V Mppt Solar Controller

(0 reviews)

Get Price

(413) Views

(0) Contacts

Contact Company

Foshan Nanhai Senhu Optoelectronics Technology Co., Ltd

Guangdong, China

(1376) Views

(2) Contacts

                                                            Model
                                                            CS-60A

                                                            Packing Size
                                                            340mm×240mm×160mm

                                                            Type
                                                            MPPT

                                                            Rated Current
                                                            60Amp

                                                            Efficiency
                                                            99.5%

                                                            Product Size
                                                            250mm×197mm×92mm

                                                            System Voltage
                                                            12V/24V/48V auto recognition, 36V manual setting

                                                            Loss without Load
                                                            ≤ 3W

                                                            Cooling Method
                                                            Fan cooling, the fan speed is adjusted by temperature. The fan runs slowly or stop when the internal temperature is low.

                                                            Gross Weight
                                                            3.0kg

                                                            Max. PV Input Open Circuite Voltage (VOC)
                                                            150Vdc

                                                            Net Weight
                                                            2.5kg

                                                            Start Charging Voltage Point
                                                            12V: 18Vdc     24V: 34Vdc     36V: 48Vdc     48V: 65Vdc

                                                            Input Low Voltage Protection Point
                                                            12V: 16Vdc     24V: 30Vdc     36V: 45Vdc     48V: 60Vdc

                                                            Input Overvoltage Protection Point
                                                            150Vdc

                                                            Max. PV Input Power 12V System
                                                            900W

                                                            Max. PV Input Power 24V System
                                                            1700W

                                                            Applicable Battery Type
                                                            Lead acid battery, lithium battery or custom

                                                            Max. PV Input Power 48V System
                                                            3200W

                                                            Max. PV Input Power  36V System
                                                            2550W

                                                            Rated Current
                                                            60A

                                                            Charging Method
                                                            3-stages (constant current, constant voltage, float charging)

                                                            Load Voltage
                                                            Same as battery voltage

                                                            Rated Load Current
                                                            30A

                                                            Mode of Control
                                                            Normally Open/Off, Light Control, Time Control

                                                            Display
                                                            HD LCD display

                                                            Communication
                                                            RS485 (Optional)

                                                            Protection
                                                            Input, output overvoltage & undervoltage protection, anti-reverse, overcharge, short circuit protection, etc.

                                                            Working Temperature
                                                            -20℃~+50℃

                                                            Maximum Wire Diameter
                                                            25mm2

                                                            Storage Temperature
                                                            -40℃~+70℃

                                                            IP Protection Level
                                                            IP21

Characteristics of Mppt Solar Controller

Efficient MPPT controller algorithm, MPPT efficiency is greater than 99.5%, and overall machine conversion efficiency is greater than 98%;
Charging method: 3-stage charging (constant current, constant voltage, float charging), which can significantly improve battery life.
Loading Modes: Normally Open/Off, Light Control, and Time Control. Automatic recognition of 12V/24V/48V battery voltages;
The user can select between charging common batteries (sealed lead-acid batteries, lead-acid gel batteries, open lead-acid batteries, and lithium batteries) and customizing parameters to charge different types of batteries.
When the power of the solar panel is too high, the controller automatically maintains the charging power, and the charging current does not exceed the rated value;
With an HD LCD display, you may see device operating statistics and status, as well as modify the controller display options.
Customers' unified integrated management and secondary development can be facilitated using RS485 communication protocol.
