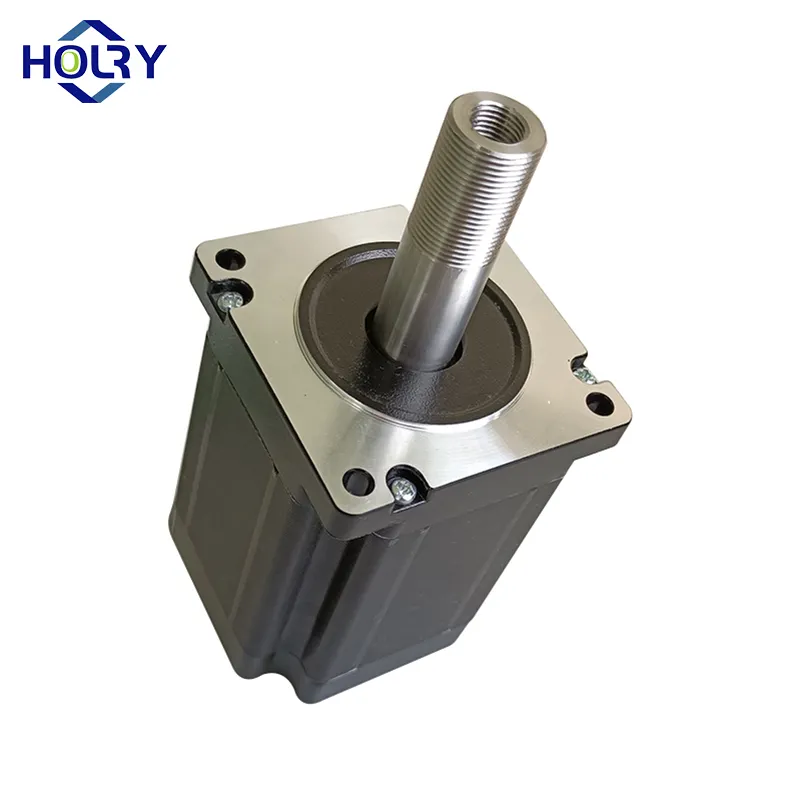

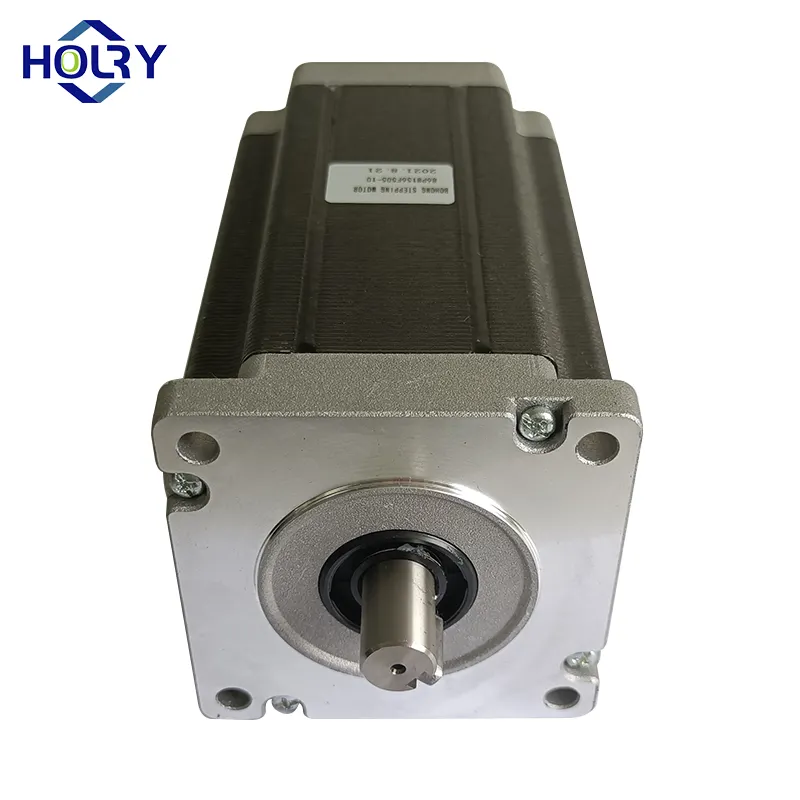

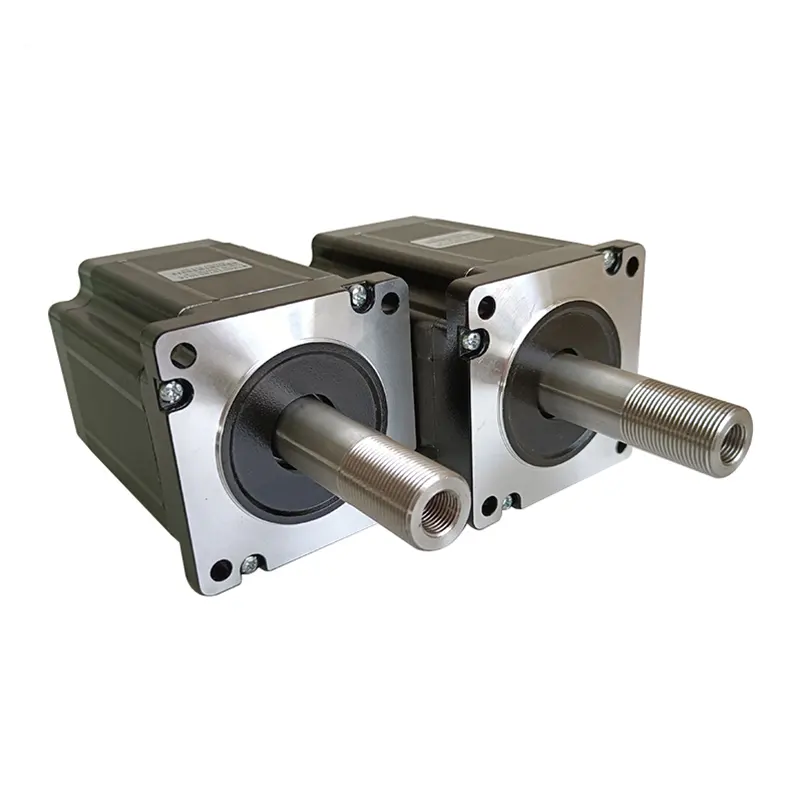

Nema 34 86mm Gearbox Stepper Motor
(0 reviews)
Get Price
(105) Views
(0) Contacts


Contact Company





Changzhou Holry Electric Technology Co., Ltd.
Jiangsu, China
(335) Views
(0) Contacts

A Nema 34 stepper motor has a faceplate size of 3.4 x 3.4 inch (86 x 86 mm). Nema 34 high torque stepper motors provide excellent pricing while sacrificing no quality. These motors are designed to produce maximum torque while minimising vibration and audible noise. There is a large choice of motor windings and stack lengths available, or the motors can be customised to match your machine's needs.

Warranty 1year
Place of Origin Jiangsu, China
Brand Name HOLRY
Model Number 57HB51F3
Type Hybrid
Motor Length 51mm
Rated Voltage 3V
Rated Current 3A
Phase Resistance 1.1Ω
Phase Inductance 2.8mH
Phase Inductance 2.8mH
Holding Torque 0.65N.M
Lead Wire 4NO.
Rotor Inertia 120g.cm²
Motor Weight 0.45Kg
Insulation Class B

A stepper motor General technological specifications:

  1. The stepping motor is employed in low-speed situations where the speed does not exceed 1000 revolutions per minute (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be used in conjunction with a decelerating device. Currently, the motor has a good working efficiency and produces little noise.
  2. It is better not to use the stepping motor in full-step mode because the vibration is excessive in full-step mode.
  3. The voltage value in the motor specification is not the driving voltage volt value. The specific driving voltage can be chosen based on the stepper driver (recommendations: 42 and below motors use 12-24V, 57 motors use DC 24V-48V, 86 motors use DC 48-80V, and 110 motors require more than DC 80V).
  4. A big frame size motor should be chosen for loads with high moments of inertia.
