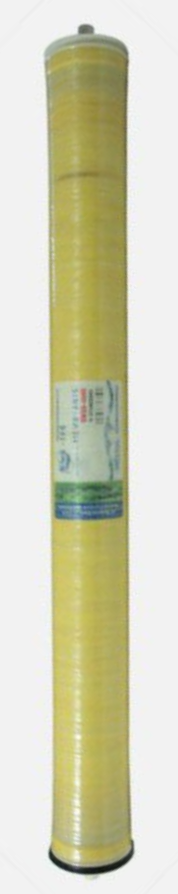

BW30-4040 Industrial RO Membrane

(0 reviews)

(101) Views

(0) Contacts

Hi-Tech BW30-4040 Industrial RO membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years. Hi-Tech membrane performance is excellent and stable exceptionally. Covering a complete range from 50GPD to 400GPD. Application Data Applied Pressure : psig (bar)225 (15.5)225 (15.5)225 (15.5)

Contact Company

Hi-Tech Membranes Co. ltd.

Chachoengsao, Thailand

(314) Views

(0) Contacts

                                                            Permeate Flow
                                                            gpd (m³/d) 2400 (9.1)

                                                            Salt Rejection
                                                            % 98 – 99

                                                            Configuration
                                                            Polyamide Thin Film Composite

                                                            FRP
                                                            Epoxy – Vinylester

                                                            Active Area
                                                            ft² (m²) 81 (7.5)

                                                            Applied Pressure
                                                            psig (bar) 225 (15.5)

                                                            Maximum Operating Temperature
                                                            °F(°C) 113 (45)

                                                            Maximum Feed Flow Rate
                                                            gpm(m³/h) 16 (3.6)

                                                            Maximum Pressure Drop
                                                            psig(bar) 15 (1.0)

                                                            pH Range, Continuous (Cleaning)
                                                            2-11 (1-12)

                                                            Maximum Feed Silt Density Index
                                                            SDI < 5

                                                            Maximum Chlorine Concentration
                                                            < 0.1 ppm

Applications of BW30-4040 Industrial RO Membrane

Aquariums
Whole House
Office
Institutions
Hotels
Hospitals
Spot Free Rinse/Car Wash
Labs
Pharmaceutical
Humidification
Misting
Manufacturing
Rinse Water
Bottled Water
Beverage
Food Processing
Ice Makers
Commercial Water Treatment
Wide Variety of Other Applications

Features of BW30-4040 Industrial RO Membrane:

The most modern membrane film technology and production procedures are used.
High rejection stability even with high TDS made in our ISO 9001:2008 certified facilities.
Less fouling, lower cleaning frequency, and improved consistency.
100% Performance and Quality Guaranteed.
Supported by our knowledgeable technical support team.
High Quality for Consistent and Reliable Performance.
Standard dimensions to fit into generally available housings.
Lower chemical consumption and extended life.
