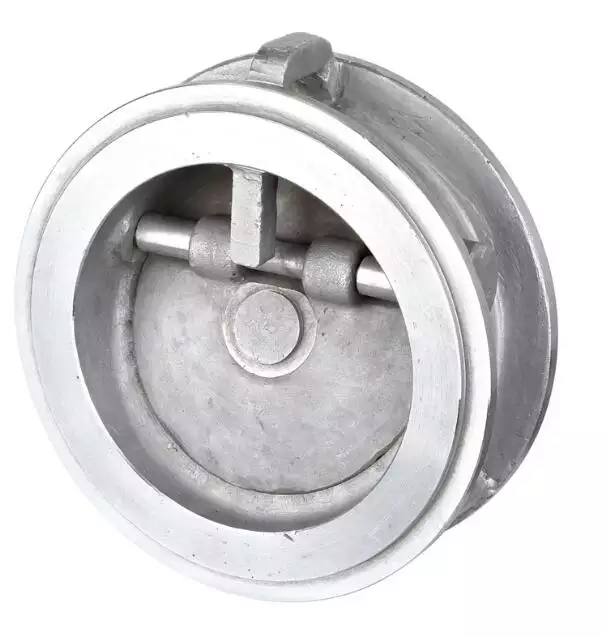

Stainless steel Tilting Disc Check valve, wafer type Tilting Disc Check valve, stainless steel wafer type Tilting
Disc Check valve, stainless steel wafer type Tilting Disc Single Plate Check Valve
Tilting Disc Buffering Check Valve of the sealing surface is declined against the outlet with a small dropping angle to reduce the vibration meanwhile there is buffering device in the body that can buffer the flow to prevent the pump from turning back and super-high water hammer pressure.
The different materials selection can apply to the medium involving water, steam, oils, nitric acid, acetic, strong oxidizing medium, urea, etc.

Structural Feature

Valve disc closedown quickly, low water hammer pressure;
Applicable for and easily installed for vertical or horizontal pipelines;
Smooth flow passageway and small fluid resistance;
Flexible action and good sealing performance;
Narrow valve travel and small closedown impact;
Integrated structure, simple and compact, in beautiful shape;
Long service life and good reliability.
Offset structure, with an optimal face-to-face length, reduces flow resistance and eliminates pressure surge. to be used for protecting from medium backflowing.

Standards:
A)Design&Manufacture: API 6D, API 594, ASME B16.34
B)Face to Face: API 594, API 6D
C)Connection End: ASME B16.5, ASME B 16.47
D)Test and Inspection: ISO5208, API 6D

Features:

Simple and compact structure.
Lightweight
Smooth running without vibration and noise.
Easy assembly and maintenance
Reliable sealing performance.
Zero leakage tightness with 20000 times off service life.
Minimized resistance with a streamlined structure
Offset structure, with an optimal face-to-face length, reduces flow resistance and eliminates pressure surge. to be used for protecting from medium backflowing.
Sizes: 1/2" - 48" ,DN15- DN1200
Pressure Rating: Class150 - Class2500,PN16 - PN420
working temperature: -196~540 degrees Celsius.
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc

                                                            Warranty
                                                            3 years

                                                            Type
                                                            Metal Check Valves

                                                            Structure
                                                            Check

                                                            seat ring
                                                            NBR/EPDM

                                                            Temperature of Media
                                                            Medium Temperature

                                                            Power
                                                            Manual

                                                            Media
                                                            Water

                                                            Port Size
                                                            DN100-DN3000

                                                            specification
                                                            API598, API6d, ANSI, Bs, DIN, JIS

                                                            size
                                                            2" to 48"

                                                            flow direction
                                                            Unidirection
