Ductile Iron Butterfly Check Valve

(0 reviews)

Get Price

(302) Views

(0) Contacts

Category: Check Valves

100 - 499 pieces 500 - 999 pieces >= 1000 pieces

$180.00 $170.00 $160.00

Contact Company

Anhui Sunval International Trading Co., Ltd.

Anhui, China

(870) Views

(0) Contacts

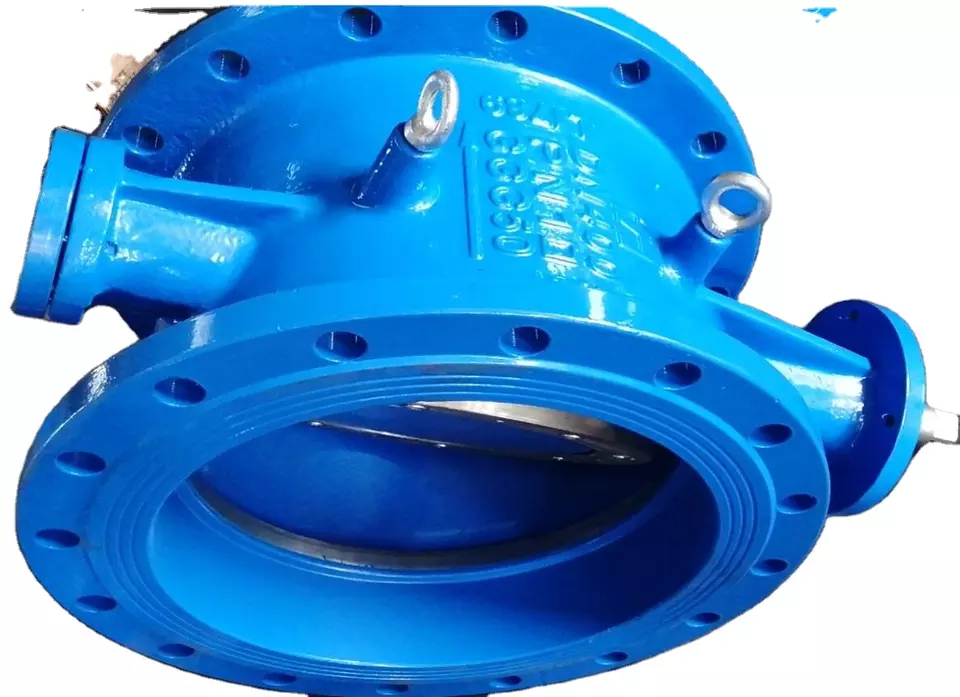

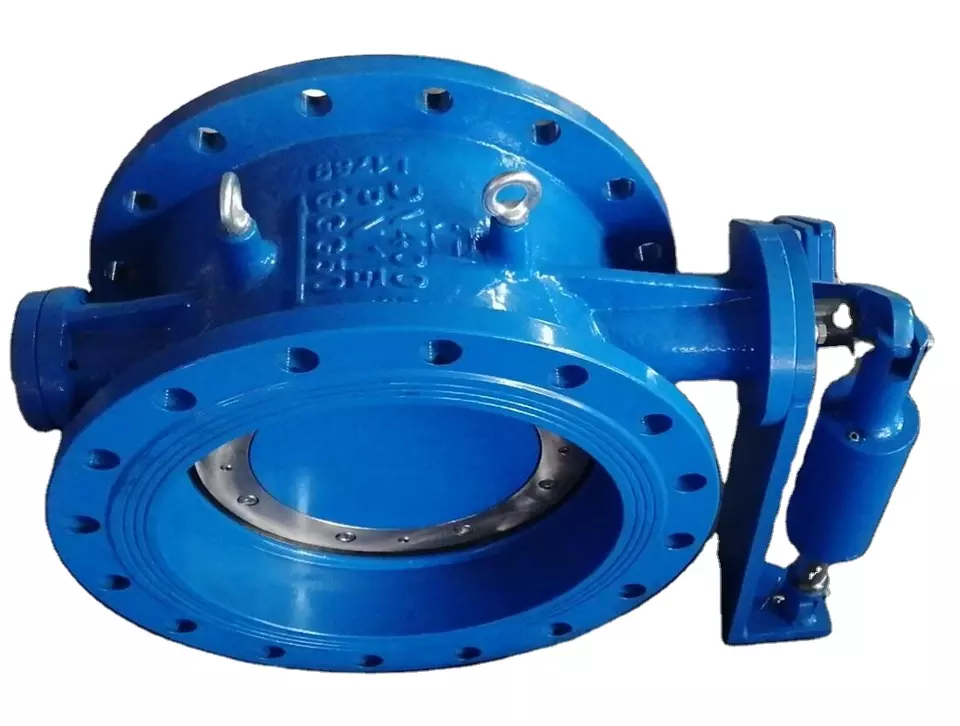

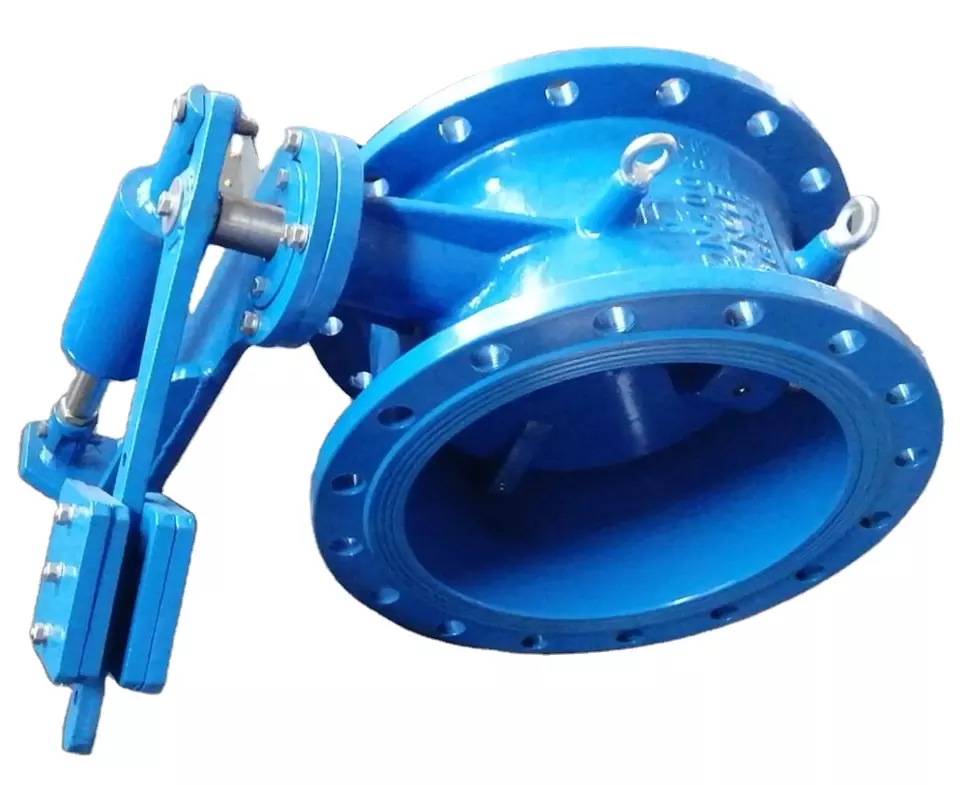

Ductile iron disc check valve, tilting disc check valve

Tilting Disc Check/butterfly Valve, GGG40/DUCTILE iron, CASTING, WITH HAMMER, BS5155/EN/DIN/ASME
Standard: BS5155 OR EQUIVALENT
Nominal diameter: DN300-DN1000mm
Tilting Seat Buffering Check Valve of the sealing surface is declined against the outlet with a small dropping angle to reduce the Vibration meanwhile there is a buffering device in the body that can buffer the flow to prevent the pump from turning back and super-high water hammer pressure.

                                                            Warranty
                                                            3 years

                                                            Type
                                                            Metal Check Valves

                                                            Structure
                                                            Check

                                                            Certification
                                                            GS

                                                            Temperature of Media
                                                            Medium Temperature

                                                            Power
                                                            Manual

                                                            Media
                                                            Water

                                                            Port Size
                                                            DN100-DN3000

                                                            face to face
                                                            DIN3202-F4 / BS 5155

                                                            shaft
                                                            SSS420

                                                            O rings
                                                            Rubber

                                                            Body material
                                                            ductile iron

                                                            pressure
                                                            PN10/16

                                                            connection
                                                            Double Flanged, Epoxy coating

                                                            design
                                                            EN 1074, BS5163
