ZeeLung maximizes treatment capacity in existing tank volumes while also reducing energy consumption.
During secondary treatment, bacteria metabolize nutrients and organics – and need a flow of oxygen to get it done. Oxygen is typically pumped through diffusers to create bubbles. But most of the oxygen rises to the surface without being used and valuable energy is wasted. At Veolia, we saw a new approach. While conventional solutions require the construction of new tanks, ZeeLung increases treatment capacity in existing assets and reduces energy use. ZeeLung enables process intensification and process resilience. The result is expanded treatment capacity, stabilized cold-temperature performance and rapid response to load changes.
How ZeeLung Works
ZeeLung technology employs a gas permeable media to deliver oxygen to a biofilm that is attached to the surface of the media. Oxygen is delivered to the biofilm by diffusion – without the use of bubbles. The result is 4X lower energy consumption for oxygen transfer than fine bubble aeration. Pollutants, such as ammonia and organics, diffuse from the bulk solution into the biofilm where bacteria in the biofilm have optimal conditions to remove them.

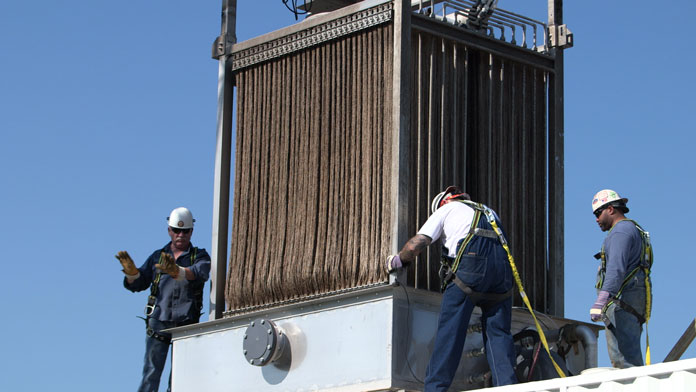

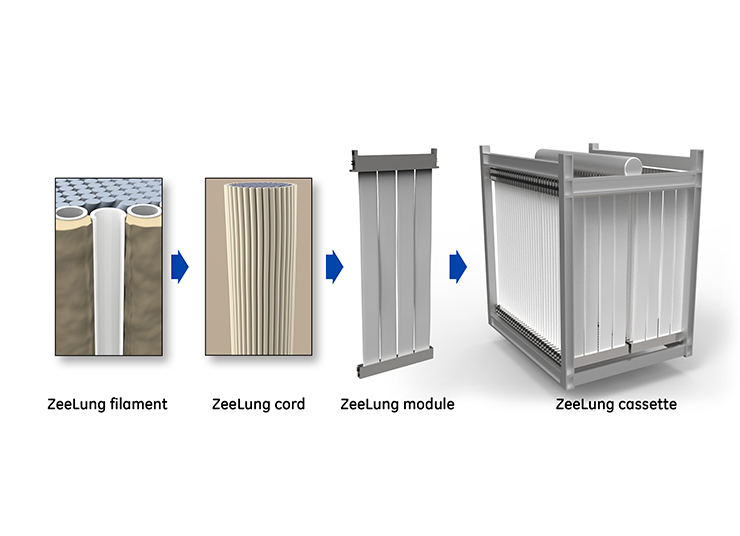

The product is a reinforced media with a yarn-based core supporting multiple gas permeable filaments. This construction – referred to as a “cord” – is flexible yet unbreakable. Multiple cords are potted into top and bottom headers to create a module and modules are installed in a steel frame that forms a cassette. Cassettes are deployed in the mixed liquor in a biological reactor. Low-pressure air is delivered to the cassettes for transfer of oxygen and mixing of the system.
Installing ZeeLung cassettes into an activated sludge reactor increases the inventory of biomass in the system without increasing the mixed liquor concentration. As a result, the same reactor volume has more treatment capability.
The process interaction of oxygen and pollutants is different in a ZeeLung system compared to conventional active sludge and biofilm processes. With ZeeLung, oxygen and substrates – such as ammonia and organics – enter the biofilm from opposite sides in a counter-diffusion configuration. This creates conditions that favor the growth of nitrifiers in the biofilm.

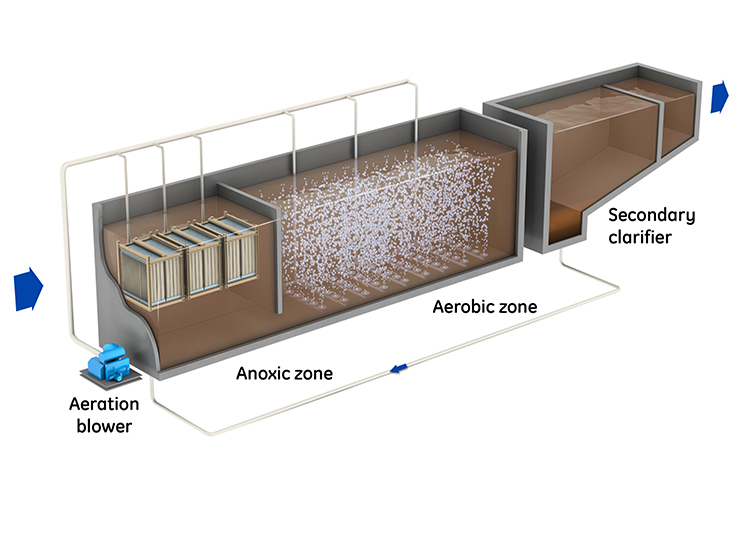

This can be explained by the high diffusivity of ammonia into a biofilm, as compared to organic substrates, and the availability of dissolved oxygen which is highest at the media surface. Preferential growth of nitrifiers versus heterotrophs means that the ZeeLung biofilm “supercharges” nitrification in an activated sludge system. Simultaneous nitrification and denitrification can be achieved by installing ZeeLung cassettes in an anoxic zone.

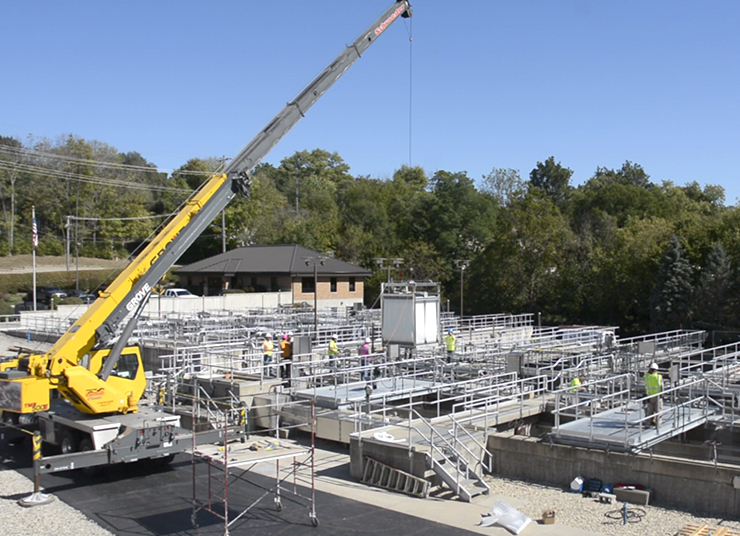

ZeeLung cassettes are simply deployed into existing tanks with minimal impact on the existing equipment and operations. This makes ZeeLung a cost-effective and versatile solution for augmenting plant performance.

ZeeLung solves the following treatment challenges:

Increase treatment capacity
Augment ammonia removal
Implement nitrogen removal
Enable biological phosphorous removal

ZeeLung Benefits

Process intensification – Up to 50% more treatment capacity and/or performance in existing tank volumes.
Process resilience – The attached growth biofilm is resilient to load variations and upset conditions.
Simple solution – ZeeLung cassettes are installed into existing bioreactor tanks, avoiding the need to build new tanks and allowing fast implementation.
Energy savings – Oxygen transfer is up to 4X more efficient than fine bubble aeration, resulting in up to 50% energy savings.
