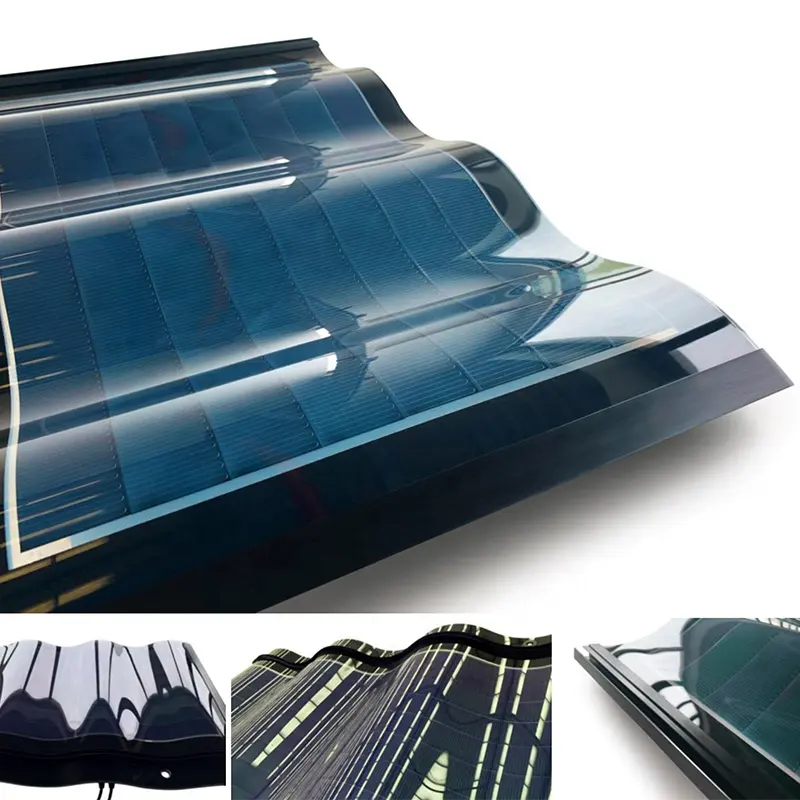

Three Curved Solar Tile

(0 reviews)

(523) Views

(0) Contacts

BIPV Solar Tile The world's leading photovoltaic green building materials, One Special tile that instead of the traditional tile. THIN FILM TECHNOLOGY SUBVERSIVE INNOVATION

100 - 3199 watts 3200 - 31999 watts
$2.65 $1.47
32000 - 319999 watts >= 320000 watts
$1.37 $1.27

Contact Company

Shenzhen Huada New Energy Technology Co., Ltd.

messages.no address inserted..

(1847) Views

(10) Contacts

Product Details
Product Reviews

                                                            Maximum power (Pmax）
                                                            30W(Black) 32W(Black) 18W(Red/green) 25W(Red/green)

                                                            Optimum operating voltage (Vmp）
                                                            8.0V 8.1V 7.2V 7.8V

                                                            Hail test (hail diameter/impact velocity)
                                                            Maximum diameter 25mm, impact speed 23m/s

                                                            Recommended current (Imp）
                                                            3.8A 4.0A 2.6A 3.2A

                                                            Class of loading
                                                            5400Pa Fire rating A grade

                                                            Open circuit voltage (Voc）
                                                            10.3V 10.5V 9.5V 10.1V

                                                            Wind resistance rating
                                                            15grade

                                                            Short circuit current (Isc）
                                                            4.3A 4.4A 3.3A 4.0A

                                                            Linear power guarantee
                                                            25years

                                                            Maximum power per square meter
                                                            110W（ Black ）/86W（ Red ）（±7%）(3pcs per SQ)

                                                            Waterproofing grade
                                                            IP67

                                                            Temperature coefficient of short circuit current
                                                            （0.065±0.015）%/℃

                                                            Weight
                                                            6.5kg

                                                            Open circuit voltage temperature coefficient
                                                            -（80±10）mV/℃

                                                            Output power tolerance
                                                            ±7% NOCT 47±2℃

                                                            Peak power temperature coefficient
                                                            -（0.5±0.05）%/℃

                                                            Maximum system voltage
                                                            1500V DC

                                                            Solar cell sheet CIGS amorphous cell sheet Component size
                                                            721(W)*500(H)*33(T)mm/28.3(W)*19.6(H)*1.3(T)inch 721(W)*500(H)*33(T)mm/28.3(W)*19.6(H)*1.3(T)inch

                                                            Operating temperature
                                                            -40℃ to 85℃
