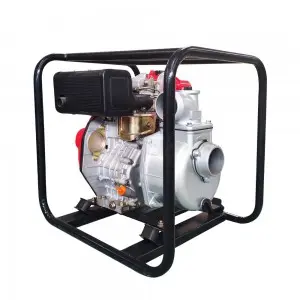

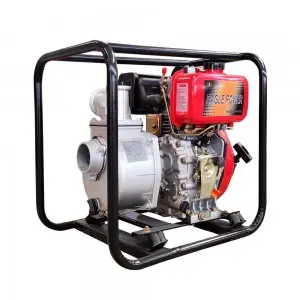

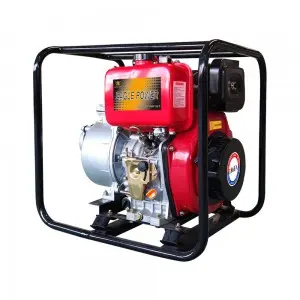

Diesel Aluminium Water Pump Set

(0 reviews)

(110) Views

(0) Contacts

Lightweight and compact design Easy maintenance, just remove the bolts to clean the inside of the casing. Meets a wide range of applications coupled with air-cooled diesel engines.

Contact Company

EAGLE POWER MACHINERY (Shanghai) Co., Ltd.

Shanghai, China

(335) Views

(0) Contacts

Scope of application

GENSET MODEL	YC50P	YC80P	YC100P
SUNCTION/DISCHARGE PORT DIA (mm)	50 (2 ")	80 (3 ")	100 (4 ")
MAX.CAPACITY (m³/hr.)	22	30	40
MAX.HEAD(m)	15	13	16
MAX.SUCTION HEAD (m)	7
ENGINE MODEL	YC173F(E)	YC178F(E)	YC186FA(E)
ENGINE CONT. OUTPUT (kw)	2.8	4.0	6.3
ENGINE SPEED (rpm)	3600
STARTING SYSTEM	RECOIL START OR ELECTRICAL START
Engine Displacement (cc)	246	296	418
FUEL TANK CAPACITY (L)	2.5	3.5	5.5
DIMENSION: LWH (mm)	510420545	580470575	665500625
NET WEIGHT (kg)	38	49	62.5

Applications

Agriculture and home.

Diesel Water Pump Features

1. Strong power: the overall crankshaft of the diesel unit has large stiffness, high strength, and high transmission efficiency of torque.
2. Advanced technology: the use of international advanced technology and gantry type body, sliding bearings, plate-fin cooler, mounted heat exchanger, rotary oil filter, and double cooling system.
3. Excellent performance: smoke, and noise index to reach the national excellent product, fuel consumption is lower than the national standard excellent product 2.1g/ KW.h above.
4. High degree of automation: with automatic, manual, and fault self-check functions, the whole process of monitoring the working condition, can restore the failure of the automatic restart function, automatic pre-lubrication, and pre-heating, making the equipment start more safe and reliable; With central control room remote control and remote control function, can also have field bus connection (optional function). The battery adopts an automatic floating charge (constant current, constant voltage, trickle charge) to ensure that the battery is in a standby state at any time.
5. Easy to use: equipped with remote instrumentation, according to the need to be connected to the control center, installation, use, and convenient maintenance.
