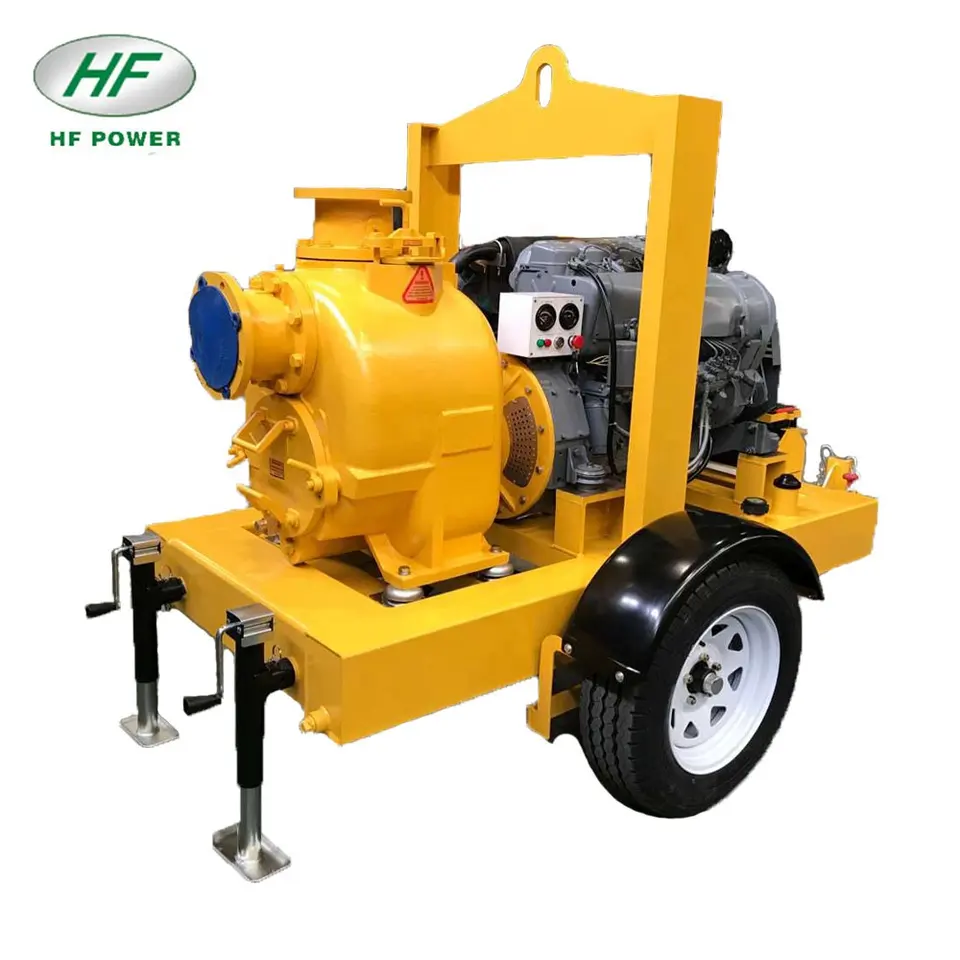

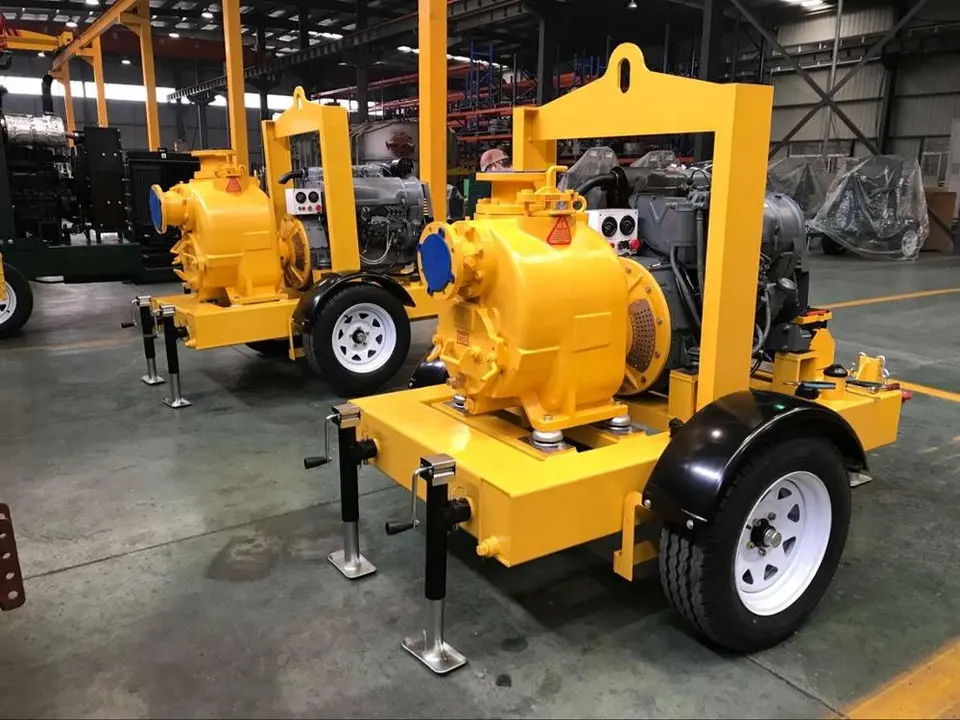

Trailor Type Diesel Centrifugal Self Priming Trash Pump

(0 reviews)

Get Price

(93) Views

(0) Contacts

$4,000.00 - $9,999.00/ set |1 set/sets

Contact Company

Shijiazhuang Houfeng Trading Co.,Ltd

Hebei, China

(346) Views

(0) Contacts

Name	T-3″(75mm) pump	T-4”(100mm) pump	T-6”(150mm) pump	T-8”(200mm) pump	T-10”(250mm) pump	U-3″(75mm) pump	U-4”(100mm)pump	U-6”(150mm)pump
Head to	112″(34m)	115”(35m)	109”(33m)	109”(33m)	129”(39m)	205”(62m)	197”(60m)	192”(58m)
Flow to	450GPM (102M³/h)	730GPM (165M³/h)	1480GPM (335M³/h)	2600GPM (600M³/h)	3200GPM (725M³/h)	375GPM (85M³/h)	650GPM (147M³/h)	1350GPM (306M³/h)
solid size	2-5inch (63.5mm)	3inch (75mm)	3inch（75mm)	3inch(75mm)	3inch(75mm)	13/16inch (20.63mm)	1.125inch (28.57mm)	1.25inch (31.75mm)
solid size	2-5inch (63.5mm)	3inch (75mm)	3inch（75mm)	3inch(75mm)	3inch(75mm)	13/16inch (20.63mm)	1.125inch (28.57mm)	1.25inch (31.75mm)


Pump mode	pump axle’s dimension	power	engine model	engine dimension	rated speed	engine rated power	flywheel	coupling model	baseplate dimension
Pump mode	pump axle’s dimension	kW	engine model	engine dimension	RPM	kW	flywheel	coupling model	baseplate dimension
HFCT-3	φ38.1*101.6	15	F2L912	678704872	2100	18	SAE3	BOWEX65 11.5″FLE-PA	1600900200
HFCT-4	φ38.1*127	22	F3L912	730673815	2000	29	SAE3	BOWEX65 11.5″FLE-PA	19001000200
HFCT-6	φ38.1*127	30	F4L912	860673815	1550	32	SAE3	BOWEX65 11.5″FLE-PA	21001000200
HFCT-8	φ44.5*169.9	55	F6L912T	1175673820	1350	58	SAE3	BOWEX80 11.5″FLE-PA	24001100200
HFCT-10	φ44.5*122.2	75	BF6L913	1134711910	1450	88	SAE3	BOWEX80 11.5″FLE-PA	26001100200
HFCU-3	φ38.1*103.1	22	F3L912	730673815	2100	31	SAE3	BOWEX65 11.5″FLE-PA	1600900200
HFCU-4	φ38.1*126.2	37	F4L912	860673815	2100	41	SAE3	BOWEX65 11.5″FLE-PA	19001000200
HFCU-6	φ38.1*121.4	55	F6L912	1120673815	2000	65	SAE3	BOWEX65 11.5″FLE-PA	21001000200

                                                            Warranty
                                                            online support

                                                            Place of Origin
                                                            China

                                                            Theory
                                                            Centrifugal Pump

                                                            Usage
                                                            Water

                                                            Power
                                                            Electric

                                                            Fuel
                                                            Diesel

                                                            Standard or Nonstandard
                                                            Standard

                                                            Pressure
                                                            High Pressure
