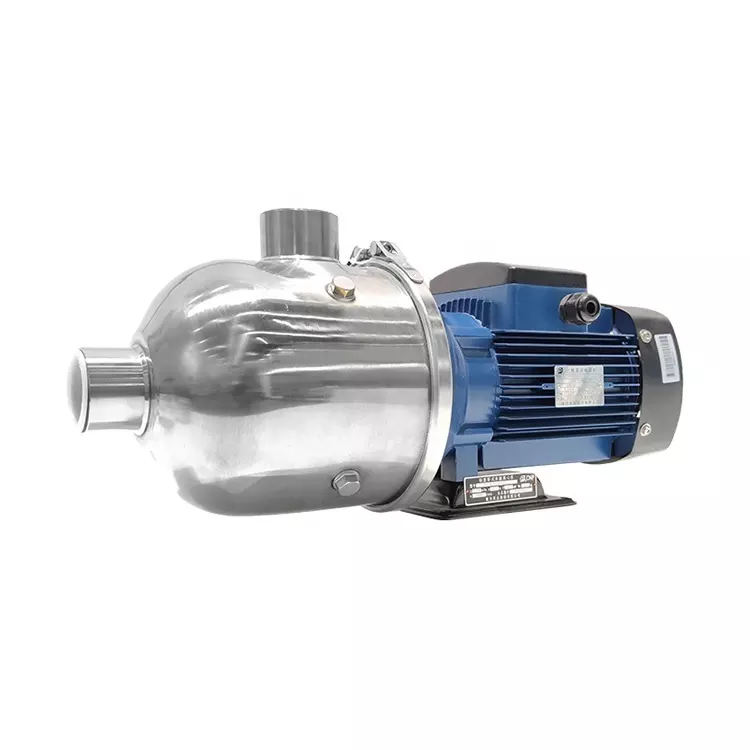

Stainless Steel Horizontal Multistage Centrifugal Portable Electric Water Pump

(0 reviews)

153.57 USD

(1041) Views

(0) Contacts

1 piece/pieces

$153.57 - $259.43

Contact Company

Tiger (Hangzhou) Flow Systems Co., Ltd.

Zhejiang, China

(2927) Views

(5) Contacts

Motor

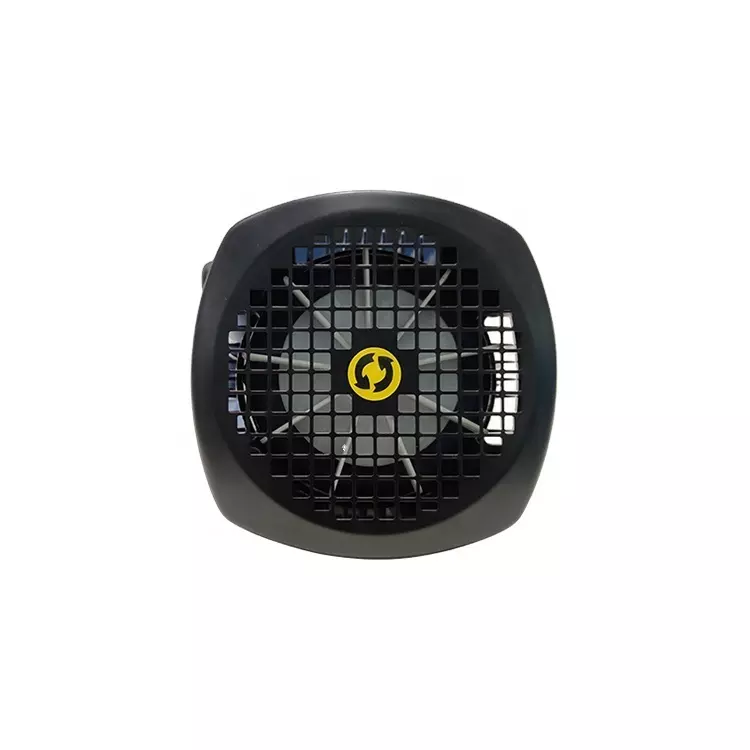

TEFC motor 2-pole
Protection class： IP 55
Insulation class： F
Standard voltage: 50Hz: 1x 220-240V, 3x220-240V/380-415V
Standard voltage: 60Hz: 1x 220-240V , 3 ×220-240V/380-415V
Single phase motor(max) ：2.4kW
Operation condition
Liquid temperature: Normal temperature type：-15℃-+70℃
Hot water type：-15℃-+110℃
Ambient temperature： up to+40℃
Max. operation pressure：10bar
Max. inlet pressure is limited by max. Operation pressure
Curve conditions
The following conditions are suitable for the performance curves shown above.
All curves are based on the measured values of 50Hz: constant motor speed 2900r/min
60Hz： constant motor speed 3500r/min；
Curve tolerance in conformity with ISO9906: 2012, 3B.
Measurement is done with 20℃air-free water, the kinematic viscosity of lmm-/sec.
The operation of the pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small a flow rate or overload f the motor due to too large a flow rate.

                                                            Warranty
                                                            1 year

                                                            Impeller
                                                            Stainless Steel Material

                                                            Customized support
                                                            OEM, ODM, OBM

                                                            Brand Name
                                                            CNP

                                                            Model Number
                                                            CHLK2

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Horsepower
                                                            0.75~1.5hp

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            10bar

                                                            Structure
                                                            Multistage Pump

                                                            Cable Length
                                                            15-30 Feet

                                                            Outlet Size
                                                            G1

                                                            Voltage
                                                            220-240v/380-415v

                                                            Power
                                                            0.55~1.1KW

                                                            Keywords
                                                            High Quality CNP Horizontal Multistage Pump

                                                            Material
                                                            Stainless Steel

                                                            Feature
                                                            High Efficiency

                                                            Frequency
                                                            50HZ

                                                            Weight
                                                            13-15KG

                                                            Motor
                                                            TEFC Motor

                                                            Model
                                                            CNP CHLK2 60HZ
