Semi-Automatic Heat Seal Shrink Wrap Tunnel Packaging Machine

(0 reviews)

6900 USD

(245) Views

(0) Contacts

Category: Packaging Machines

1 - 1 sets
$9,600.00
2 - 4 sets
$9,200.00
>=5 sets
$9,000.00

Contact Company

Suzhou Best Drink Machinery Co., Ltd.

Jiangsu, China

(417) Views

(1) Contacts

Description
Product Reviews

Characteristic of the equipment :
1.The mantle sealing machine uses hot sealing and hot cutting, the sealing is fast, the edge is tidy and with good sealing
performance. This structure will need less electricity .
2.The main body of the sealing cutting uses cylinder ,there are pillars on both sides .
3.Special protection function, when there is some obstruct at the sealing cutting ,the equipment will be protected ,at the same time ,the alarm will ring, it can prevent the packed goods from been damaged .
4.The convey groove adopts plastic steel chain net form, use for long ,it can not metamorphose, the convey is stable.
5.Subletting machine ,it is accurate,stable,it is convient to adjust.
6.The heat part uses stainless steel heating tape cooling fin，the heat energy exhale steadily, this machine can be used for long terms.
7.There is PID temperature controller.
8.The shrinking machine adopts the hot wind diversion kern cycle system, the airflow can be adjustable, the heat energy can be reclaimed automatically
9.Special preserve heat structure It can both save the energy, with the security operation. 10.The production process will be steady by the automatically controlling system. It can work for many hours and do not need to have a rest.
Process of packing:

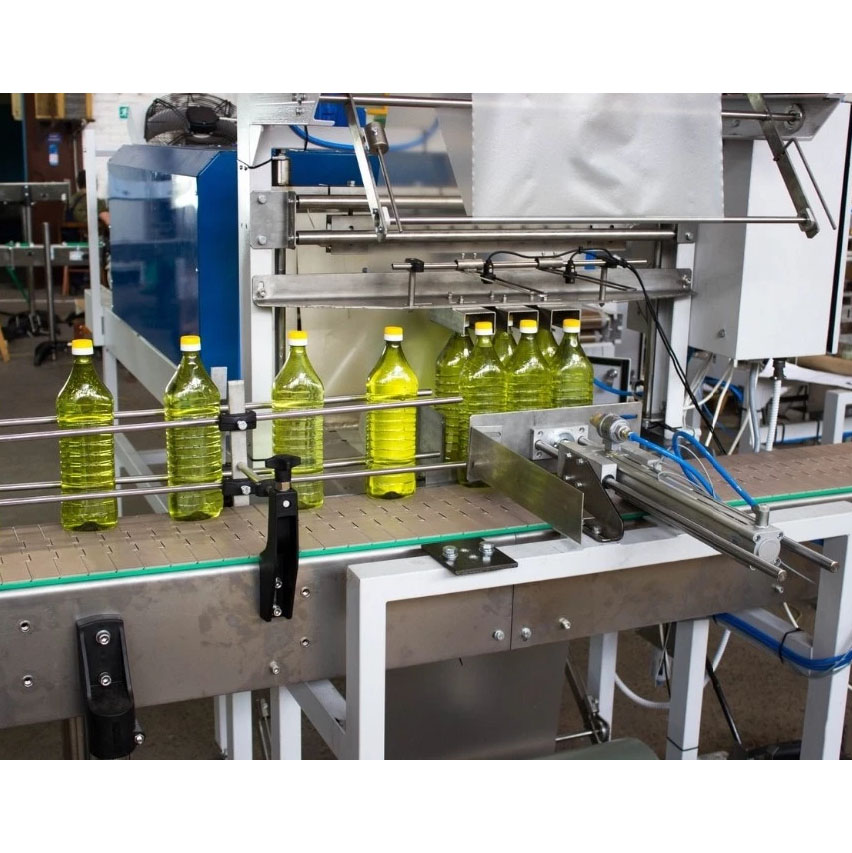

Back feeding→front feeding→bottle split machine →deflector rod machine →mantle sealing→shrinking→cooling →store
back feeding It is connected to the production line ,when the goods come into the back feeding groove, there is no adjustable barrier.
front feeding: After the front feeding, the packed goods send the ordered packed goods to the bottle split machine
the split machine :This machine is made according to the requirement, it has novel structure, high efficient.
deflector rod machine: It puts the goods in order when this machine is working, then send the packed goods through selaingand cutting line.
the mantle sealing: The packed goods will be pressed by the top swage device in order to avoid dump age, then finish the film, sealing automatically

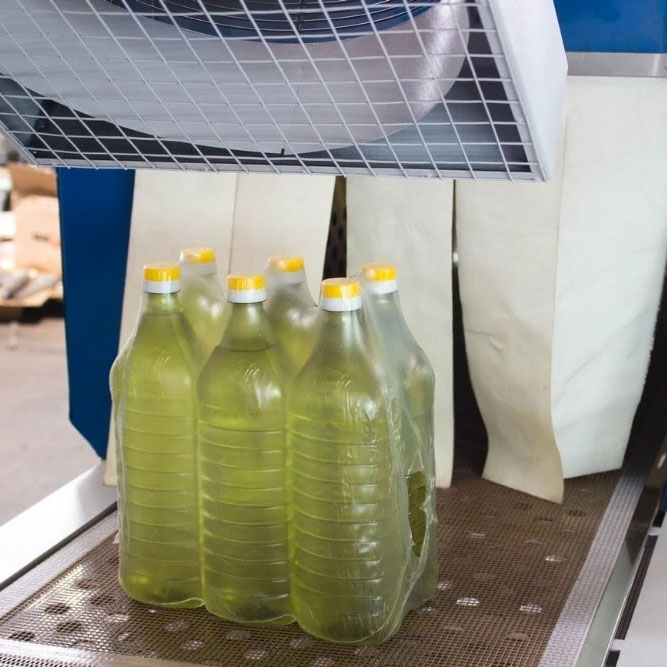

shrinking: After the mantle, the packed goods come into the shrinking oven then finish shrinking.
cooling: After shrinking ,this machine will cool the paced goods in the end of the machine .
Store the packed goods come into the auxiliary frame ,be ready to pallet.
