Description of Mass Flowmeter

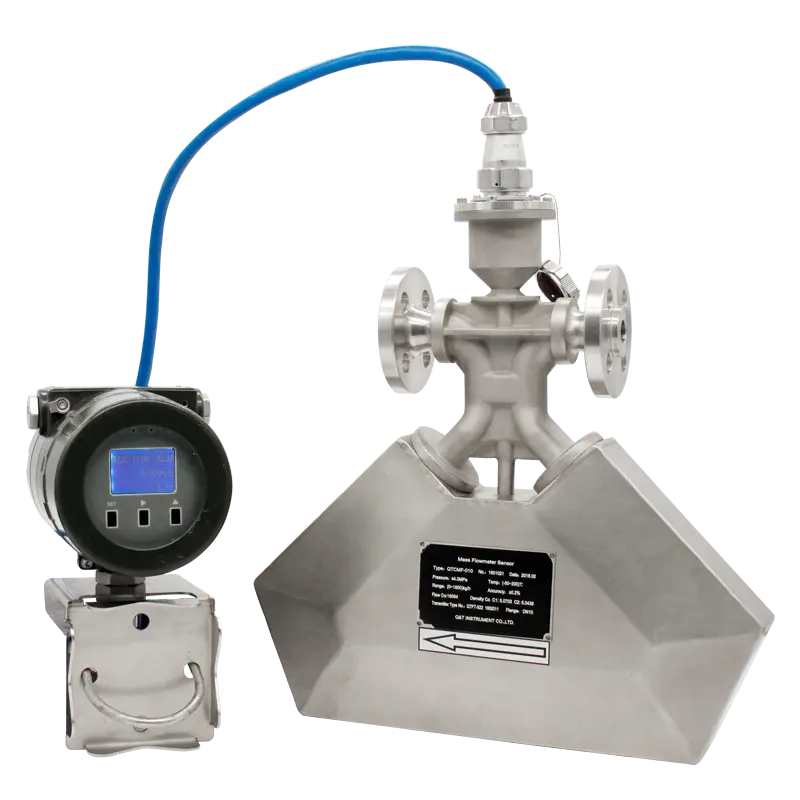

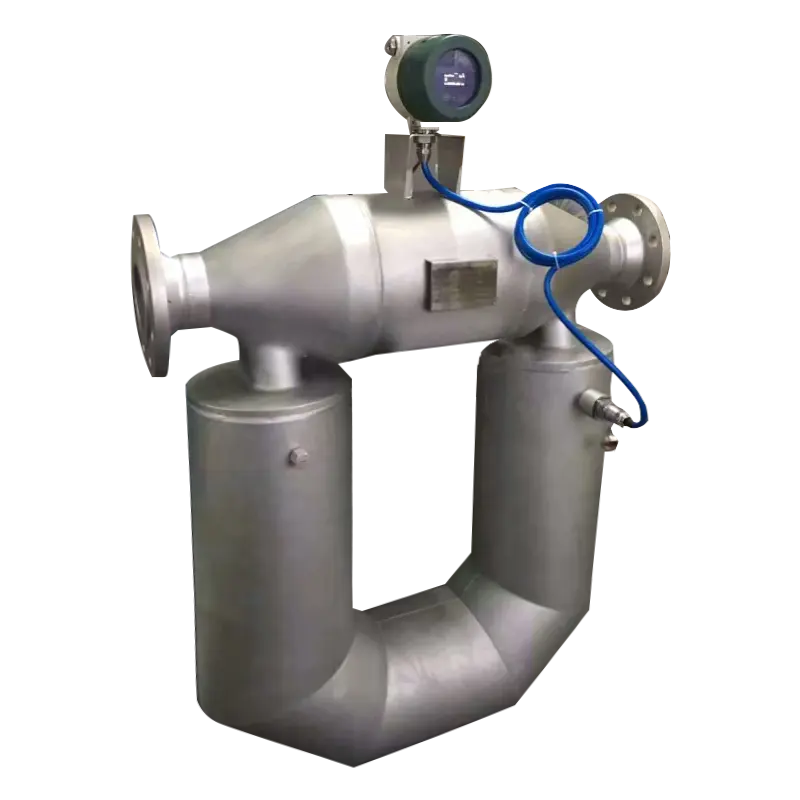

PHCMF Coriolis mass flow meter is designed according to micromotion and the Coriolis principle. It is a leading precision flow and density measurement solution offering the most accurate and repeatable mass flow measurement for virtually any process fluid, with exceptionally low pressure drop.

The Coriolis flow meter worked on the Coriolis effect and was named. Coriolis flow meters are considered to be true mass flow meters because they tend to measure mass flow directly, while other flow meter techniques measure volume flow.

Besides, with the batch controller, it can directly control the valve in two stages. Therefore, Coriolis mass flowmeters are widely used in chemical, pharmaceutical, energy, rubber, paper, food, and other industrial sectors, and are quite suitable for batching, loading, and custody transfer.

Basic Requirements on installation.

(1)Flow direction should be in accordance with the PHCMF sensor flow arrow.

(2)Properly supporting is required for preventing tubes from vibrating.

(3)lf a strong pipeline vibration is inevitable, it is recommended to use a flexible tube to isolate the sensor from the pipe.

(4)Flanges should be kept parallel and their center points should be located on the same axis to avoid subsidiary force generation.

(5)Installation vertically makes the flow from the bottom up when measuring, meanwhile, the meter should not be installed on the top to prevent air from getting trapped inside the tubes

Installation Direction of Mass Flowmeter

In order to ensure the reliability of the measurement, the ways of installation should consider the following factors:

(1)The meter should be installed downward when measuring liquid flow so that air cannot get trapped inside the tubes.

(2)The meter should be installed upward when measuring gas flow so that liquid cannot get trapped inside the tubes.

(3)The meter should be installed sideward when the medium is turbid liquid to avoid particulate matter accumulating in the measuring tube. The flam medium goes from the bottom up through the sensor.

                                                            Flow accuracy
                                                            + or -0.2% Optional + or - 0.1%

                                                            Diameter
                                                            DN3-DN200mm

                                                            Flow repeatability
                                                            + or - 0.1-0.2

                                                            Density measuring
                                                            0.3-3.000g/crm3

                                                            Density accuracy
                                                            + or -0.002g/cm3

Application of Mass Flowmeter

Petroleum, such as crude oil, coal slurry, lubricant, and other fuels.
High-viscosity materials, such as asphalt, heavy oil, and grease;
Suspended and solid particulate matter materials, such as cement slurry and lime slurry;
Easy-to-solidified materials, such as asphalt
Accurate measurement of medium- and high-pressure gases, such as CNC oil and gas
Micro-flow measurements, such as fine chemical and pharmaceutical industries;
Water Treatment
Paper Industry
Food Industry
Chemical Monitoring
Pharmaceutical Industry
Metallurgical Industry
ASET
Petrochemical
Public Drainage

Advantages of Mass Flowmeter

It has high measurement accuracy, standard accuracy of 0.2%; And the measurement is not affected by the physical properties of the medium.
Coriolis-type flow meter provides a direct mass flow measurement without the addition of external measurement instruments. While the volumetric flow rate of the fluid will vary with changes in density, the mass flow rate of fluid is independent of density changes.
There are no moving parts to wear and need to be replaced. These design features reduce the need for routine maintenance.
The Coriolis mass flow meter is insensitive to viscosity, temperature, and pressure.
The Coriolis flow meter can be configured to measure positive or reverse flow
Flow meters are operated by flow characteristics such as turbulence and flow distribution. Therefore, upstream and downstream direct pipe operating requirements and flow regulation requirements are not required.
The Coriolis flow meter does not have any internal obstacles, which may be damaged or blocked by viscous slurry or other types of particulate matter in the flow.
It can take measurements of high-viscosity fluids, such as crude oil, heavy oil, residual oil, and other liquids with higher viscosity.
