Multi-Parameter Water Quality Sonde Probe

(0 reviews)

Get Price

(149) Views

(0) Contacts

$1669.00 - $19999.00 |1 piece/pieces

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(640) Views

(3) Contacts

1. The type of host access sensor is not limited; DO, turbidity, chlorophyll, and blue-green algae sensors are digital sensors, and the interface can be used universally;
but the PH, conductivity, ORP, and ammonia nitrogen-nitrogen ion electrode interfaces cannot be used.
After all the connected sensors are factory-set, unless the DO, turbidity, chlorophyll, and blue-green algae sensors are added. Other parameters couldn't be changed.
2. One-piece multi-parameters can connect up to 4 analog electrodes that cannot be repeated. That is to say, PH, ORP, conductivity (EC), ammonia nitrogen, nitrate nitrogen, fluoride ion, chloride ion electrodes, no more than 4 could be selected
3. So it is better to be confirmed what sensors need to be connected when you select the type.
4. As to salinity, which is calculated by conductivity. (Salinity = 5.572×10^(-4)×Conductivity + 2.02×10^(-9)×Conductivity^2).

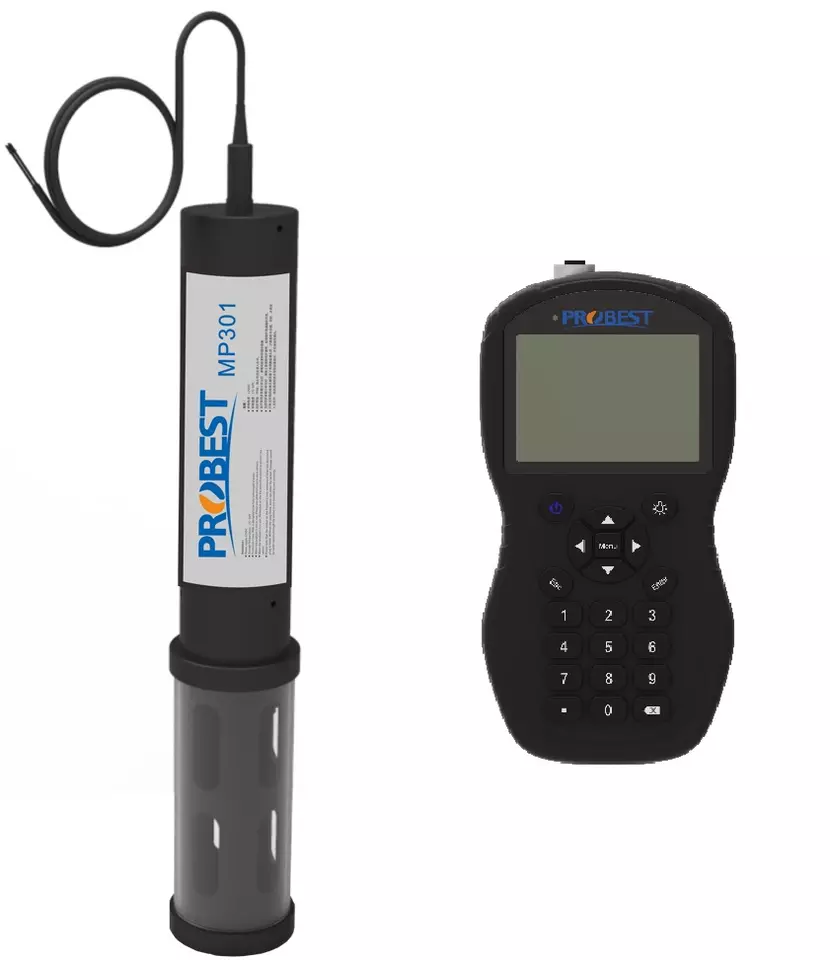

MP301 multi-parameter online analyzer: MP301 multi-parameter online analyzer: suitable for long-term on-line online monitoring, measuring up to 7 parameters simultaneously, including Temperature, Depth, pH, ORP, Conductivity & Salinity & TDS, Turbidity, DO, Chlorophyll, Blue-green algae, Ammonia nitrogen, Nitrate nitrogen, Chloride ions, Fluoride ions.
Software Functions
Operation software of Windows interface has the function of settings, online monitoring, calibration and Historical data download, and convenient and efficient parameters settings. Convenient and efficient calibration functions.
Standard Electrode Parameters

Depth (Pressure)	Principle	Pressure-sensitive Method
	Range	0-61m (Maximum withstand pressure depth: 30M）If with ion electrode, then max is 10M.
	Resolution	2cm
	Accuracy	±0.3%
Temperature	Principle	Thermistor method
	Range	0℃~50℃
	Resolution	0.01℃
	Accuracy	±0.5℃
pH sensor	Principle	Glass electrode method
	Range	0-14 pH
	Resolution	0.01 pH
	Accuracy	±0.1 pH
ORP Sensor	Principle	Glass electrode method
	Range	-1000mV ~+1000mV
	Resolution	1mV
	Accuracy	±5mV
Conductivity sensor	Principle	A pair of platinum gauze electrode
	Range	1us/cm-2000 us/cm（K=1） 100us/cm-100ms/cm（K=10.0）
	Resolution	0.1us/cm~0.01ms/cm（Depending on the range）
	Accuracy	±3%
Turbidity sensor	Principle	Light scattering method
	Range	0-1000NTU
	Resolution	0.1NTU
	Accuracy	± 5% or 0.3NTU, whichever is greater
DO sensor	Principle	Fluorescence
	Range	0 -20 mg/L；0-20 ppm；0-200%
	Resolution	0.1%/0.01mg/l
	Accuracy	±3% or ±0.3 mg/L, whichever is greater

Chlorophyll sensor	Principle	Fluorescence
	Range	0-500 ug/L
	Resolution	0.01 ug/L~0.1 ug/L, Depending on range
	Accuracy	±5% of the signal level corresponding value of 1ppb Rhodamine WT Dye
Blue-green algae sensor	Principle	Fluorescence
	Range	200-300,000cells/mL
	Resolution	25cells/mL
	Accuracy	±10% of the signal level corresponding value of 1ppb Rhodamine WT Dye
Ammonia nitrogen Sensor	Principle	Ion selection
	Range	0.1~100mg/L-N
	Resolution	0.01mg/L-N
	Accuracy	±10% or ±2mg/L
Nitrate nitrogen Sensor	Principle	Ion selection
	Range	0.5~100mg/L-N
	Resolution	0.01mg/L-N
	Accuracy	±10% or ±2mg/L
Chloride Sensor	Principle	Ion selection
	Range	3~1000mg/L
	Resolution	0.01~1mg/L
	Accuracy	±10% or ±2mg/L
Fluoride Sensor	Principle	Ion selection
	Range	0.5~1000mg/L
	Resolution	0.01~1mg/L
	Accuracy	±10% or ±2mg/L

                                                            Power Supply
                                                            12VDC

                                                            Battery capacity
                                                            8 sections, 8C, 3.6V lithium battery

                                                            Measuring Temperature
                                                            0~45℃   （non-freezing）

                                                            Power Dissipation
                                                            3 W

                                                            Storage Temperature
                                                            0~50℃  （non-freezing）

                                                            Communication protocol
                                                            MODBUS  RS485

                                                            Protection Class
                                                            IP68

                                                            Size
                                                            Diameter 90*Length 640.5mm

                                                            Weight
                                                            3KG

                                                            Maximum withstand   pressure depth
                                                            30 M

Multi-Parameter water quality online monitoring of rivers, lakes, and reservoirs.
Water quality online monitoring of drinking water source, groundwater, and seawater

Sensor RS485 A/B terminal is connected to power supply protection.
An optional self-cleaning system allows the product to obtain accurate data for a long time.
The electrode can be replaced directly in the field, and the maintenance is simple and fast.
Sensor power supply positive and negative reverse connection protection.

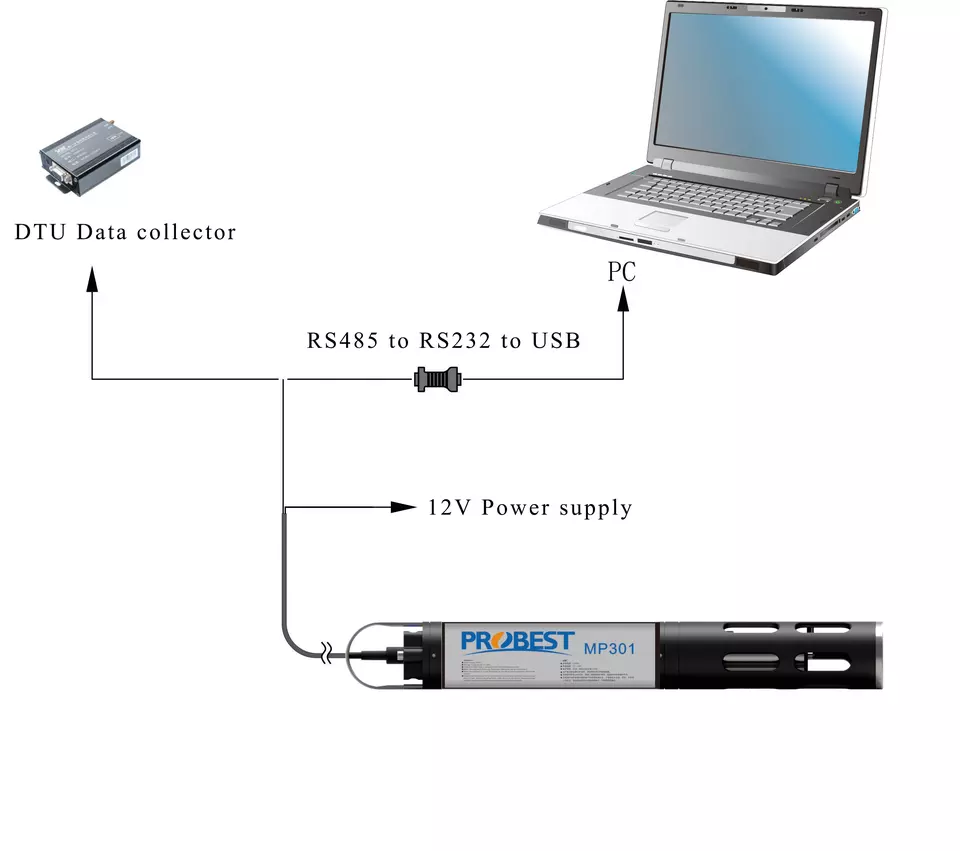

Standard Modbus RS-485 digital signal output, can be connected with third-party data loggers or remote devices for integration and networking;
With built-in battery, optional battery to achieve battery power in a short time; purchase in your local mark
