Tube Settlers

(0 reviews)

Get Price

(137) Views

(0) Contacts

1 - 299 cubic meters

$35.20

300 - 499 cubic meters

$32.40

>= 500 cubic meters

$27.20

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(967) Views

(5) Contacts

High-Quality JUNTAI UV TUBE SETTLER
1. After the UV Tube Settlers are installed, Don’t need to do anything, it is stable and easy operation daily
2.Juntai UV Tube Settlers can be used under the water for 5 to 10 years, if there is no straight sunlight, they can be a longer life.

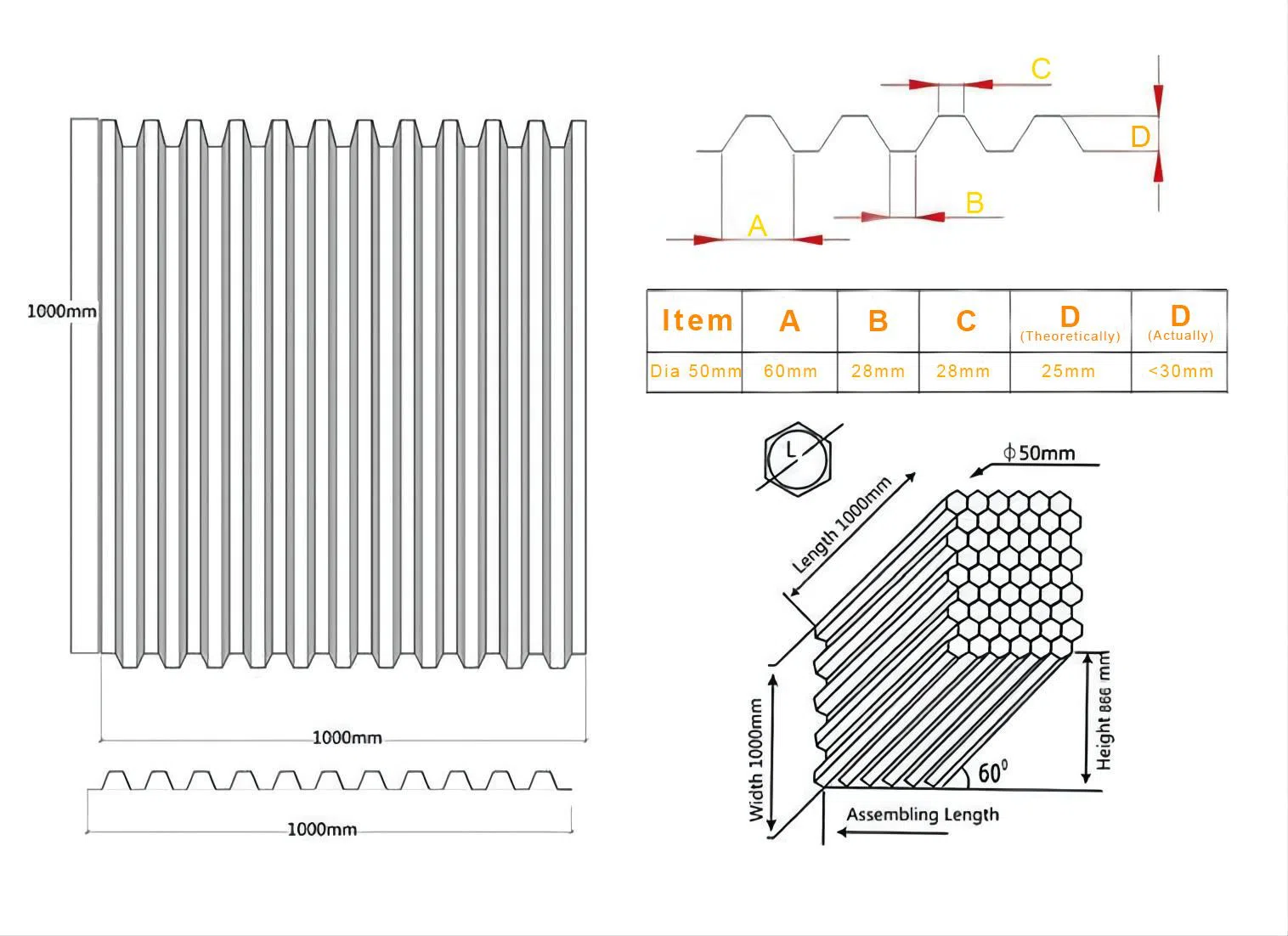

Product Parameters:

Name：	TL25PP,TL35PP,TL50PP,TL80PP	Material：	100% New PP with UV protector
Diameter：	50 mm	Resistance :	UV, Chloride, Acid, Oil
Color :	Blue or white	Gravity:	0.92g/cm3
Piece Per CBM：	32 piece	Surface area:	more than 95 m2/m3
Block size:	1mX 1mX height(0.6m to 1.2m)	Continue operation temperature:	70 degree
Sedimentation Area:	9m2/m3	Max operation temperature:	80 degree( short time)
Assembled :	by plastic welded gun on site	Slope:	60°
Application:	Clarifier or Sedimentation for drink water, municipal and industrial wastewater treatment
Service Life:	5 to 10 years, Very robust and long-lasting + simplest support system
Certificate:	FDA standard with SGS certificate, Fulfills all drinking water requirements eg NSF, KTW, ACS, DWI 31

Juntai Tube Settler 13 Certificates
1. Juntai Tube Settlers SGS FDA(For Drink Water)
2. Juntai Tube Settlers SGS -RoHS
3. Juntai Tube Settlers Free Phthalate Certificate
4. Juntai SGS Density VOC
5. Juntai Tube Settler Material Food Package
6. Juntai Tube Settlers MSDS polypropylene
7. Juntai Tube Settlers UV inhibitor certificate
8. Juntai Tube Settlers Quality Guarantee Agreement
9. Tube Settles Test Data
10. Specs of PP for tube settlers
11. Tube settler test report
12. Juntai Tube Settlers Material Guarantee
13. The Delivery Time Warranty
JUNTAI HEXAGON HONEYCOMB TUBE SETTLER
Juntai tube settler systems meet the needs of any treatment facility.
1. The strongest Hexagon honeycomb mold tube Settlers increase allowable flow capacity from the increased settling area and add the solids removal rate in Sedimentation tanks.
2. The Hexagon Honeycomb Lamella tube is the stable and strongest mold with the biggest settling area which make the settling rate about 4 to 6 times as before.
3. By installing and using the Juntai tube settlers, we can increase the flow and performance of existing water treatment plants and wastewater treatment plants, and at the same time, it can down the operating costs with less filter backwashing.
4. New installations with tube settlers have smaller footprints and can accommodate greater flow in the same area, the Hexagon honeycomb tube settlers
can be added to up flow or solids contact sedimentation to improve performance and handle flow increases.
5. Unlike plate settlers, JUNTAI tube settler modules can be trimmed to exact specifications for full basin coverage.
Juntai Tube Settler Systems
Juntai Tube settler systems are an inexpensive solution for drinking water and wastewater plants to increase treatment capacity, reduce new installation footprints, improve effluent water quality, and reduce operating costs.

Stronger Hexagon Honeycomb Modules.

Robust PP tube settler modules can be easily supported with minimal structures that often incorporate effluent troughs and baffles.

Save Assembled Labour easily on the site.

Juntai Tube settlers can be easily assembled on-site, and there is only a need for two workers in 6 hours to finish 100CBM into the settler block. And a small number of loose pieces are reserved for installation use later.
Quickly Install it into the tank
Assemble the Tube settlers blocks from left to right on the upper part of the Shaft Support. Keep the Angle of 60° unchanged all the time, each unit should be properly pressed when assembling sequentially. If the size is not exactly appropriate when assembling to the right side, it is necessary to use loose Tube settlers according to the size and then assemble until it is all in place. There are about two workers can install 200 CBM in a working day
Robust in operation and maintenance
After the tube settlers are installed, Don’t need to do anything, it is stable and easy operation daily.
Longer Service Life
Juntai tube settlers can be used under the water for 5 to 10 years, if there is no straight sunlight, they can be longer life

Juntai Tube Settler Detail Sheet

Material:	100% New PP with UV protector
Applications:	WTP/WWTP
Color:	Blue Color
Molding method:	Electric soldering iron
Installation angle:	60°
Service life:	5 to 10 years
Usage frequency:	Commonly used
Operating temperature:	-10～70℃
Proportion g/cm3:	0.92
Features:	Flexible and easy to float
Produce way:	Factory prefab
Standard packaging:	Packing strap/wooden box
Special specifications:	Customer-defined

Juntai Tube Settlers compare to others from China market：
1. We use 100% Virgin PP
2. We use PP with UV protectors
3. We can use it for 5 to 10 years
4. Can be used for drinking water, with an SGS certificate
5. Installation support and welding support
6. Stronger with wall thickness up to 1.0mm
Other Tube settlers in China Market
1. Some filler will be added to the material
2. Only PP material, no UV
3. Service Only 3 to 5 years
4. No certificate, can not sure safe for drink water
5. Some have welded problems because not new or virgin material
How to perform the scalping operation of the Juntai lamella clarifier?
1. Open the packing of the slant pipe filler, put the first slant pipe filler flat on the ground, take the second slant pipe filler on top of the first piece of filler, and check the incision of the slant pipe filler, must ensure 60 angles, and is a hexagonal honeycomb, after checking is correct, start to iron the bonding point;
2. In the hexagonal honeycomb both ends of all the plane joints must be connected, both sides of the two pieces of plane seam require a frequency connection of more than four points, in the middle of the two pieces of slant pipe filler plane requires welding more than four points, to ensure that the welding is solid;
3. Pay attention to the rhythm of operation when hot jointing, and control the temperature, hot jointing points shall not be omitted;
4. Each slant pipe filler package as a separate ironing unit, ironing completed in the field - neatly stacked:
5. Midway break must cut off the power supply of the soldering iron, and be placed safely;

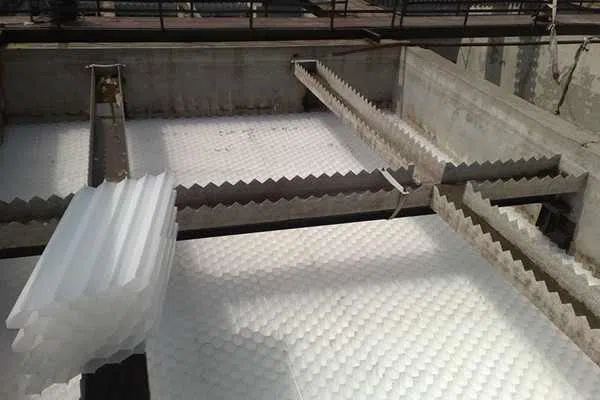

Installation method of tube Settlers:
1. Install mud discharge pipe at the bottom of the sedimentation tank
The installation sequence of the Tube settlers sedimentation tank generally starts from the bottom, and the installation of the mud drainage pipe system at the bottom should be completed first. Ensure that the opening of the mud drainage Tube meets the design requirements and is fixed firmly, and check without error before entering the next installation process.
2. Complete the installation of the Tube Block
According to the construction drawing of the settlers support installation for the sedimentation tank, the Settlers support should be installed in place first, check that all welding joints are firm and the strength of the support is enough to bear the weight of the tube settlers,
and complete anti-corrosion treatment on the surface of the support;
3. Complete the ironing of the tube settlers to block
According to the ironing method of tube settlers, each sheet is packaged as a separate ironing unit. After the ironing of a block is completed, it is 1m2. After the ironing, it is stacked neatly on the field (a small number of loose pieces are reserved for future use).
4, Tube Settlers install into the Sedimentation
Assemble the Tube Block from left to right on the upper part of the Sedimentation tank. Keep the Angle of 60° unchanged all the time, each block should be properly pressed when assembling sequentially. If the size is not exactly appropriate when assembling to the right side, it is necessary to use loose sheet Tube Settlers according to the size and then assemble until it is all in place.
5. The upper part of the inclined tube Settlers is fixed
Since the proportion of Tube settlers is 0.90, slightly less than water after Tube settlers are assembled in place in the tank, 10mm round steel should be pulled above the Tube Settlers from left to right for reinforcement (two round steel should pass through the upper part of each unit Block ), and both ends of the round steel should be fixed reliably on the sedimentation tank wall. After the installation of round steel can be very good to prevent the Tube Settlers in the early use of the possible loose floating phenomenon, round steel with epoxy coal asphalt anti-corrosion.
Juntai Tube Settler Application Process
1. Sedimentation for potable water treatment plant
2. Sedimentation for sewage (wastewater) treatment plant
3. Advanced sewage (wastewater) treatment plant

JUNTAI TUBE SETTLER Fields Of Application
1. Sedimentation for Drinking water Purification
2. TSS removal and particle separation
3. Upgrade of existing sedimentation tanks
4. Cleaning wash water recycled from vehicle wash systems at quarries and construction sites.
5. Tertiary or secondary clarification for municipal WWTP
6. Wastewater treatment, surface water treatment, and solids/liquid separation.
7. Examples of process wastewater applications:
Desalination
1. Food and beverages
2. Heavy metal Waste Water
3. Pulp and paper
4. Petrochemical and Process water
5. Pharmaceutical and Chemical
6. Steel, Machinery, Mining, and more

Juntai Hexagon Honeycomb Tube Settlers Advantage（compare to other kinds of locked or glued Settlers）
1. Resistant to impact
2. Resistant to sunlight with UV Protector
3. Dust and germs proof
4. Made from premium material meeting high-quality requirements（ The Highest quality Tube Settlers In China）
5. Shipped by sheets, save the freight of transporting
6. Store with Pallets, Save the cost and place the store
7. Easy welded into a block on site
8. Easy install into Sedimentation Tank ( save the cost and labor for Assemble
9. Longer Service Life of 5 to 10 years
10. Juntai Offers the Four Guarantee for the quality control
11. Worldwide delivery thanks to easy and reliable on-site module-assembly
12. Friedly material can be drinking water.
13. We have many national and international references ( Used in municipal water treatment plants)
Juntai Tube Settlers Advantage (comparing other items in China Market)
1. New PP Without any Recycle material
2. The cutting angle is neat and flat, making the tube settlers more stable and firm
3. Packed in a black bag for UV protection
4. Juntai Guarantee 100% thickness
5. No sand holes or bubble holes in the sheet
6. Easy to weld, high strength, save labor cost
7. Glossy surface, high quality
8. Light Blue color, Make the water in the settling tank clear.
9. Easy maintenance
Domestic and International Quality Comparison
Juntai Tube settlers compare to other Tube settlers

Easy to weld on site, two workers can weld up to 50 CBM per day.
Needs to be locked on piece by piece, with a lot of labor on site
A hexagonal shape is more stable than other shapes
Not easy to replace
Small area, easy to de-clay
Higher cost
Very strong and long-lasting + simplest support system
Not easy to install on site
