Home / Treatment Equipment / Mixers / MBBR Mixer
MBBR Mixer
(0 reviews)
200 USD
(218) Views
(0) Contacts

A submersible diving mixer, which is regarded as a key piece of equipment in the wastewater treatment process, helps make full mixing of liquid &solid ahead of biochemical treatment. It consists of a submersible motor, impeller, and installation system. According to different transmission modes.

1 piece/piece
$200.00 - $800.00

Contact Company





Hangzhou Juntai Plastic Products Co., Ltd
Hangzhou, China
(982) Views
(5) Contacts

1. Low-speed push flow series products use cycloid reducers, equipped with small power, low speed, large impeller diameter, and wide service area. The impeller is made of polyurethane material and aluminum alloy, with high strength and corrosion resistance, which can push the flow and create water flow in addition to the function of mixing.
2. The motor winding of the submersible mixer is insulated with class F and the protection level is IP68. When used in the aeration system of the sewage plant, the energy consumption of the system can be greatly reduced and the oxygen filling volume can be significantly increased, which can effectively prevent sedimentation.

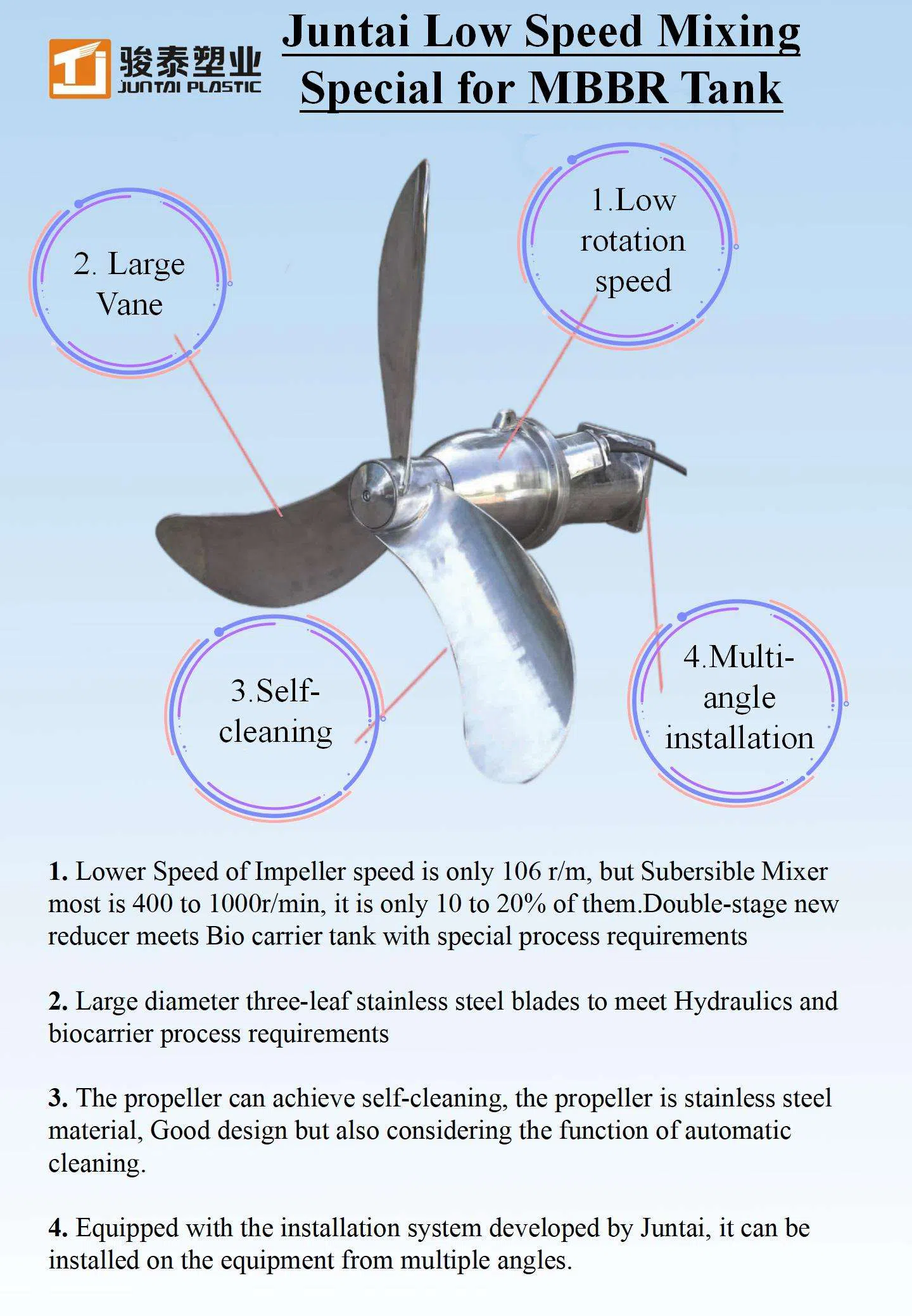

Juntai Low-Speed Mixing Special for MBBR Tank
Juntai MBBR Mixer is specially developed for the gentle mixing of the liquid plastic carrier elements (bio media) in MBBR tanks.
The liquid media used in the MBBR processes in modern sewage treatment plants is usually made of HDPE like Juntai MBBR Media.
1. Lower Speed Impeller speed is only 106 r/m, but Submersible Mixer most is 400 to 1000r/min, it is only 10 to 20% of them. Double-stage new reducer meets Bio carrier tank with special process requirements
2. Large diameter three-leaf stainless steel blades to meet Hydraulics and bio carrier process requirements
3. The propeller can achieve self-cleaning, the propeller is stainless steel material, Good design but also considers the function of automatic cleaning.
4. Equipped with the installation system developed by Juntai, it can be installed on the equipment from multiple angles.
Low-Speed Mixer Performance Parameters
Juntai MBBR Mixers are designed in such a way that they have an exceptionally large, inner surface area on which the bacteria can grow without being knocked off or otherwise destroyed when they rotate and hit each other.
Jutnai MBBR Mixer and Submersible Mixer are used in the following conditions:
1. The highest medium temperature does not exceed 40℃.
2. The PH value is between 5 and 9.
3. The density of liquid shall not exceed 1.15 kg/m3.
4. In Long-term diving operations, the diving depth is generally not more than 20m.

Model
Power （KW）ElectrodeRated current （A）Speed （r/min）Quantity （set）Diameter （mm）Threst （N）Weight （Kg）
JUNTAIMIXER3/4346.64202400140075
JUNTAIMIXER4/4448.64202550180085
JUNTAIMIXER5.5/45.5411.84202550210090
JUNTAIMIXER7.5/47.5415.542026202600100
JUNTAIMIXER11/41142442027503100120
JUNTAIMIXER15/41543342028003500150


1. MBBR reactors
2. Fish ensilage
3. Acidic liquids
4. Liquids with a high chloride content, Such as at
5. Desalination plants
6. Anoxic and anaerobic tanks
7. SBR reactors
8. Sludge tanks

Juntai Submersible Mixer Feature:
1. Juntai submersible mixing compact structure, small volume, lightweight, simple operation and maintenance, easy installation and maintenance, long service life.
2. The structure of the impeller has the optimum hydraulic design, and work efficiency is high after the swept blade has a self-cleaning function that can prevent sundry winding, and jam.
3. mixed with aeration system use can make a significant reduction in energy consumption, obviously improve the oxygen filling, and effectively prevent precipitation.
4. motor winding insulation class is F, protection grade IP68, chooses import disposable lubrication maintenance free high-quality bearing, has the oil chamber leak detection and exclusive patent motor winding overheating protection and condensation prevention device, making the motor work more safety and reliable.
5. Two independent mechanical seals, mechanical seal friction pay for corrosion-resistant material or carbide carbon, silicon, and fasteners are stainless steel material.
6. The unique design of the cable seal ruled out the cable leakage hidden trouble.
7. standard parts adopt why separation technology, can effectively prevent corrosion.
